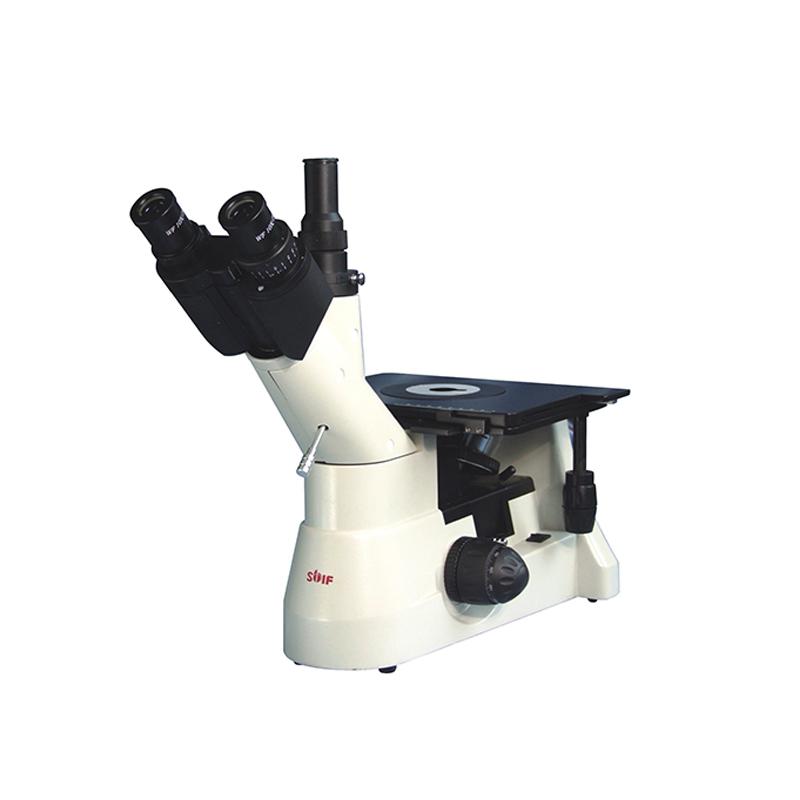

SHANGGUANG 4XC-I Trinocular Inverted Metallurgical Microscopy
SHANGGUANG 4XC-I trinocular inverted Metallurgical Microscopy can be used to identify and analyze the internal structure of metals, rocks and mines, or to observe the surface properties of materials. It is widely used in factories, laboratories, teaching and scientific fields, with a Total Magnification of 40X-1250X.
ShangGuangLiuChang
4XC-I
-
TEELEN XP-200B Trinocular Simple Polarizing Microscope
Login -
Anyty 3R-WM21720 Digital Microscope with LED Light
$ 299.00 -
Varnishing BM-37XCD Computer Inverted Biological Microscope
$ 3638.00 -
TEELEN 4XCE Computerized Trinocular Inverted Metallurgical Microscopy
Login -
TEELEN XSP-1CA Monocular Biological Microscope
Login
Introduction
The new trinocular metallographic microscope 4XC-I has novel design, beautiful shape, flexible operation, clear imaging and polarized light! Used for the identification and analysis of the internal structure and structure of metals and rock mines, or for observing the surface characteristics of materials, such as scratches, cracks, uniformity of spraying, etc. It is widely used in factories, laboratories and in teaching and science. Total magnification: 40X-1250X
ShangGuangLiuChang 4XC-I Trinocular Inverted Metallurgical MicroscopySpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X/Φ18、WF12.5X/Φ15 |
| Avoiding color difference objective | 4X/0.1, 10X/0.25, 40X/0.65 (semi-flat field spring), 100X/1.25 (oil, spring) |
| Total Magnification | 40X~1250X |
| trinocular observation head | Hinge 45 ° tilt |
| converter | four holes |
| Coarse fine-tuning focusing range | 15Mm fretting grid value: 2um coarse fretting coaxial focusing |
| stage | Double-decked mechanical, size 160X160mm |
| Stage movement range | Moving range 30X30mm, one piece each of φ 10/20mm slides |
| pupil distance | 55-75mm |
| Mechanical barrel length | 160mm |
| Polarizing device | With a simple polarizing device (the polarizing plate is installed on the instrument) |
| lighting system | Adjustable luminance, with variable light bar, halogen tungsten bulb 6V20W |
| Weight | 8kg |
| Dimension | 21*35*43cm |
| Packaging Dimensions | 29*43*59cm |
| Gross Weight | 9.5kg |
ShangGuangLiuChang 4XC-I Trinocular Inverted Metallurgical Microscopy Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
