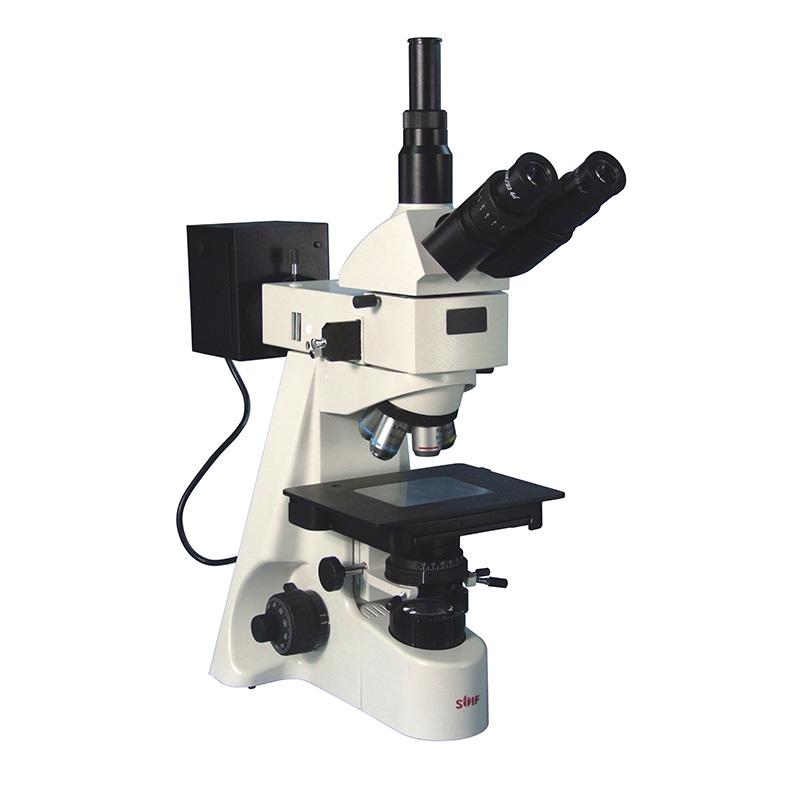

SHANGGUANG 53XB Trinocular Upright Metallurgical Microscopy
SHANGGUANG 53XB trinocular upright Metallurgical Microscopy uses two forms of illumination, reflection and transmission, and is equipped with an epipolarizing device, which can be used for metallography, minerals, crystals, microelectronics, etc. for observation and analysis. It is an option for factories, universities, scientific research institutions and electronics industry departments.
ShangGuangLiuChang
53XB
Introduction
The instrument can be used for observation and analysis research in metallographic, minerals, crystals, microelectronics, etc., and is optional for factories, colleges and universities, scientific research institutions and electronic industry departments. pickTwo forms of illumination, reflection and transmission, are used, and are equipped with epipolarization devices. Brightfield and polarized light observation can be performed under reflected light illumination, and brightfield observation can be performed under transmitted light illumination.The stable, high-quality optical system meets your high requirements for image quality, the wide body reflects the overall rigidity, and the T-shaped design provides you with a stable base. HumaneThe design, easy operation frees you from the stress of heavy work, so that you can devote all your energy to experimentation.
ShangGuangLiuChang 53XB Trinocular Upright Metallurgical MicroscopySpecifications
| LIST | VALUE |
|---|---|
| Total Magnification | 40X~400X |
| Flat field eyepiece | WF10X/ 22mm |
| Infinity metallographic objective (magnification/numerical aperture/working distance) | 4X/0.10/29.4、10X/0.25/16、20X/0.40/10.6、40X/0.60/5.4 |
| observation head | Ammonium chain type, 30 ° tilt (55mm~ 75mm) |
| Objective lens converter | four holes |
| Mobile station | Double-decked platform, size 180mm × 150mm |
| Movement range | 75mm×50mm |
| Focusing system | Fretting grid value 0.002mm, coarse fretting coaxial focusing, using gear strip transmission mechanism |
| condenser | N.A.1.25 Abbe condenser with variable light bar and color filter |
| Color filter | Insert type (blue, green, matte) |
| Polarizing device | The polarizer can be rotated 360 °; both the polarizer and the polarizer can be removed from the optical path |
| epiphany Kohler illumination | Aperture bar and variable field of view bar |
| Transmissive Illumination Light source | 12V/30W halogen lamp, adjustable luminance |
ShangGuangLiuChang 53XB Trinocular Upright Metallurgical Microscopy Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
