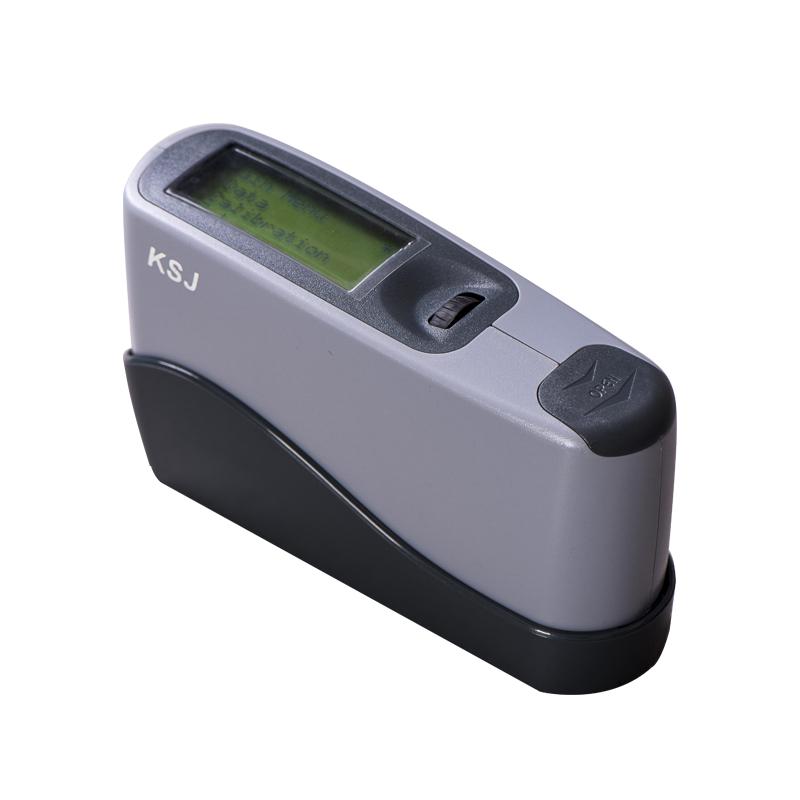

KSJ MG4-F3 Glossiness Meter 45 ° Measurement range 0.0~800GU
KSJ MG4-F3 Glossiness Meter Measurement angle 45 °, Measurement range 0.0~800GU, Measuring Area 9 * 12mm, measurement port size 12 * 28mm, MG4-F3 Glossiness Meter is mainly used for plastic, porcelain, enamel and other materials and products surface 45 ° Gloss measurement.
KSJ-
IWAVE WG45 Film Plastic Glossmeter 45 ° Single Angle Gloss Meter Film industry specific
$ 459.00 -
Coated paper Glossmeter JFL-BZ75 (paper smart) JFL Coated paper Glossiness testing instrument
$ 441.00 -
JND XP6 ultra-high precision Glossiness Meter, small aperture measurement
$ 382.00 -
Ceramic Glossmeter JFL-B45 (Ceramic, Plastic film common type) JFL
$ 400.00 -
Netherlands TQC GL0030 Gloss Meter 20 °/60 °/85 ° Three-angle high-precision Glossiness Testing Instrument
$ 5625.00
Scope of application
This type of instrument is mainly used for 45° light on the surface of plastics, porcelain, enamel, enamel and other materials and productsZe measurements.
Introduction
Applicable standard: ASTM C346
Boot self-calibration and self-diagnosis, intelligent design, and the accompanying software is very intimate;
Massive data storage, viewing, uploading, and exporting are flexible and convenient;
The menu content of the machine is complete, easy to operate, and the function is customized;
Streamlined design, multiple measurement angles, including reflectivity, to achieve one-click measurement;
The surface of the metal base is hardened and not deformed;
Using a 5# alkaline battery, 10,000 measurements can be completed continuously;
Adhering to the traditional advantages of KSJ's accurate measurement, stable measurement, small inter-station difference, and good mutual comparison;
The old manufacturer, the same two-year warranty for export and domestic (CN) sales, after-sales guarantee, warranty, maintenance, calibration are assured!
KSJ MG4-F3 Glossiness MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement angle | 45° |
| Measurement range | 0.0~800GU |
| Repeatability | 0~119.9GU:≤0.2GU;120~800GU:≤0.2% |
| reproducibility | 0.5GU|0.5% |
| error of indication | 0~119.9GU:≤1.5GU;120~800GU:≤1.5% |
| Graduation | 0.1GU|1GU |
| Zero Error | ≤0.2 |
| Measuring Area | 9*12mm |
| Measurement port size | 12*28mm |
| Light source | LED |
| Dimension | 155X48x75mm (without base) |
| Weight | 400g |
| Power Supply | One AA (or LR6) alkaline dry or rechargeable battery |
| Power life | One alkaline battery can support more than 15,000 measurements |
| Operating temperature | 5~45℃ |
| Operating humidity | Less than 85% RH, no condensation |
| Storage temperature | -10~60℃ |
KSJ MG4-F3 Glossiness Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
