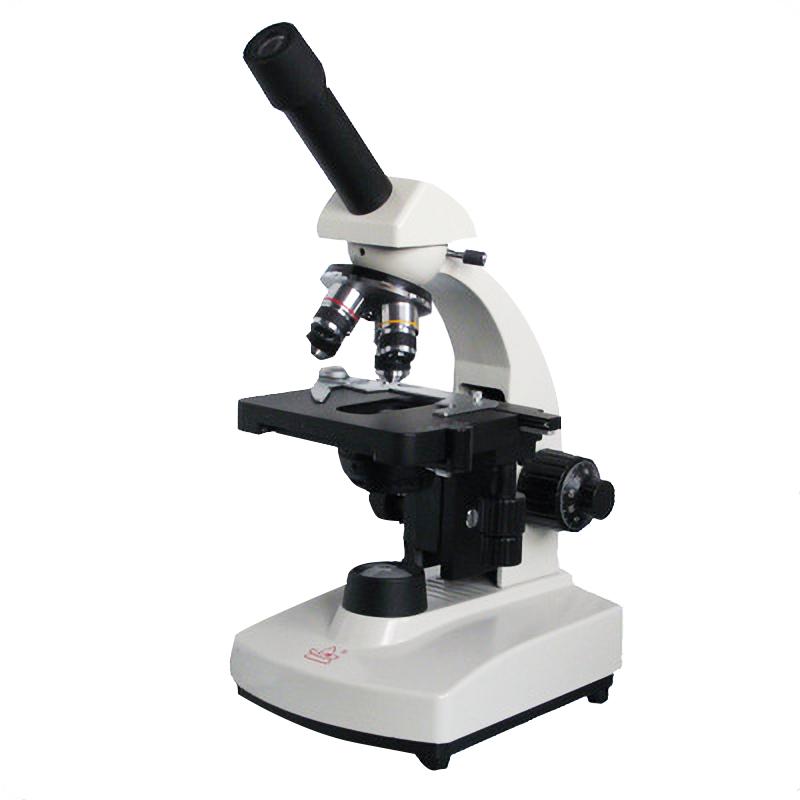

ShangGuang XSP-1C Biological Microscope Monocular 4 Objective 1600X Electric Light Source
Monocular, four objectives, 1600X, electric light source
ShangGuangLiuChang
XSP-1C
The monocular biological microscope XSP-1C has the advantages of complete functions, clear imaging, and high cost performance. It is suitable for small hospitals to do the three routine tests of the human body and small units such as agriculture, forestry, fishery and aquaculture to do analysis tests. Total magnification: 40-1000X
Functions and Features
1. The old "glazing" traditional model has stable quality and high cost performance.
2. The adjustable Abbe condenser is adopted, which has a large adjustment range of focusing and good contrast.
3. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.
4. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.
optional parts
| name | Specifications |
| Plan eyepiece | WF16X |
| Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| objective lens | Achromatic objectives: 20X, 60X, 80X, 100X (dry) |
| ruler | Objective micrometer 0.01mm |
| Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| Camera | Electronic eyepiece 350,000, 1.3 million, 2 million, 3.2 million, 5 million (pixels) |
| It has the functions of single sheet, timing, and continuous image acquisition, display scale, measurement, etc., and can be connected to multiple output methods such as multimedia, printing, and EMAIL. |
ShangGuangLiuChang XSP-1C MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X / f20 |
| Infinity objective | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total magnification | 40X~1000X |
| observation head | Trinocular, hinged 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (inward ball positioning) |
| Coarse fine-tuning focus range | 25mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit |
| stage | Double-layer mechanical type, size 153X135mm Moving range 80X75mm Vernier grid value 0.1mm |
| Mechanical barrel length | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down) |
| lighting | 220V Kohler lighting brightness adjustable, tungsten halogen bulb 12V30W |
| Instrument Weight | Net Weight 6.9kg Gross Weight 9.4kg |
| Instrument size | 21X27X40cm |
| Packaging Dimensions | 30X36.5X58cm |
ShangGuangLiuChang XSP-1C Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
