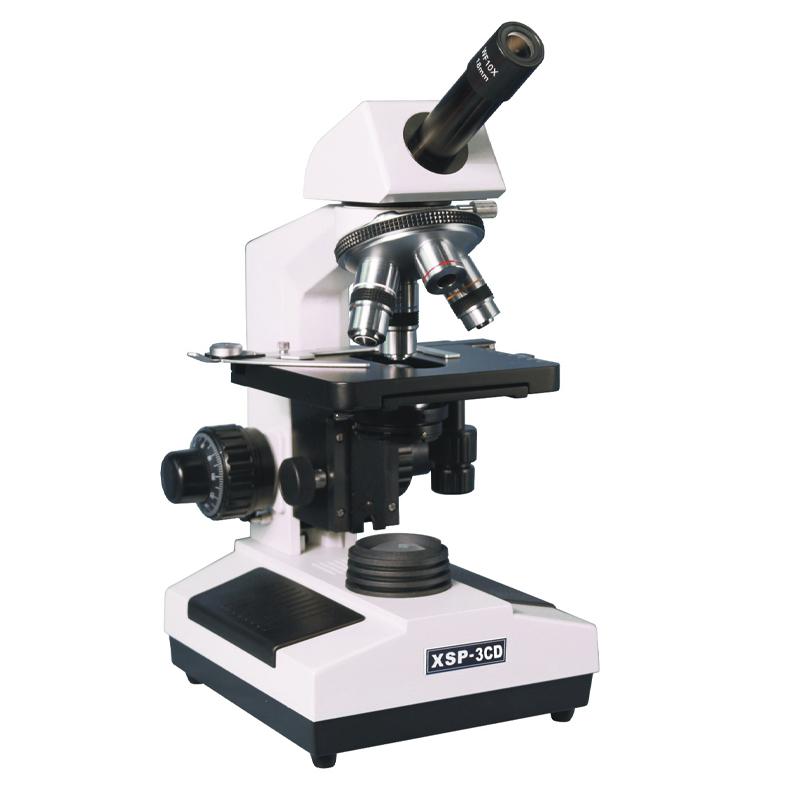

ShangGuang Six Factory XSP-3CD Microscope
Monocular, four objectives, 1600X, electric light source
ShangGuangLiuChangIntroduction
The series of products are based on the optimization technology and combined design of the professional production of optical instruments in the past 50 years. The optical system used in this instrument is of superior quality; the discrimination rate is high; the imaging is clear; the field of view is large and flat. It can flexibly provide different configurations according to the needs of different users, has excellent flexibility and interchangeability, and can be widely used in research work such as biology, bacteriology, histology, and medicinal chemistry. It is suitable for scientific research units, colleges and universities, industrial and mining enterprises, hospitals, medical and health, environmental protection and other industries.
ShangGuangLiuChang XSP-3CD MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Objective for eliminating color difference | 4X / 0.10 Eh 10X / 0.25 W 40X / 0.65 W 100X / 1.25 |
| Flat field eyepiece | 10X / f18 ・ 16X / f11 |
| observation head | Dumpling chain binocular tube 30 ° tilt |
| Inclined tube auxiliary lens coefficient | 1X |
| condenser | 1.25NA, Abbe condenser with variable light bar and color filter |
| Total magnification | 40X~1600X |
| Focusing range | 30 mm; fretting grid value 0.002 mm |
| Movement range | Horizontal 70 mm, vertical 50 mm |
| Pupil distance adjustment range | 55-75 mm |
| Mechanical barrel length | 160 mm |
| Tungsten Halogen Bulb | 6V/20VA |
| light source | 220V electric light source brightness adjustable |
ShangGuangLiuChang XSP-3CD Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
