Introduction
Binocular biological microscope XSP-2C, with complete functions and clear images, is widely used in small hospitals for the three major routine tests of the human body, as well as small units such as agriculture, forestry, fishery, and aquaculture for analysis and tests! Total magnification: 40X-1600X
Functions and Features
1. The old "glazing" traditional model has stable quality and high cost performance.
2. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.
3. The adjustable Abbe condenser lens is adopted, which has a large focusing adjustment range and good contrast.
4. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.

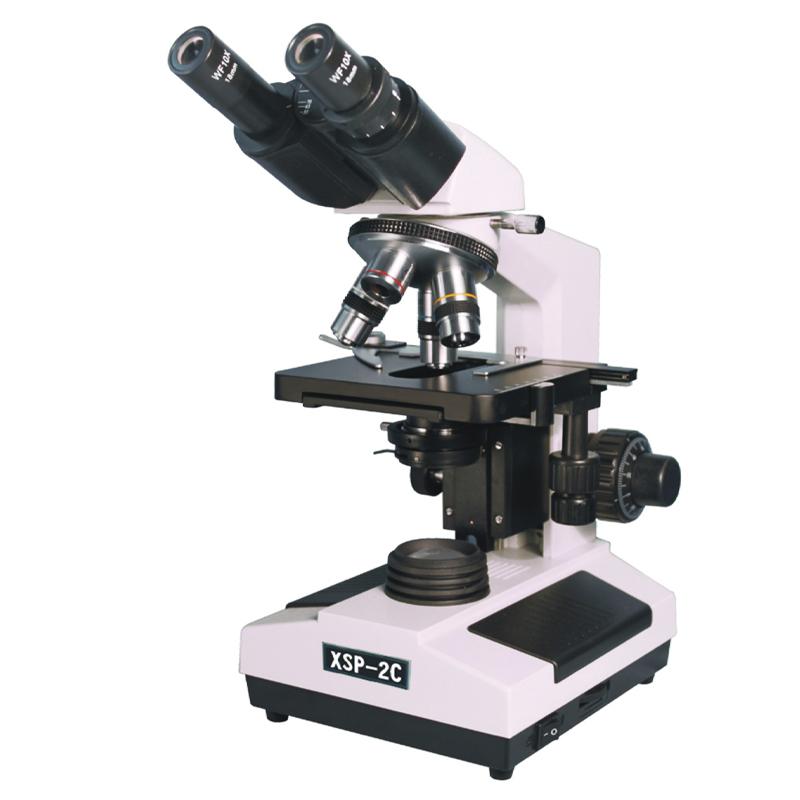

ShangGuangLiuChang XSP-2C MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X / f18 ・ WF16X / f11 |
| Objective for eliminating color difference | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total magnification | 40X~1600X |
| Binocular observation head | Hinged 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (external ball positioning) |
| Coarse fine-tuning focus range | 25mm fretting grid value: 2um fretting focus, coarse elastic adjustable, with locking and limit |
| stage | Double-layer mechanical type, size 140X130mm Moving range 76X50mm Vernier grid value 0.1mm |
| Mechanical barrel length: | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down) |
| Lighting: | Brightness adjustable, tungsten halogen bulb 6V20W |
ShangGuangLiuChang XSP-2C Microscope Packing list
Microscope rack X1, binocular lens barrel X1, color difference objective 4X, 10X, 40X, 100X (oil) each X1, flat field eyepiece 10X, 16X each X1, blue filter X1, oil immersion for objective lens X1, spare tungsten halogen lamp 6V/20WX1, spare fuse X1, power cord X1, product manual X1, product packing list X1, product certificate X1, product warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
