Introduction
XSP-2CA biological microscope can be widely used in biology, bacteriology, histology, medicinal chemistry and other research work, it can be used for clinical trials in medical treatment, and can be used for teaching in school laboratories.
The instrument adopts a liftable Abbe condenser lens group, which makes the converging light adjustment range larger. The planetary coaxial coarse and fine focus adjustment device makes the focus comfortable and stable as well as fine and fine adjustment;
The double-layer mechanical mobile platform with reading scales, and its coaxial vertical and horizontal adjustment handwheels make the operation easier.

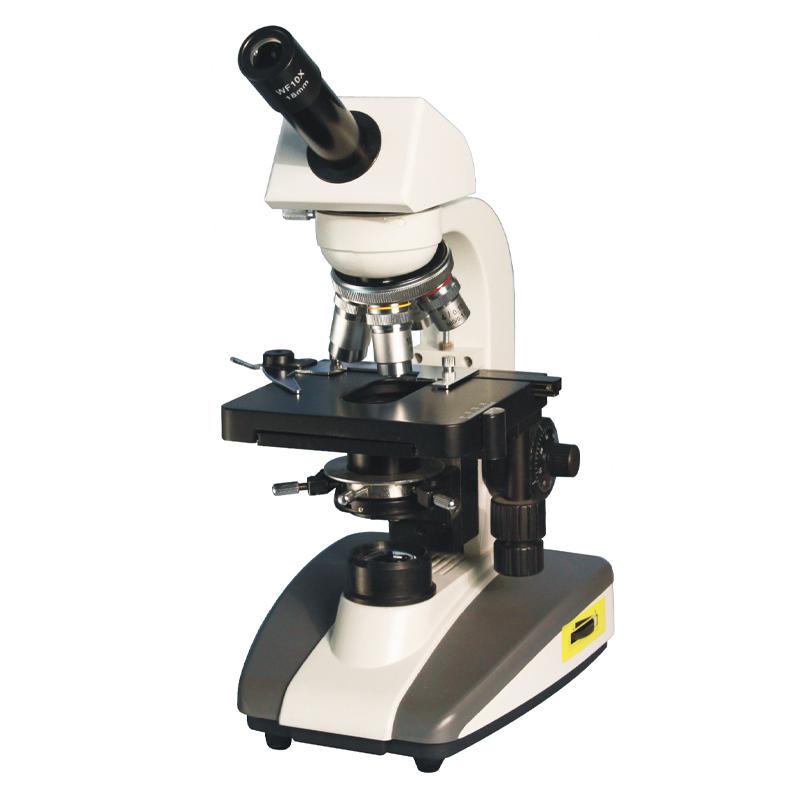

ShangGuangLiuChang XSP-2CA MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| objective lens | Objective for eliminating color difference |
| Total magnification | 4X10X Boosting 40X Boosting 100X |
| numerical aperture | 0.1、0.25、0.65、1.25N.A. |
| Eyepiece magnification | 10X、16X |
| Total magnification | 40X~1600X |
| Adjustable Condenser Numerical Aperture (NA) | 1.2 |
| Coarse fretting focusing range | 15mm, fretting grid value 0.002mm |
| stage | 120 * 120mm, moving range 76 * 50mm, vernier 0.1mm |
| Field of view | 18、11mm |
ShangGuangLiuChang XSP-2CA Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
