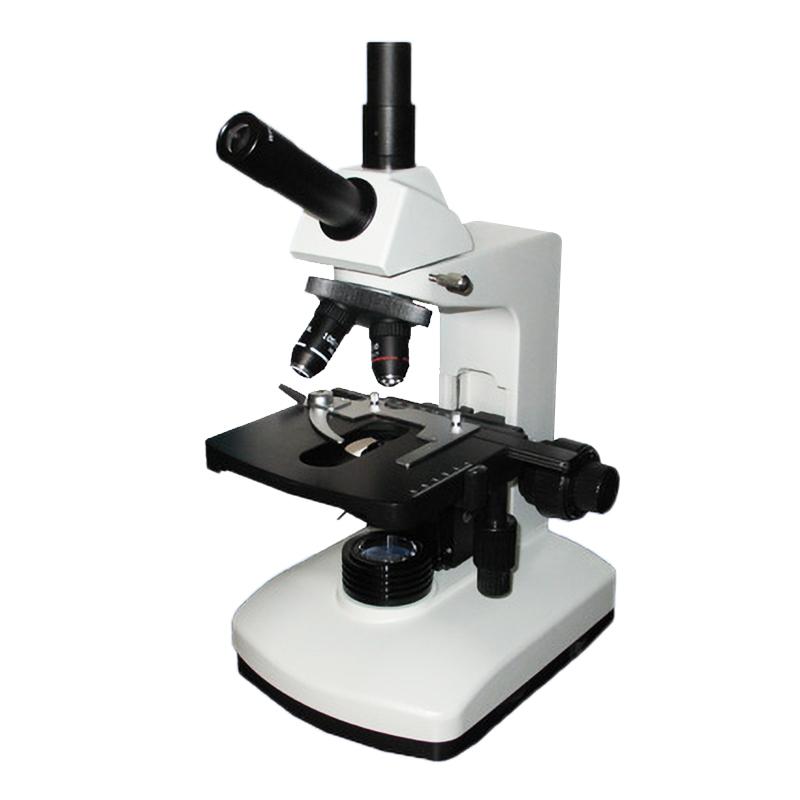

ShangGuang XSP-5CA Biological Microscope

Y-type, three objectives, 1600X, electric light source, with simple adapter

Brand

SKU: NB031616

ShangGuangLiuChang

Model

XSP-5CA

Get Quote

ShangGuangLiuChang shop

Information

Datasheet

What else did others buy

Anyty 3R-MSBTVTY Liquid Focus Auto Microscope

$ 972.00
Varnishing BM-62XCD Computer reflection Polarizing Microscope

$ 4936.00
Varnishing XSP-BM-8CAP Tablet Microscope with 9.7 inch large screen tablet

$ 1813.00
VARNISING BM-SG15Y Research Fluorescence Microscope Magnification 40X-1000X

$ 27587.00
TEELEN TL-2900A Binocular Transmission Polarizing Microscope

Login

Genuinegoods

ShangGuangLiuChang XSP-5CA MicroscopeOverview
Specifications
Comments
FAQs

XSP-5CA

Microscope

Y-type, three objectives, 1600X, electric light source, with simple adapter

Introduction

The monocular camera biological microscope XSP-5CA is equipped with a special camera adapter. While observing the eyepiece, it can also connect a camera device to the computer for image observation, photography, measurement, and save and output images. It can be widely used in the observation and research of biological, medical, agricultural and animal husbandry, textile fibers, and pharmaceutical chemical microparticles. Total magnification: 40X-1600X

Functions and Features

1. The old "glazing" traditional model has stable quality and high cost performance.

2. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.

3. The adjustable Abbe condenser lens is adopted, which has a large focusing adjustment range and good contrast.

4. Two optical path outputs, one for observation and one for connecting to the camera device.

5. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.

optional parts

Plan eyepiece	WF20X
	Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
objective lens	Achromatic objectives: 20X, 60X, 80X, 100X (dry)
ruler	Objective micrometer 0.01mm
	Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
camera port	Camera interface: 1X, 0.5X
	Digital camera interface: 1X, 2.5X/4X
Camera	①Japan JVC camera + image acquisition card has the functions of single, timing, continuous image acquisition, multimedia connection, printout and other functions

	②Digital cameras with 1.3 million, 2 million, 3.2 million and 5 million pixels have the functions of single, timing and continuous image collection, display scale, measurement and other functions, and can be connected to multimedia, printing, EMAIL and other ways of output.

	③Digital camera + basic measurement management software Canon SLR camera, with real-time image acquisition, image fusion, display scale, measurement and other functions, can be connected to multimedia, printing, EMAIL and other ways of output

Image analysis software	①Basic management software UV can collect single sheet, timing, and continuous; it can display ruler and magnification; it can measure the length, angle, radius, circumference, area, etc. of microscopic images; it can be connected to multimedia, printing, EMAIL, etc. Output in various ways.

	② Biological analysis software UV-P can collect single sheets, timing, and continuous; can display rulers and magnifications; can perform various morphological analysis on biological cells, germs, glands, etc. in the field of view, and can be connected to multimedia, printing, EMAIL, etc. Output in various ways.

	③The particle size analysis software UV-G can automatically measure and analyze the particles in the field of view, and can output the distribution map and integral distribution map in a linear or nonlinear statistical manner according to the particle size, area, shape and other parameters of the particles, and can also get Common statistical data such as D10, D50, D90 etc. are displayed. Can be connected to multimedia, printing, EMAIL and other ways of output.

	④The fiber analysis software CU-1/CU-2 can measure and analyze the diameter, content and cross-sectional area of various fibers such as animal, chemical, cotton, and carbon according to national standards, and can make statistics and output reports. Can be connected to multimedia, printing, EMAIL and other ways of output.

ShangGuangLiuChang XSP-5CA MicroscopeSpecifications

LIST	VALUE
Flat field eyepiece	WF10X / f18 ・ WF16X / f11
Objective for eliminating color difference	4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring)
Total magnification	40X~1600X
Monocular observation head	45 ° tilt, 360 ° swirl/spin
converter	Four holes (external ball positioning)
Coarse fine-tuning focus range	15mm fretting grid value 2um coarse fretting coaxial focusing, limit
stage	Double-layer mechanical type, size 125X115mm vernier grid value 0.1mm
Stage movement range	70X30mm
Mechanical barrel length	160mm
condenser	1.25NA Abbe condenser, variable light bar with color filter (up and down)
lighting	Brightness adjustable, tungsten halogen bulb 6V20W
Instrument net Weight	4.0kg
Instrument Gross Weight	5.5kg
Instrument size	21X36X48(cm)
Packaging Dimensions	26X40X49(cm)

ShangGuangLiuChang XSP-5CA Microscope Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
