SHANGGUANG XSP-6C Biological Microscope
Binocular, four objectives, 1600X, Light source
ShangGuangLiuChang-
Varnishing BM-17 UIS Biological Microscope Infinity System
$ 742.00 -
Varnishing BM-12 Trinocular reflection Microscope with Polarizing Device
$ 1642.00 -
Varnishing BM-17AP Tablet Microscope 9.7 inch large screen
$ 1969.00 -
Anyty 3R-WM461WIFI Digital Microscope 10~600 times
$ 996.00 -
Anyty 3R-WM601PCTV Digital Microscope 600X
$ 996.00
Introduction
Binocular biomicroscopyXSP-6C has been widely recognized by various application fields and levels for its reliable stability and superior performance-to-price ratio. It can be widely used in the observation and research of biology, agriculture and animal husbandry, textile fibers, chemical microparticles, etc.
Functions & features
1. The old "glazing" traditional model has stable quality and high cost performance.
2. Planetary coaxial coarse and micro dynamic focusing device is adopted, and the focusing is comfortable and stable.
3. The lifting Abbe condenser is adopted, which has a large range of concentrating adjustment and good contrast.
4. Double-layer mechanical stage with scale is adopted, and the handwheel is adjusted in the coaxial and longitudinal and horizontal directions, which is more convenient to operate.

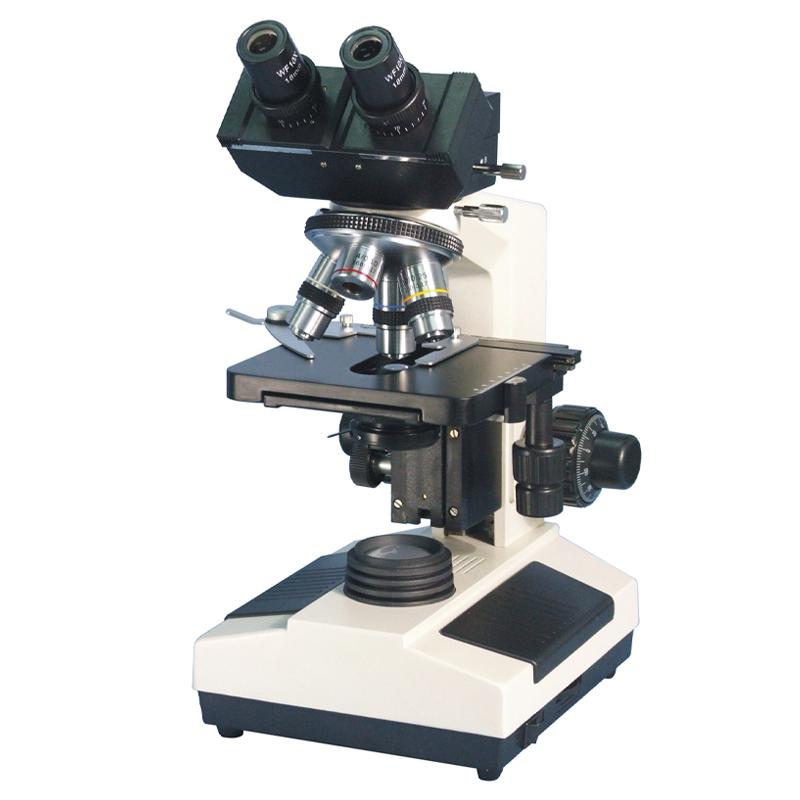

ShangGuangLiuChang XSP-6C MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X/Φ18、WF16X/Φ11 |
| Avoiding color difference objective | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total Magnification | 40X~1600X |
| Binocular observation head | Skateboard type 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (external ball positioning) |
| Coarse fine-tuning focusing range | 25Mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit |
| stage | Double-decked mechanical, size 140X140mm Moving range 75X45mm Vernier grid value 0.1mm |
| Mechanical barrel length | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down lift) |
| lighting system | Adjustable luminance, tungsten halogen bulb 6V20W |
ShangGuangLiuChang XSP-6C Microscope Packing list
Microscope rack X1, binocular lens barrel X1, color difference objective 4X, 10X, 40X, 100X (oil) each X1, flat field eyepiece 10X, 16X each X1, color filter blue, green, yellow each X1, objective lens oil immersion X1, spare halogen tungsten lamp 6V/20WX1, spare fuse X1, power cord X1, product manual X1, product packing list X1, product certificate X1, product warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
