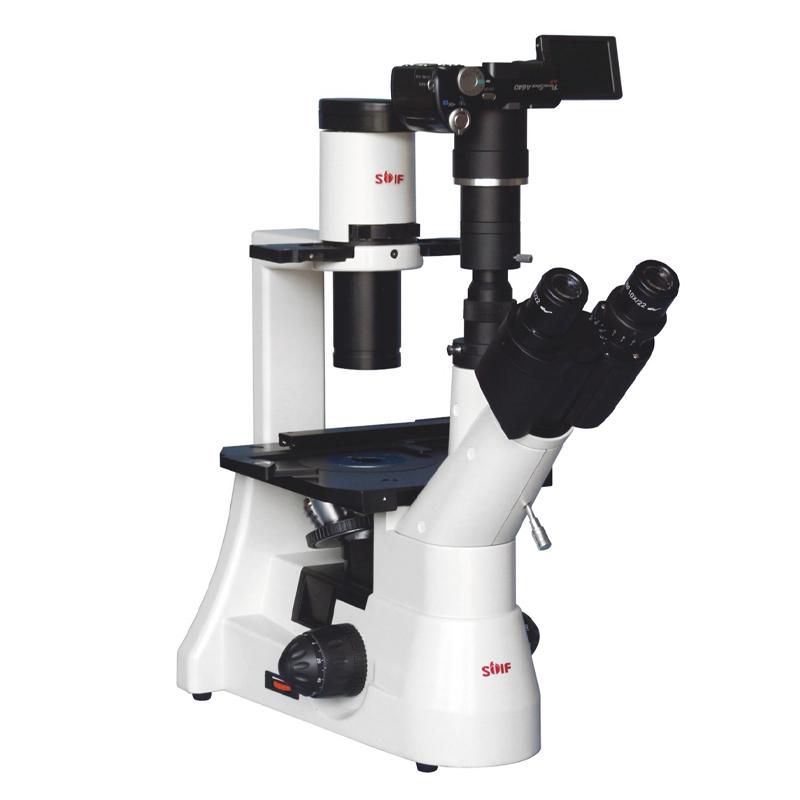

      ShangGuang Sixth Plant 37XBW Inverted Biological Microscope

      Trinocular, infinity objective 4X, 10X, 25X, 40X phase contrast objective 10X, 25X eyepiece 10X, 20X (optional) 40-400X

      Brand
      SKU: NB031625
      China ShangGuangLiuChang
      Model
      VS
      Genuinegoods
      • ShangGuangLiuChang 37XBW Inverted Biological MicroscopeOverview

      • Specifications
      • Comments
      • FAQs
      37XBW
      Inverted Biological Microscope
      • ShangGuang Sixth Plant 37XBW Inverted Biological Microscope
      • ShangGuang Sixth Plant 37XBW Inverted Biological Microscope Figure 1
      • ShangGuang Sixth Plant 37XBW Inverted Biological Microscope Figure 2
      Trinocular, infinity objective 4X, 10X, 25X, 40X phase contrast objective 10X, 25X eyepiece 10X, 20X (optional) 40-400X

      Introduction

      Since this instrument is equipped with a long working distance condenser lens, plan achromatic objective lens and phase contrast device, it can use various culture dishes and culture bottles, especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc. It is also widely used in tissue culture, bacterial culture, and microscopic research on marine plankton. It is a desirable instrument in research work such as biology, genetics, medicinal chemistry, environmental protection, and oceanography. It can be used by scientific research units, colleges and universities, Applications in medical and health, agriculture and other units. 37XBW adopts UISⅡ infinity corrected optical system, equipped with infinity objective lens, which improves the quality of the optical system.


      VS

      ShangGuangLiuChang 37XBW Inverted Biological MicroscopeSpecifications

      LIST VALUE
      Total magnification 40X~400X
      Trinocular observation head Dumpling chain binocular, 45 ° tilt, can be configured with camera device, camera device
      Inclined tube auxiliary lens coefficient 1X
      Flat field eyepiece 10X / f22
      Long working distance objective 4X/0.10、40X/0.65
      Long working distance phase contrast objective 镜:10X/0.25、25X/0.40
      Phase Contrast Ring Plate 10x、25x
      Focusing system Coarse fretting coaxial belt locking device, fretting grid value 0.002mm
      stage 170×242mm
      Movement range Horizontal 75mm, vertical 50mm
      Stage round plate Outer diameter < unk > 110mm, inner hole < unk > 32mm
      Color filter Blue, yellow, green, matte
      light source 220V halogen lamp 6V/30VA brightness adjustable

      ShangGuangLiuChang 37XBW Inverted Biological Microscope Packing list

      [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

      FAQ

      [Q]
      37XBW Does this Microscope Have DIC and Difference Functions?
      [A]
      There is only a difference, no DIC.
      [Q]
      37XBW Does this Microscope Have DIC and Difference Functions?
      [A]
      There is only a difference, no DIC.
