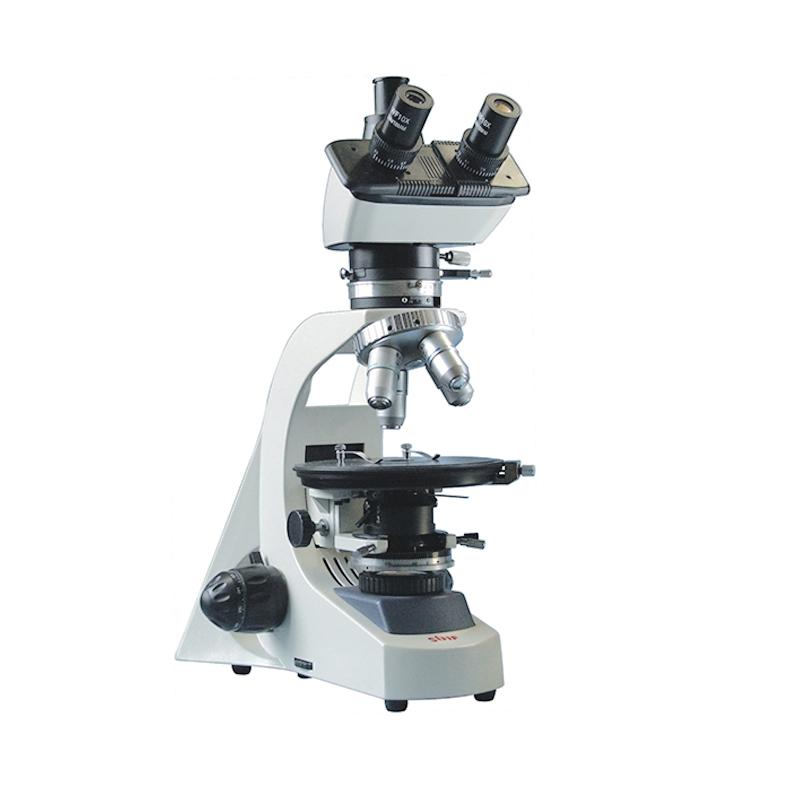

        ShangGuangLiuChang 69XC Trinocular Polarizing Microscope

        SHANGGUANG 69XC Trinocular Polarizing Microscope

        10X cross-scribed eyepiece, eyepiece with seat network ruler, micrometer 0.01mm, transmission, stress-free color difference objective 4X, 10X, 40X, 25X, 63X40X-630X

        Brand
        SKU: NB031631
        China ShangGuangLiuChang
        Model
        Get Quote
        VS
        ShangGuangLiuChangLOGO

        ShangGuangLiuChang shop

        Information
        Datasheet
        What else did others buy
        Genuinegoods

        • ShangGuangLiuChang 69XC Trinocular Polarizing MicroscopeOverview

        • Specifications
        • Comments
        • FAQs
        69XC
        Trinocular Polarizing Microscope
        • SHANGGUANG 69XC Trinocular Polarizing Microscope
        10X cross-scribed eyepiece, eyepiece with seat network ruler, micrometer 0.01mm, transmission, stress-free color difference objective 4X, 10X, 40X, 25X, 63X40X-630X

        Introduction

        This polarizing microscope adopts a transmission lighting system, which is mainly used for observing and identifying various transparent crystals, rocks , minerals and substances with double refraction. One of the experimental instruments. It can also be used in textile and chemical fiber industries to test textile fibers and medical units to test drugs. With the continuous advancement of optical technology, the application of polarizing microscopes is becoming more and more extensive. Used for single polarized light observation; orthogonal polarized light observation; conoscopic light observation and microphotography. Accessories such as , quartz wedges and moving rulers are a group of products with relatively complete functions and good quality.


        VS

        ShangGuangLiuChang 69XC Trinocular Polarizing MicroscopeSpecifications

        LIST VALUE
        Total Magnification 40X~1600X
        eyepiece 10X/Should 22 flat field eyepiece, 10X/Should 18 cross eyepiece, 10X/Should 18 mesh eyepiece, 10X/Should 18 split eyepiece
        Infinity stress-free color difference objective 4X/0.10、10X/0.25、20X/0.40、40X/0.65、60X/0.80
        observation head 360 ° swirl/spin, skateboard binocular barrel 45 ° tilt, twisted chain binocular barrel 30 ° tilt
        Mechanical barrel length ∞mm
        Focusing system Focusing range 30mm, fretting grid value 0.002mm, coarse fretting coaxial focusing with limit and locking device
        Swirling/spinning table φ 160mm, 360 ° aliquot scale
        Load circle plate Outer diameter Should be 80mm, Inner hole Should be 24mm
        moving ruler Movement stroke 30 × 40mm
        condenser 1.30N.A, Abbe condenser with variable light bar and color filter
        Detector 0 °~ 90 ° rotating polarizer
        polarizer Configured on the condenser
        complementary color Plaster lambda sheet, mica 1/4 lambda sheet, quartz wedge
        Light source 12V/30VA halogen tungsten lamp, adjustable luminance

        ShangGuangLiuChang 69XC Trinocular Polarizing Microscope Packing list

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Is the price listed on the website the final cost for overseas purchases?
        [A]
        No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
        [Q]
        What is the specific process for purchasing the product?
        [A]
        First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
        [Q]
        What should I do if the instrument I purchase needs repair?
        [A]
        After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
