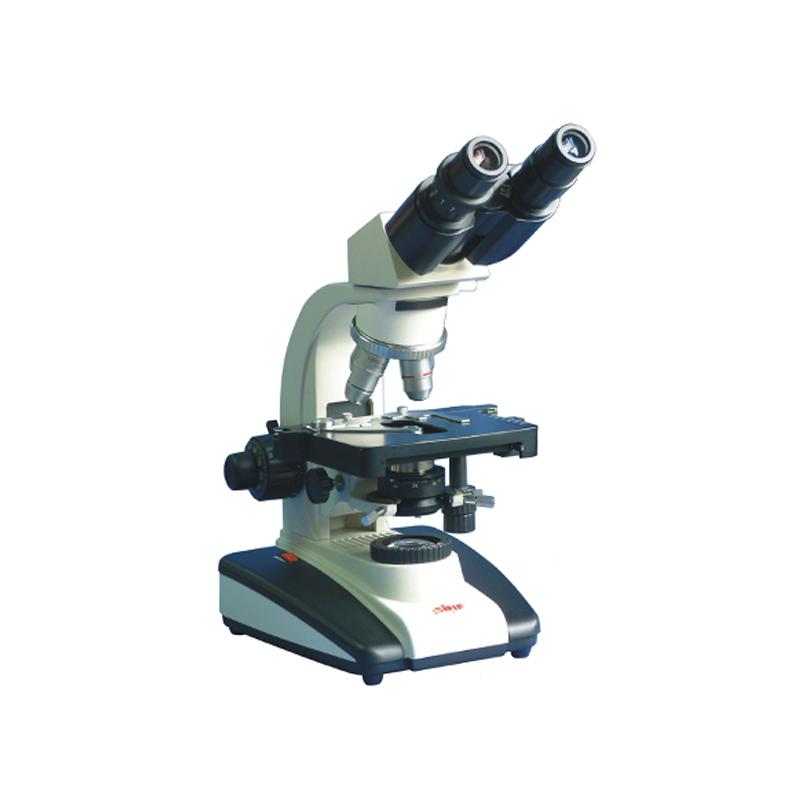

ShangGuangLiuChang BM-15 Binocular Bio-Microscope

ShangGuang BM-15 Binocular Biological Microscope

10X eyepiece, four infinity objectives, 40X-1000X, Kohler Lighting

Brand

SKU: NB031642

ShangGuangLiuChang

Model

BM-15

Get Quote

ShangGuangLiuChang shop

Information

Datasheet

What else did others buy

Genuinegoods

ShangGuangLiuChang BM-15 Binocular Bio-MicroscopeOverview
Specifications
Comments
FAQs

BM-15

Binocular Bio-Microscope

10X eyepiece, four infinity objectives, 40X-1000X, Kohler Lighting

Introduction

The binocular biological microscope XSP-BM15 adopts a very good infinity-corrected optical path system. It has a beautiful appearance and clear image quality. It can be widely used in the observation and research of biology, medical treatment, agriculture and animal husbandry, textile fibers, and pharmaceutical chemical tiny particles. Total magnification: 40X-1000X

Functions and Features

1. Adopt today's more professional infinity optical path design.

2. It adopts humanized design, beautiful appearance and convenient operation.

3. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.

4. Kohler lighting and adjustable Abbe condenser are adopted, with uniform illumination and good contrast.

5. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.

optional parts

Plan eyepiece	15X
Plan eyepiece	Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
objective lens	Achromatic objectives: 20X, 60X, 80X, 100X (dry)
ruler	Objective micrometer 0.01mm
ruler	Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
Camera	Electronic eyepiece 350,000, 1.3 million, 2 million, 3.2 million, 5 million (pixels)
Camera	It has the functions of single sheet, timing, and continuous image acquisition, display scale, measurement, etc., and can be connected to multiple output methods such as multimedia, printing, and EMAIL.

ShangGuangLiuChang BM-15 Binocular Bio-MicroscopeSpecifications

LIST	VALUE
Flat field eyepiece	WF10X / f20
Infinity objective:	4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring)
Total magnification	40X~1000X
observation head	Binocular, hinged 45 ° tilt, 360 ° swirl/spin
converter	Four holes (inward ball positioning)
Coarse fine-tuning focus range	25mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit
stage	Double layer mechanical
stage	153X135mm
Stage movement range	80X75mm
Stage vernier value	0.1mm
Mechanical barrel length:	160mm
pupil distance	55-75mm
condenser	1.25NA Abbe condenser, variable light bar with color filter (up and down)
Lighting:	220V Kohler lighting, brightness adjustable, tungsten halogen bulb 12V30W
Instrument net Weight	6.0 kg
Gross Weight	7.8 kg
Instrument size	22X36X36.5（cm）
Packaging Dimensions	33.5X28X59（cm）

ShangGuangLiuChang BM-15 Binocular Bio-Microscope Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
