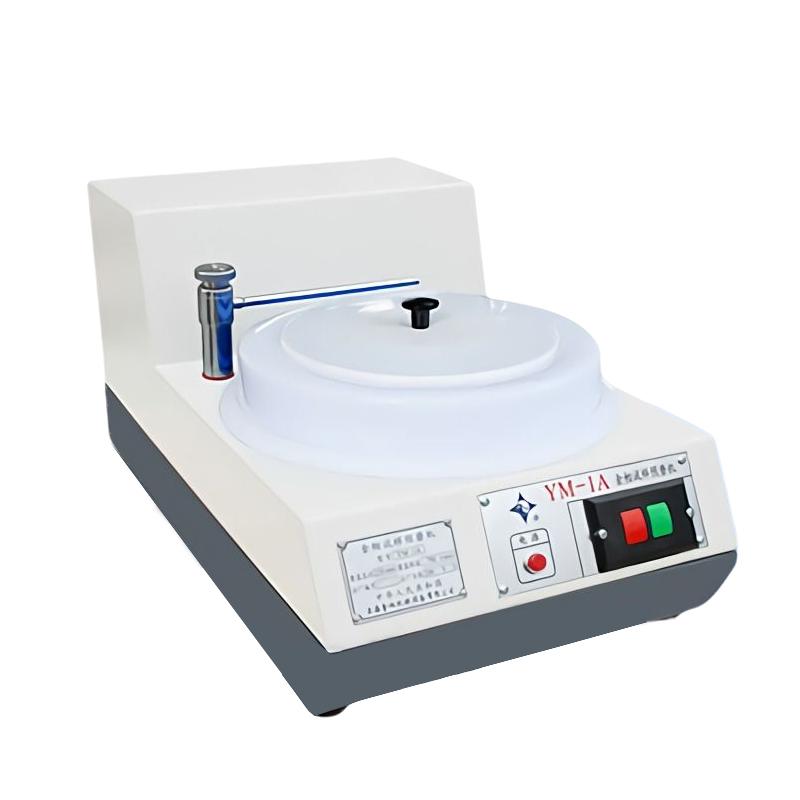

SHANGGUANG YM-1A Metallographic Specimen Pre-Mill (Desktop)
SHANGGUANG YM-1A metallographic sample pre-Grinder disc diameter 230mm, sandpaper diameter 230mm, Rotation speed 700r/min, YM-1A metallographic sample pre-Grinder disc diameter larger than domestic (CN) congeneric products, Rotation speed of the grinding disc is also different from domestic (CN) products, is the preferred device for sample pre-grinding.
ShangGuangLiuChang
YM-1A
-
Huicheng HC-3500 carbon black content Tester carbon black content, ash content determination
$ 2682.00 -
DUBAN DB10-4221 Acoustic calibrator Class 1
$ 374.00 -
Experimental equipment for hot pressing of paper pattern ZY-YZ-2 electrothermal paper pattern press, special for papermaking laboratory
$ 3724.00 -
YUZHOU PG-1A metallographic sample polishing machine, the diameter of the throwing plate is 230mm
$ 319.00 -
CHINA BLD-YB36 360 wire swing testing machine, power cord/DC wire bending test
$ 1339.00
Introduction
In the process of metallographic sample preparation, the pre-grinding of the sample is the pre-process required before polishing, after the pre-grinding of the sample, the work efficiency of the sample preparation can be greatly improved, the YM-1A pre-grinding machine is through the need for multi-party pre-grinding, the grinding disc diameter of the machine is greater than that of similar domestic (CN) products, and the speed of the grinding disc is also different from that of domestic (CN) products, which is the preferred equipment for sample pre-grinding.
ShangGuangLiuChang YM-1A Metallographic sample pre-mill (desktop)Specifications
| LIST | VALUE |
|---|---|
| Grinding disc diameter | 230mm |
| Sandpaper diameter | 230mm |
| Rotation speed | 700r/min |
| electric motor | YS7118,0.2KW,380V,50Hz |
| Dimension | 650*340*300mm |
| Weight | 36kg |
ShangGuangLiuChang YM-1A Metallographic sample pre-mill (desktop) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
