Impact measurement of slender narrow groove bottom

IPRE DL Impact device is an Optional accessory of Leeb Hardness Tester, DL Impact device for measurement of slender narrow groove bottom.

Brand

SKU: NB031702

Ipre

Model

DL type

Price

$ 384.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Ipre shopSE

Information

Datasheet RFQ Contract

What else did others buy

LANDTEK HM6560 Leeb Hardness Tester Rapid inspection of multiple measurement parts of large workpieces

$ 322.00
LEEB G Hardness Gauge Impact device, gray cast iron/nodular cast iron Hardness measurement

Login
LEEB180G Integrated Leeb Hardness Tester Standard G Impact device

$ 948.00
DL Leeb Hardness Tester for measurement of slender narrow grooves

$ 1196.00
Leeb Hardness Tester accessories, probe special cable, Deguang Electronics Leeb Hardness Tester accessories

$ 128.00

Genuinegoods

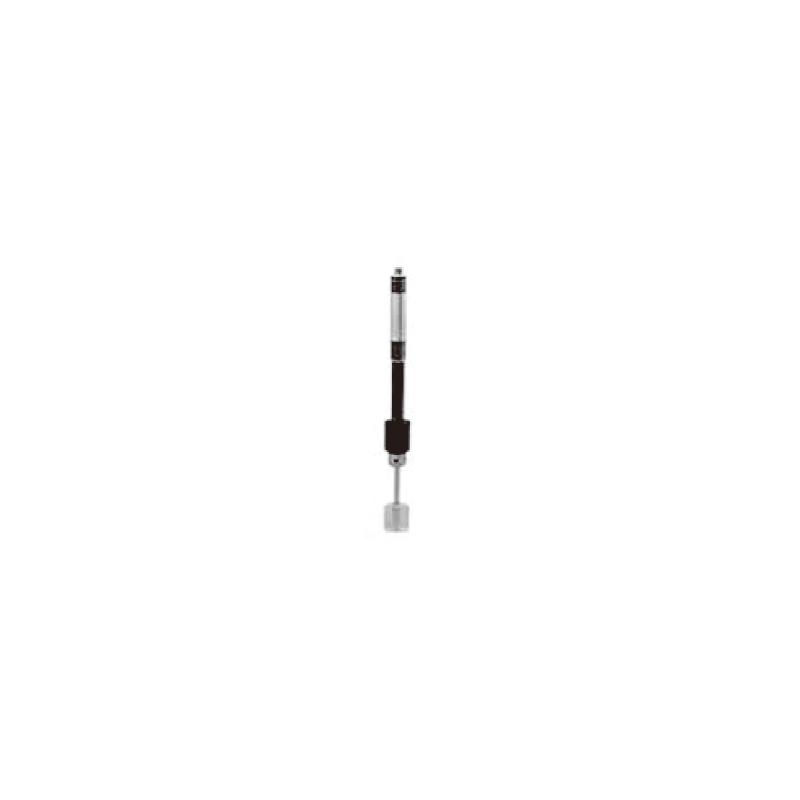

Ipre DL type Impact deviceOverview
Specifications
Comments
FAQs

DL type

Impact device

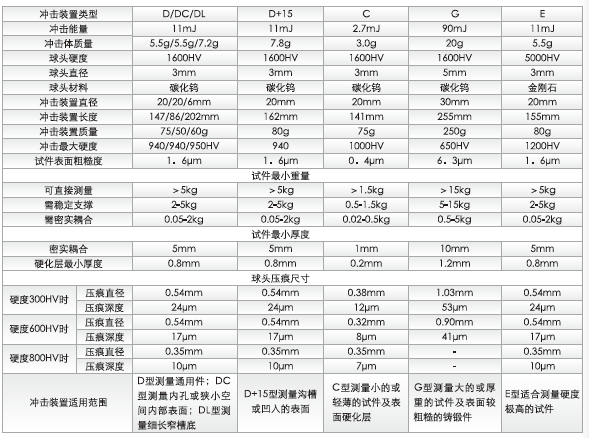

Shock device technical parameter table

Details of Zhongke Purui DL impact device 1

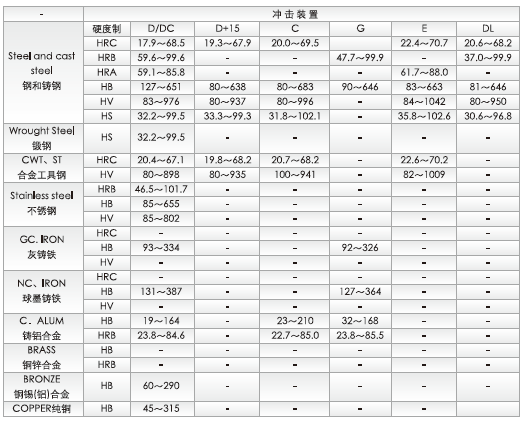

Measuring range table for impact device

Details of Zhongke Purui DL impact device 2

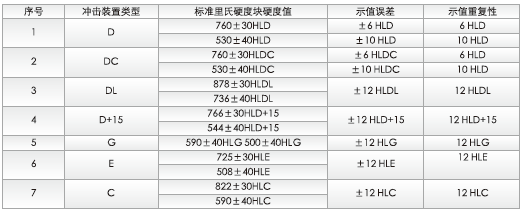

Indication Error and Indication Repeatability Table

Details of Zhongke Purui DL impact device Figure 3

Ipre DL type Impact deviceSpecifications

LIST	VALUE
Impact energy	11mJ
Impact Mass	7.2g
Ball Hardness	1600HV
Ball head diameter	3mm
Ball head material	tungsten carbide
Impact device diameter	6mm
Impact device length	202mm
Impact device Mass	60g
Maximum Impact Hardness	950HV
Specimen Surface Roughness	1.6µm
The minimum Weight of the specimen can be directly measured	>5kg
The minimum Weight of the specimen needs to be stably supported	2-5kg
The minimum Weight of the specimen needs to be tightly coupled	0.05-2kg
Specimen Minimum Film thickness Dense coupling	5mm
Hardening Film thickness	0.8mm
Hardness 300HV Indentation Diameter	0.54mm
Hardness 300HV Indentation	24µm
Hardness 600HV Indentation Diameter	0.54mm
Hardness 600HV Indentation	17µm
Hardness 800HV Indentation Diameter	0.35mm
Hardness 800HV Indentation	10µm
Standard Richter Hardness Block Hardness Value	878±30HLDL；736±40HLDL
Error of indication	±12HLDL
Indication repeability	12HLDL

Ipre DL type Impact device Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
