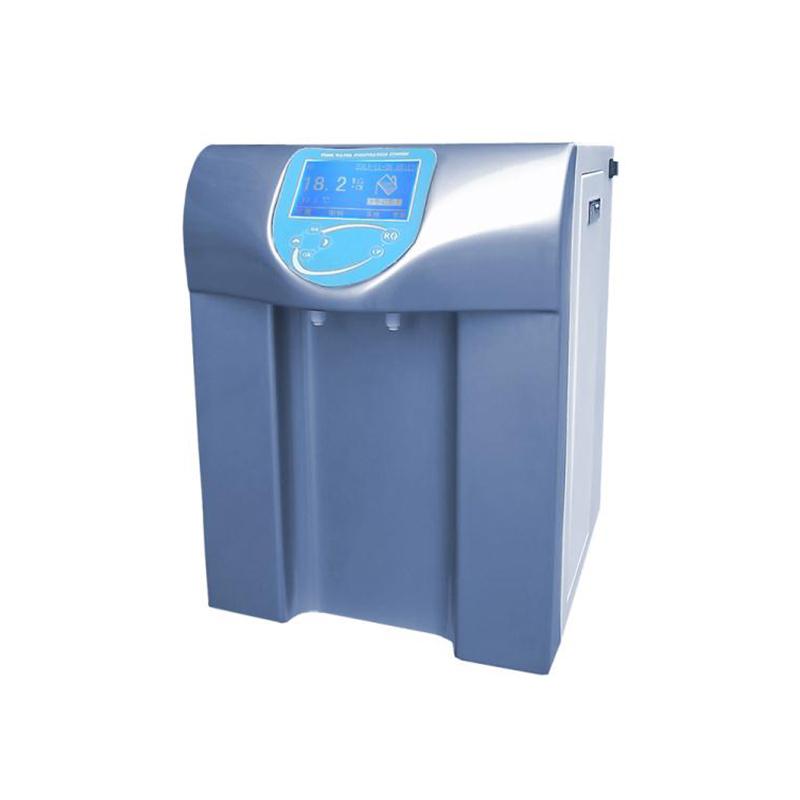

FLOM FYY2002-RO two-stage reverse osmosis (RO) ultra-pure water machine 20L/H
FLOM FYY2002-RO reverse osmosis (RO) ultra-pure water machine is a special ultra-pure water machine for FYY basic application experiment, with a water production capacity of up to 20L/H, and the quality of the produced water is three-level water. FYY2002-RO adopts two-stage reverse osmosis (RO), and the internal design is timed to take water.
FLOM-
BIO0021 Puro80 Laboratory Water Purification System, three-stage water 80L/H water storage tank 30L
$ 8829.00 -
TIANMA UPTM-B20 Experimental Benchtop Ultrapure Water Mechanism Water Quantity 20L/H
$ 1569.00 -
BIO0021 Puro50 Laboratory Water Purification System, three-stage water 50L/H water storage tank 60L
$ 8145.00 -
BIO0021 Puro20 Laboratory Water Purification System, three-stage water 20L/h water storage tank 60L
$ 6074.00 -
TIANMA UPTM-C20 desktop ultrapure water mechanism water volume 20L/H
$ 3615.00
Features
1. LCD touch screen (4.3) control system has automatic fault detection indication, automatic diagnosis system, water quality exceeding standard alarm, the system has consumables failure automatic alarm and reminder replacement function, built-in timed flushing program, built-in timed automatic cycle program, water shortage, power failure automatic protection alarm, automatic alarm shutdown when the system is short of water, and automatically in standby state after the water is full;
2. The internal design of the machine is timed to take water, and the customer can set the required water volume at will according to their own water consumption needs and press the button to take water, and automatically close it after reaching the corresponding water volume to avoid water overflow;
3. The host is equipped with a one-key disinfection function of pure water and ultra-pure water, and the pressure can be relieved if the water pressure is too high;
4 Unique membrane treatment technology and accessories in the United States, which can adapt to different municipal tap water in various places;
5. Built-in ultra-pure water circulation program design, stable water quality, convenient and fast water intake, no need to wait, real-time monitoring data.
6. The multi-function LCD touch screen system has a unique password protection function, and the operation parameter storage function ensures the safety of the operation data;
7. Automatic continuous water production, real-time operation status display, adjustable operating parameters; The water production system and the circuit system are completely separated, which effectively eliminates potential safety hazards;
8. The equipment conforms to (National Laboratory Water Standard GB/T6682-2008), Chinese National Standard for Electronic Grade Ultrapure Water (GB/T11446.1-1997), and American Test Grade Water (CAP, ASTM, NCCLS) standards;
9. The company has passed the EU CE certification and ISO9001-2008 international quality management system certification;
10. The integrated water intake handle is comfortable to hold, operated with only one hand, and easy to use; The water intake arm bracket can be lifted and lowered freely, rotated 360°, and has a non-slip base; It has the function of independent water intake (ultrapure water); (Not standard)
11 Multifunctional Water Tank (30L): Water tank air filter reduces environmental pollutants such as CO₂, particulate matter, bacteria and volatile organic compounds; The dual liquid level sensor device of the Water Tank provides additional safety guarantee for the system, independent high liquid level sensing control, to achieve abnormal ultra-high liquid level (110%) protection, and to cooperate with the whole liquid level sensing to achieve normal high liquid level (100%) and low liquid level (10%) ultrapure aquatic product water protection. (Not standard)
Application
FYY (basic application): physical and chemical analysis experiments, hydrogen generators, test vessel flushing, cleaning machines, laboratory animal drinking water, high-purity steam generators, sterilizers and other instruments, ultrapure water system pre-unit with distilled water as the source water;
FFX (Basic Analysis): Routine qualitative analysis experiments such as biochemical instrument, solution preparation, preparation of chemical reagents, buffers, culture media, university student experiments, physical and chemical testing, etc.;
FBZ (standard reagent): used for buffer preparation, chemical analysis and inspection of atomic absorption (AA), atomic fluorescence (AFS), effective liquid chromatography (HPLC), mass spectrometry (MC), plasma emission spectroscopy (ICP);
FCR (depyrogen-removing type): amino acid analysis, protein purification, electrophoresis/gel analysis, animal and plant cell culture, molecular biology experiments and other projects, electrophoresis, molecular biology experiments, PCR;
FDY (Low Organics): Ion chromatography, trace metal analysis, preparation of high-purity standard solutions, quantitative analysis of trace elements, HPLC effective liquid chromatography; Toxicity detection, HPLC, TOC analysis, IC, GC/MS, ICP/MS analysis;
FJY (Genetic Research) :D NA/RNA preparation sequencing; HPLC (Amino Acids, Penicillin Analysis); Protein purification/analysis; toxicity testing; TOC testing; IVF 、PCR ; Cell and tissue culture, capillary electrophoresis, biology
FLOM FYY2002-RO Laboratory ultrapure water machineSpecifications
| LIST | VALUE |
|---|---|
| Product name | FYY basic application type |
| Produced water quality | tertiary water |
| reverse osmosis (RO) | double stage |
| Flow Rate | 20L/h |
| Inlet source | Municipal tap water |
| source water pressure | 0.15 Mpa~0.5Mpa |
| Inlet temperature | 5-40℃ |
| conductivity | ≤5μS/cm |
| resistivity | ≥0.2MΩ.cm |
| Flow velocity | 1-2L/min |
| Dimension | 430*500*560mm |
| Weight | 30kg |
FLOM FYY2002-RO Laboratory ultrapure water machine Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
