TQC LD0551 Shore durometer type D, Dial-Type portable Shore durometer

Standard D type Shore durometer, suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.

Brand

SKU: NB000319

TQC sheen

Model

LD0551

Price

$ 951.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

TQC sheen shopSE

Information

Datasheet RFQ Contract Video Catalog Catalog Manual

What else did others buy

SUNDOO SLX-A Shore Durometer testing device A/C Shore Durometer for

$ 173.00
LIULING LX-D Hardness rubber hardness gauge

$ 832.00
DUBAN DB20-LX-D Type D Shore Durometer 30 °/R0.1/4536gf Hard Rubber/Hard Plastic

$ 337.00
Sponge Hardness Gauge AMITTARI AS-120F Soft foam/polyurethane foam hardness testing

$ 361.00
DUBAN DB20-LX-Shore C Type Shore Durometer 35 °/0.79/4536gf Medium Hard Rubber/Medium Hard Plastic

$ 382.00

Genuinegoods

TQC sheen LD0551 Shaw durometerOverview
Specifications
Comments
FAQs

LD0551

Shaw durometer

Standard D type Shore durometer, suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.

Introduction to LD0551 Shore Hardness Tester

TQC LD0551 Shore Hardness Tester Type D is a pointer-type portable Shore Hardness Tester. It is a genuine product imported from the Netherlands and is a standard D-type Shore Hardness Tester designed and produced in accordance with a variety of international standards. The material of the LD0551 Shore Hardness Tester is stainless steel alumina, which has good wear resistance and corrosion resistance.

The TQC Portable Shore Hardness Tester (Shore Hardness Tester) is a reliable hardness measuring instrument used to measure the indentation hardness of soft materials such as paint, plastics and rubber. The indicator pointer can stay at the maximum measured value. The configuration of LD0551 Shore Hardness Tester includes Hardness Tester and 1 standard block.

LD0551 Shore Hardness Tester is suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.

Measuring range is 0-100 Shore, accuracy: 1shore.

Standards compliant

The LD0551 Shore Hardness Tester complies with standards DIN 53505, ISO 868 and ASTM D2240.

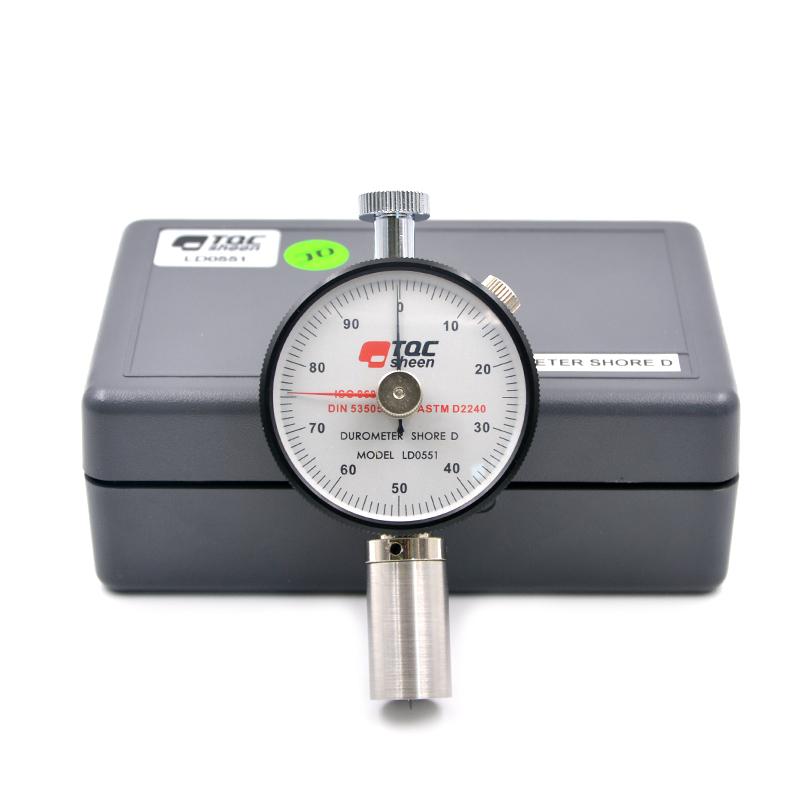

Actual pictures of LD0551 Shore Hardness Tester

LD0551 Shore Hardness Tester D type display picture 1

LD0551 Shore Hardness Tester Type D Detail

Detail of LD0551 Shore Hardness Tester D-type probe

LD0551 Shore Hardness Tester Type D Packaging Picture

Shore Hardness Tester series

Type A Shore Hardness Tester

model	LD0550
standard	DIN 53505, ISO868, ASTM02240
Applications	Automotive industry, coating industry, construction, laboratory, paint, electroplating, etc.
Main test materials	Elastomer, vinyl, synthetic rubber, leather, PVC, silicone, Teflon, etc.
scope	0-100
Accuracy	0.006
Material	Stainless steel.Aluminum oxide
size	60Ã25Ã110ã(lengthÃwidthÃheight)
weight	230g

D type Shore Hardness Tester

model	LD0551
standard	DIN 53505, ISO868, ASTM02240
Applications	Automotive industry, coating industry, construction, laboratory, paint, electroplating, etc.
Main test materials	Polyester, ABS (styrene), nylon, polyurethane, synthetic fiber, acrylic resin, technical materials, polystyrene, etc.
scope	0-100
Accuracy	0.006
Material	Stainless steel.Aluminum oxide
size	60Ã25Ã110ã(lengthÃwidthÃheight)
weight	230g

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

TQC sheen LD0551 Shaw durometerSpecifications

LIST	VALUE
standard	DIN 53505、ISO868、ASTM02240
applicable industry	Automotive industry, painting industry, construction, laboratory, paints, Eletroplating, pharmaceuticals, etc
Main test materials	Polyester, ABS (styrene), nylon, polyurethane, synthetic fiber, acrylic resin, art material, polystyrene, etc.
scope	0-100
Precision	0.006
material	Stainless steel. Aluminum oxide
size	60 × 25 × 110mm (L × W × H)
Weight	230g

TQC sheen LD0551 Shaw durometer Packing list

Durometer x1, Standard block x1, Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

GB/T39535-2020, can this standard be tested?

[A]

This standard measures carbon materials with particles smaller than 0.8mm. LD0551 Shore Hardness Tester meets standards DIN 53505, ISO 868 and ASTM D2240.

[Q]

Do you have the Shaw Hardness Tester required by the ASTMD2240 standard?

[A]

This LD0551 Shore Hardness Tester will do.

[Q]

Is the configuration of Shore hardness A and D the same? If there is type A, can I change the type D indenter and load to be used as type D for testing?

[A]

Hello, Type A can only be equipped with Type A machines, and the same is true for Type D. The two are not universal.

[Q]

What is the function of the red pointer on the dial of this Shore hardness tester?

[A]

Hello, the red pointer of this LD0551 Shore hardness tester is a slave needle, which is used to record the tested value, which is convenient for test comparison and ensures the accuracy of measurement.

[Q]

What material is the probe of this Shaw durometer?

[A]

Hello, it's aluminum oxide.
