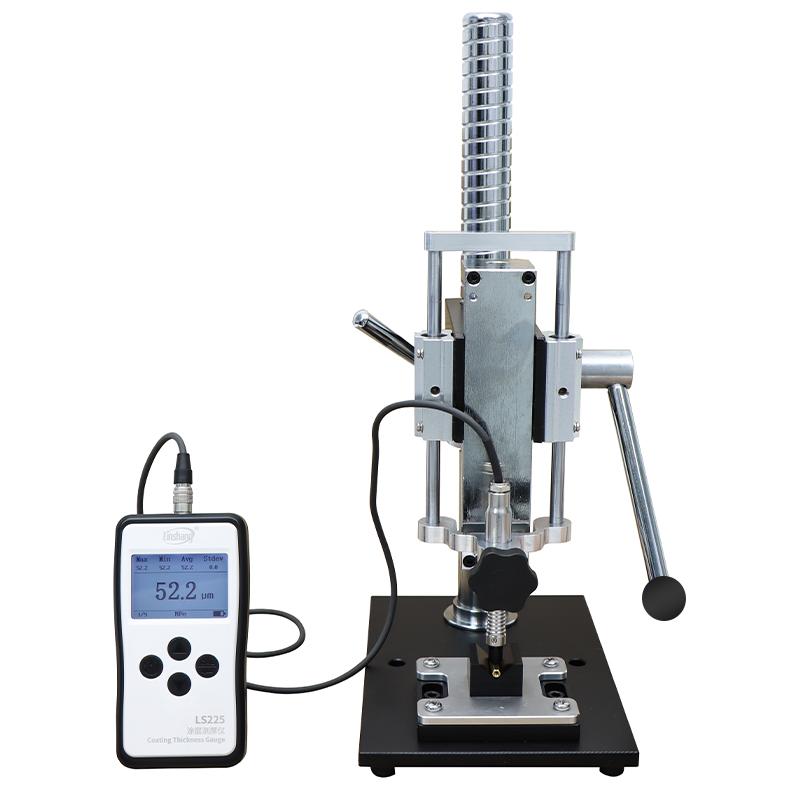

LINSHANG LS225 Coating Thickness Gauge with N1500 probe + test fixture

Introduction

The LS225+N1500 is a split aluminum-based coating Thickness Gauge consisting of the host LS225 and non-ferrous probe N1500. The instrument adopts the principle of vortex flu response, with ultra-high measurement accuracy and repeatability, and is equipped with a probe-type probe design, which is especially suitable for measuring ultra-thin coating and various small-sized workpieces and special-shaped materials.

It is mainly used for the anodizing layer on the surface of aluminum alloy profiles, aluminum plates, aluminum-plastic panels and various aluminum workpieces, as well as the thickness measurement of non-conductive coatings on non-ferrous metal substrates such as brass and copper.

Product structure diagram

The product is based on the standard

GB/T 4956-2003 Thickness measurement of non-magnetic overlay on magnetic substrate - Magnetic method

DIN ENISO2808 Determination of paint film thickness for coatings and varnishes

JJG-818-2005 V. R. of Magnetic and Eddy-current Coverage Thickness Measuring Instrument

Features

(1) The probe type probe design is especially suitable for measuring the coating thickness on small size and special-shaped materials.

(2) Using digital oscillation technology and high-speed ADC acquisition, it can measure ultra-thin coating layers below 10μm and ensure accurate and stable data.

(3) The digital probe is adopted, and the digital signal is processed on the probe, which is not easy to be disturbed by the external environment and ensures good data repeatability.

(4) It has an ultra-wide range of 0-1500μm, and the measurement unit μm and mil can be switched.

(5) The special hand pressure test rack can eliminate the error caused by human factors, and the data repeatability can reach 0.1μm

(6) Support zero adjustment and multi-point calibration to ensure more accurate data, equipped with special zero adjustment board and standard piece.

(7) It has the function of data statistics, and automatically counts the maximum, minimum, average value and variance value of the last 9 groups of data.

(8) The use of high hardness probe and increased durability design can ensure that the instrument has a long service life.

(9) It has the function of automatic shutdown without operation (can be set for 1-9 minutes), and Chinese and English interfaces can be switched freely.

Application

LS225+N1500 aluminum-based coating Thickness Gauge can be used for rapid and non-destructive measurement of the thickness of non-conductive coating on non-magnetic metal substrates in production inspection, construction acceptance and sales exhibition sites, and can be applied to aviation, building materials, machinery, chemical, light industry and instrumentation industries.

Host x1, N1500 probe x1, zero adjustment plate x1, test fixture X1, standard piece x7, manual x1, certificate/quality assurance card x1, 1.5V AAA alkaline battery x4, plastic engineering box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
