JingKeLian QND-4C (single copper cup) 4 Viscometers

JINGKELIAN QNC-4C Coating Viscosity Cup

Outflow time 0~150s, flow hole diameter 4mm, capacity 100ml, cup body material copper, filter material copper, Applicable standard GB/T 1723, flow hole length 4 +/- 0.02mm.

Brand

SKU: NB032320

JingKeLian

Model

Price

$ 110.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Video

What else did others buy

TRUIT TR 1008/3 ISO Viscosity Cup φ3.0mm

$ 125.00
TRUIT TR 1004/2.5 French standard Viscosity Cup aperture φ2.5mm

$ 125.00
TQC VF2181 filter DIN53211 standard 1mm diameter

$ 144.00
MODERNER T-4 coated 4 Viscosity Cup aluminum alloy material

Login
JINGKELIAN QNB No. 6 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 6mm

$ 138.00

Genuinegoods

JingKeLian QND-4C (single copper cup) 4 ViscometersOverview
Specifications
Comments
FAQs

QND-4C (single copper cup)

4 Viscometers

Outflow time 0~150s, flow hole diameter 4mm, capacity 100ml, cup body material copper, filter material copper, Applicable standard GB/T 1723, flow hole length 4 +/- 0.02mm.

QND-4C Viscosity Cup overview

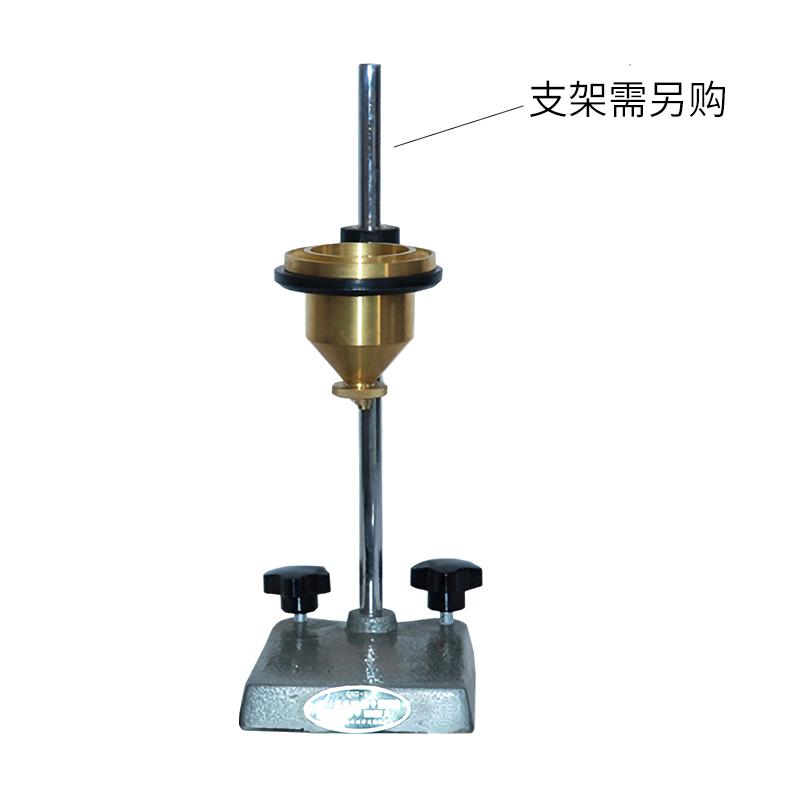

QND-4C Viscosity Cup is a desktop structure designed Viscosity Cup, the upper part is cylindrical and the lower part is a conical container, suitable for measuring the outflow time range of 0~150s.

QND-4 Viscosity Cup is designed and manufactured according to the national standard GB/T 1723-93. The viscosity measured in this way is the conditional viscosity. That is, the time it takes for a certain amount of sample to flow out of a hole with a specified diameter under certain temperature conditions. Expressed in seconds (s). It is suitable for measuring the viscosity of coatings, paints and other related products.

QND-4 has three cups made of different materials: plastic, aluminum and copper. But the metal cup shall prevail. The QND-4C Viscosity Cup is made of copper.

JingKeLian QND-4C (single copper cup) 4 ViscometersSpecifications

LIST	VALUE
outflow time	0~150s
Flow hole diameter	4mm
Capacity	100ml
Cup body material	copper
Filter material	copper
Applicable standard	GB/T 1723
Outlet height	4±0.02mm

JingKeLian QND-4C (single copper cup) 4 Viscometers Packing list

Viscosity cup x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Apply 4 cups, what's the difference between these?

[A]

4A is a bakelite cup, 4B is an aluminum cup, and 4C is a copper cup.

[Q]

Check the viscosity of phenolic resin glue, what viscosity cup to use to measure it?

[A]

The national standard can be coated with 4. This is the relative viscosity, and a rotational viscometer can also be considered.

[Q]

How many calibers are there for painting four cups?

[A]

The so-called coated 4 cup refers to a viscosity cup with a diameter of 4mm, which conforms to the GB standard. So this is a general term, including desktop and portable.

[Q]

Is this the 4 Viscometer mentioned in HG/T2661?

[A]

[Q]

Are the filter nozzle and cup body of this QNC-4C viscosity cup made of copper?

[A]

Hello, yes.
