FlexTest-S-P2 Flexible Test System, Tension Clamp

Introduction

The emergence of flexible electronics has provided a new direction for the development of classical electronics and triggered the emergence of new forms of electronic devices. However, in the process of transforming electronic materials and devices from rigid to flexible, the traditional rigid test methods have become unable to fully adapt, and the matching flexible test system has become necessary to promote the development of the flexible electronics industry.

In the testing process of flexible electronic materials and devices, especially in the initial stage of development and verification of flexible electronic materials and devices, it is of great significance to develop a modular flexible materials and devices test system with high degrees of freedom to improve the efficiency of development and verification and reduce the test cost.

Product Features

The stretching stroke can be up to 150 mm

Deformation accuracy: 10μm

High reliability (million cycles)

Scalability (mechanical, optical, electrical performance testing assistance systems)

Scope of application

Tensile testing of wearable electronics, flexible electronics, stretchable materials and devices.

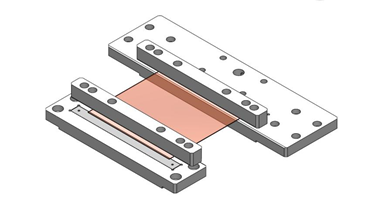

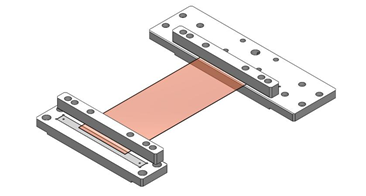

Operating Principle

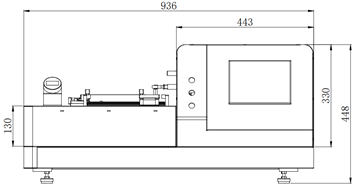

Product dimensions

Fixture X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
