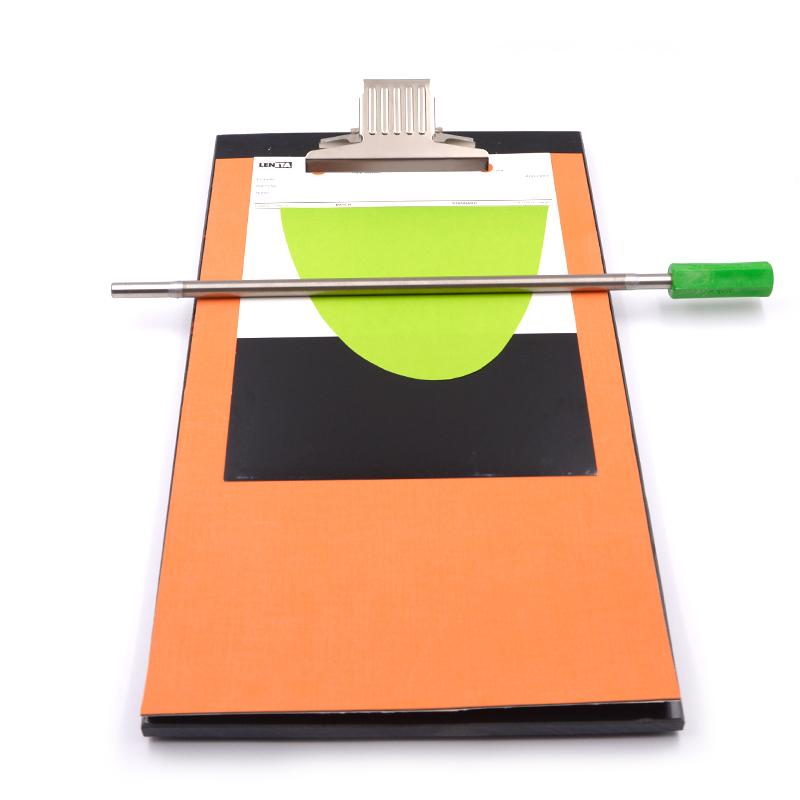

UK RK KHC.11.3 + KHC.21 Applicator rod Drawdown Plate set 24μm

Introduction to RK wire rod

The RK wire Bar Coater is a high-end wire Bar Coater imported from the UK. The workmanship is wire-wound type. The RK wire bar can apply two or more coatings at the same time in one operation and can be used for comparison sample preparation. The RK wire rod applicator has a distinctive appearance design. One section of the handle is designed with plastic. The colors of the plastic parts of different models are different, making it easier for users to identify different rod numbers. Each RK wire rod number is available in two types: long rod and short rod, with lengths of 24.5cm and 37.5cm respectively. There are also wire rods used on coating machines.

The RK0 wire Bar Coater is a hot-selling model, and the KHC.10.0 is a long wire bar. The coating wet film thickness is 4μm, the Total length is 37.5cm, and the effective coating width is 25.5cm. RK wire Bar Coaters are popular in fields such as ink proofing, packaging and printing, and daily chemicals.

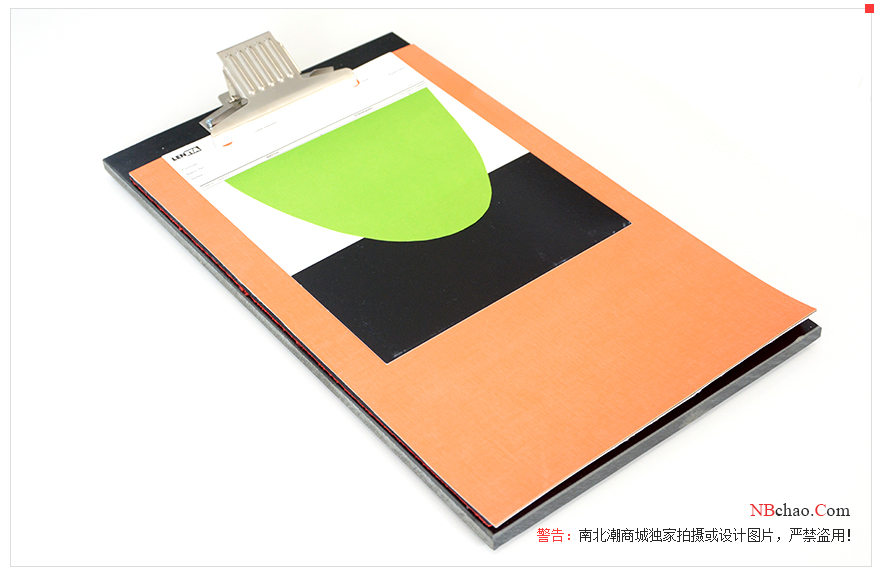

Introduction to KHC.20 Imprinting Bed

The RK imprinting bed is a coating platform designed by RK in the UK. It uses different material combinations to effectively improve the coating and proofing effect. The RK imprinting bed consists of clamps, a rigid polyester board and a foam/rubber cushion. Compared with proofing directly on hard substrates, proofing on the RK printing bed has better repeatability and proofing effects. This is because the soft foam/rubber pad can absorb the pressure exerted by the operator on proofing to a certain extent, resulting in better proofing results.

KHC.21 is a large imprinting bed, used with RK long wire rod applicator, with a size of 430x247x12mm.

Optional

Note: Click on the accessory image to view product details.

Main rod [with rubber head] X1, Large Drawdown Plate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
