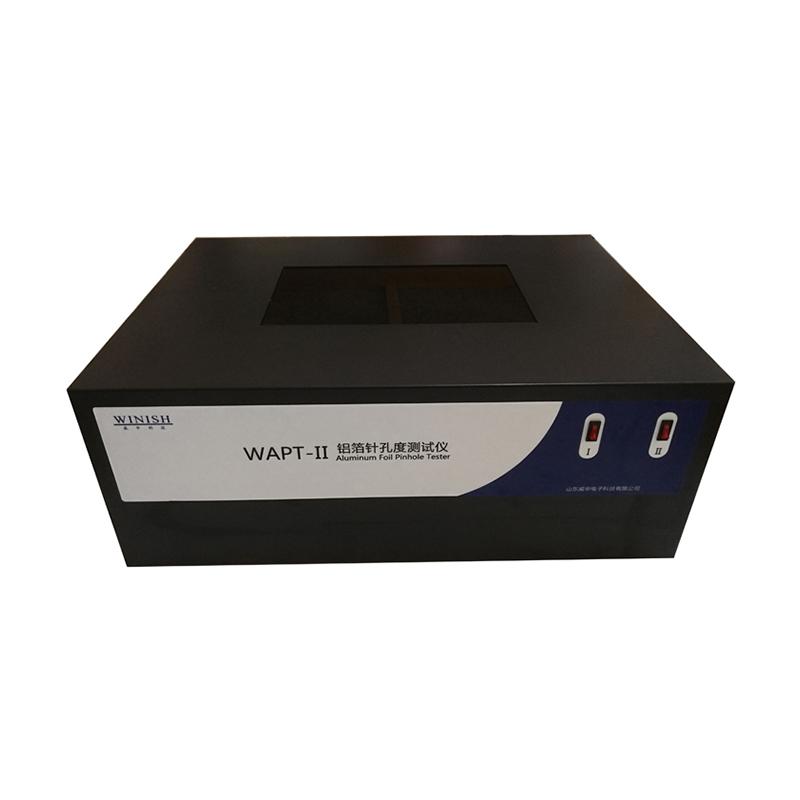

WAPT-II aluminum foil pinholing degree Tester
Weishen WAPT-II aluminum foil pinholing degree Tester meets the national standard and pharmacopoeia standards, and is suitable for pinholing degree detection of Encasement aluminum foil for medicinal and food use. The light source power of WAPT-II aluminum foil pinholing degree Tester is 15W, 30W, 45W three gears with optional resolution 0.01mm, the maximum measurement aperture is 2mm, and the transmitted illuminance is 1000lx.
WINISH
WAPT-II
-
JINGKELIAN QSX-17 Perforation Resistance Instrument, Determination of Perforation Resistance of PVC Waterproof Membrane
$ 251.00 -
CHINA NBC-8906 luggage lifting and releasing testing machine, automatic simulated luggage lifting and releasing tensile test
$ 3568.00 -
YUZHOU PG-2D metallographic sample polishing machine, double disc independent operation, large disc diameter
$ 700.00 -
HORIZON SPL-30A Lifting fatigue Tester, portable plastic bag vibration Tester amplitude 30 +/- 2mm
$ 2180.00 -
SuJie ZJ-900 Mobile Air Self-purifier 820 * 610 * 120mm
$ 1188.00
product description
WAPT-II aluminum foil pinhole Tester is a professional instrument for aluminum foil pinhole test designed according to the pinhole test scheme stipulated in GB/T 3198, GB/T 22638.2, YBB 00152002-2015 and relevant standards of Pharmacopoeia. Aluminum foil pinhole Tester is suitable for pinhole detection of aluminum foil for pharmaceutical and food packaging. The Detector uses the light transmittance of the sample pores to observe the number of pinholes under the specified environment and light box light source, and measures the size of the pores through a graduated microscope.
Test Principle
Spread the sample on the observation window, the illuminance inside the box is 1200-1500lx, when there are holes on the surface of the sample, the light in the box can pass through the holes, and the diameter of the holes can be measured by observing with a graduated microscope.
product features
Comply with national standards and pharmacopoeia standards
15W, 30W, 45W three gears optional
High light transmittance glass plate to ensure the amount of internal light transmission
80 times high-definition magnification, 0.01mm macro resolution
Executive standard
GBT 3198, GBT 22638.2, YBB 00152002-2015, ASTM B 926
WINISH WAPT-II Aluminum foil pinholing degree TesterSpecifications
| LIST | VALUE |
|---|---|
| Light source power | 15W、30W、45W |
| Observation window size | 400x250mm |
| Microscope multiple | 80 times (Miscellaneous multiple optional) |
| resolution | 0.01mm |
| Maximum measurement aperture | 2mm |
| Transmitted Illuminance | 1000lx |
| Dimensions | 800（L）*600（W）*320（H）mm |
| Power | 220V 50Hz |
| Weight | About 24kg |
| Standard configuration | Host, 80X scale Microscope, Power Cord, Fuse |
WINISH WAPT-II Aluminum foil pinholing degree Tester Packing list
Host X1, 80X scale Microscope X1, power cord X1, insurance tube X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
