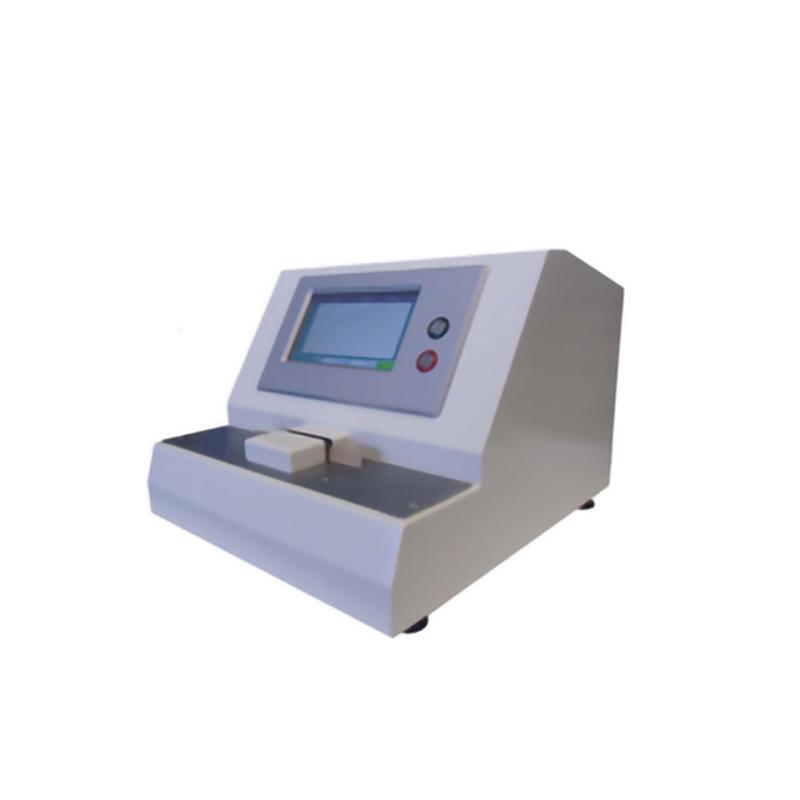

ZHIBANG ZB-DYS Short Range Compression Strength Tester
The ZHIBANG ZB-DYS short-range Compressive Strength Tester has a built-in touch screen control to select the test method and display the Measured value and Linear dispersion. The sample width of the ZB-DYS short-range Compressive Strength Tester is 15 +/- 0.1mm, the test range is 1~ 500N (0.06~ 33.3kN/m), the compression distance is 0.3~ 0.7mm, and the clamping length is 30 +/- 0.5mm.
ZhiBang
ZB-DYS
Introduction
The short-span compressive strength Tester is used to determine the short-span compressive strength. Compressive strength CS (Compression Strength) = kN/m (compressive resistance / width 15 mm). The instrument is easy to use and has high measurement accuracy. Its open design allows the sample to be easily placed at the test port. The instrument is operated via a built-in touch screen that selects the test method and displays the measured values and curves.
Features
The clamping pressure is adjusted
Pneumatic clamping of the sample
The test speed can be adjusted
UI
The instrument is controlled via a touch screen
Visual control screen, intuitive menu operation, multi-Chinese language
The icon shows the results of the test and shows the compressive strength curve
ZhiBang ZB-DYS Short Range Compression Strength TesterSpecifications
| LIST | VALUE |
|---|---|
| Specimen width | 15±0.1mm |
| compression distance | 0.3~0.7mm |
| clamping length | 30±0.5mm |
| Pressurization speed | 3±0.1mm/min |
| Accuracy | 0.15N，0.01m |
| Power supply Voltage | 220VAC，50/60VAC，50/60H |
| gas source | 0.5MPa |
| Dimensions | 505*355*480mm |
ZhiBang ZB-DYS Short Range Compression Strength Tester Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
