JFL QDX film multi-purpose Detector film thickness, Hardness, adhesion and other performance detection

Introduction to QDX Paint Film Multi-purpose Detector

JFL QDX paint film multi-purpose Tester is a multi-purpose Tester that can test various properties of organic coatings, including organic coating film thickness (total thickness of multi-layer film, single-layer film thickness, number of film layers), cross-cut Adhesion, Buckholz indentation hardness. In addition, the QDX paint film multi-purpose Detector can be used to study the paint film pinholes, potholes, cracks, bubbles, peeling, the quality of the substrate treatment and other phenomena between the film layers. QDX has the characteristics of high resolution ±0.001mm, intuitive and simple measurement.

The structure of QDX paint film multi-purpose Detector

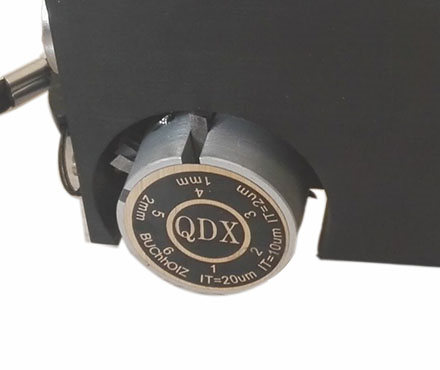

The paint film multi-purpose Detector is composed of a body, a wheel clamp, a support column, a microscope and a lighting device.

Principle of QDX paint film multi-purpose Detector

QDX multi-purpose paint film Detector uses tools of different specifications to make V-shaped incisions, grid pattern cuts or indentations on the coating according to the needs of different tests. The coating thickness value, coating film peeling phenomenon and images produced by indentation can be directly observed with a microscope. The graduation of the instrument scale has been converted into the corresponding micron by the calibration coefficient, so the measured paint can be directly read from the microscope. The actual thickness and indentation length values of the membrane.

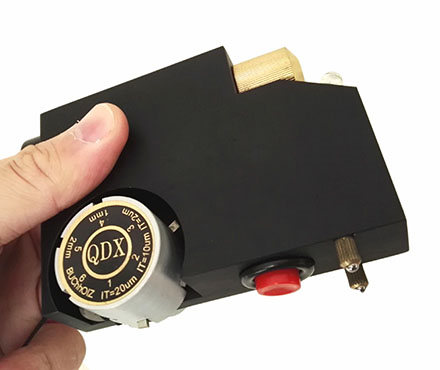

Display of QDX paint film multi-purpose Detector

Host x1, active weight x1, screw driver x2, battery x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
