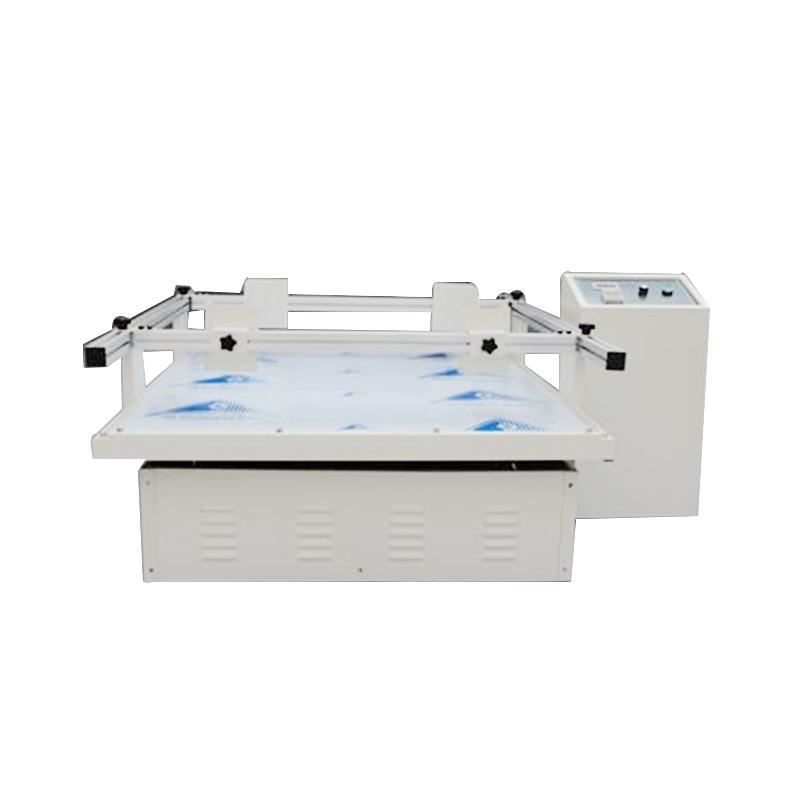

HP-MZT02 Simulated Vehicle Transportation Shaker Table
HP-MZT02 adopts rail-type test product clamping, vibration Frequency 100~300rpm, HP-MZT02 is suitable for toys, electronics, furniture, gifts, ceramics, Encasement and other products for simulated transportation testing.
HengPin
HP-MZT02
-
CHINA NBC-ZXY75C Electrodynamic Shaker Touch Screen Vibration Tester
$ 3104.00 -
CHINA NBC-Z50D Vertical Vibration Tester, Vibration Tester
$ 1131.00 -
Tensile Tester NBC-50kN Microcomputer controlled electronic universal testing machine, maximum test force 50kN
$ 4579.00 -
CHINA NBC-5024 Vibration Tester Simulation Vehicle Transportation Test Bench
$ 708.00 -
CHINA NBC-ZX150C Electrodynamic Shaker Touch Screen Vibration Tester
$ 4033.00
Introduction
This machine is suitable for simulated transportation tests of toys, electronics, furniture, gifts, ceramics, packaging and other products, in line with the United States and European transportation standards, and applicable to the standards EN ANSI, UL, ASTM, ISTA international transportation standards.
Features
The digital gauge shows the vibration frequency
Synchronous noise belt drive, very low noise
The sample clamping adopts the guide rail type, which is convenient and safe to operate
The base of the machine is made of heavy-duty channel steel with vibration-damping rubber pad, which is easy to install and runs smoothly, without the need to install anchor screws
The DC motor has speed regulation, stable operation and strong load capacity
Rotary vibration (commonly known as horse racing) conforms to European and American transportation standards
HengPin HP-MZT02 Simulated Car Transport Shaker TableSpecifications
| LIST | VALUE |
|---|---|
| Test direction | Rotary (horse racing) |
| Frequency of vibration | 100~300rpm |
| Maximum test Weight | 100kg |
| Amplitude | 25.4Mm (1 inch) |
| Platform size | 1200*1000mm |
| Motor Power | 0.75kw |
| Table size | 1200×1000×650mm |
| Timer | 0~99H99m |
| Machine Weight | 100kg |
| Frequency Accuracy | 1rpm |
| Power supply Voltage | AC220V |
HengPin HP-MZT02 Simulated Car Transport Shaker Table Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
