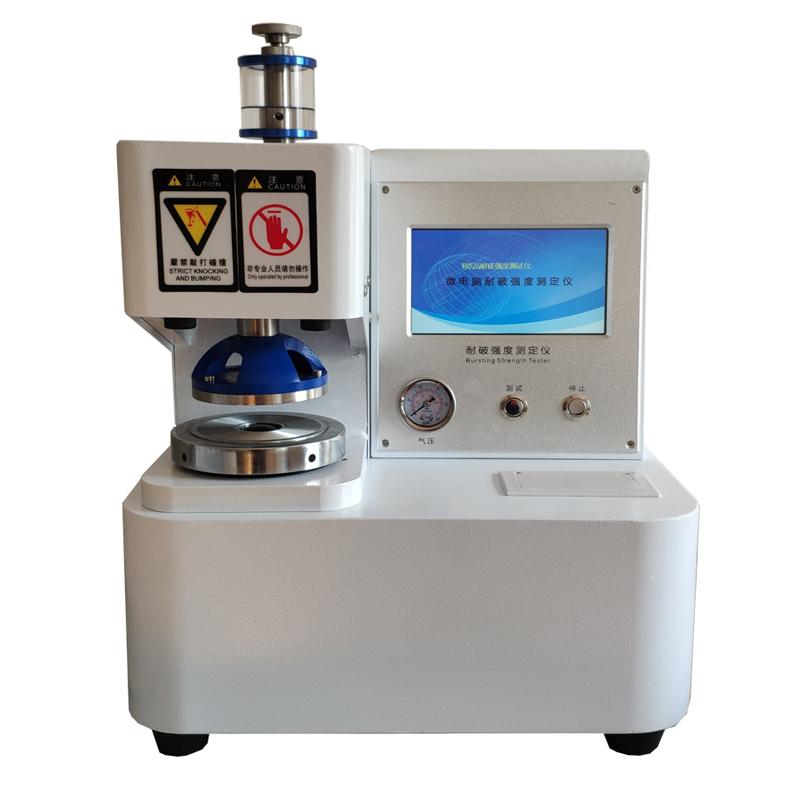

CHENCHI NPD-2D Cardboard Burst Tester
CHENCHI NPD-2D Cardboard bursting resistance Tester is suitable for bursting strength testing of all kinds of paper and Cardboard, and can also be used for bursting resistance testing of non-paper sheet materials such as silk, cotton, leather, etc. Measurement range of NPD-2D Cardboard bursting resistance Tester 250-5600Kpa, clamping force between the chucks > 690 Kpa (adjustable), chuck clamping method pneumatic, pressurized oil feeding speed 170 +/- 15ml/min.
LABCHEN
NPD-2D
-
JINGWEN JW-102C2Z paper Burst Tester
$ 1556.00 -
JINGWEN JW-102C1Z paper Burst Tester, Burst Tester
$ 1457.00 -
Essence LD - NP-WL Cardboard Burst Strength Tester, Vertical Button Edition
$ 936.00 -
YINUO YN-NPY1600 Microcomputer Burst Strength Tester (touch screen) ≤ 1600Kpa paper breaking resistance
$ 1713.00 -
YANTE YT-NPY5600Q paper Burst Strength Tester Cardboard corrugated fibreboard
$ 2363.00
Features
The electronic cardboard burst Tester is developed and produced according to the international Mullen method, and its performance parameters and technical indicators meet the requirements of ISO2759, GB1539, ISO2758 and GB454 standards, and is suitable for the bursting strength test of all kinds of paper and cardboard, and can also be used for the bursting resistance testing of non-paper sheet materials such as silk, cotton, leather, etc. This instrument is simple to operate, reliable in performance and professional in technology, and is an indispensable equipment for scientific research units, paper manufacturers, packaging industry and quality inspection departments.
Features
1] Seven-inch color LCD screen display;
2] Friendly menu-type man-machine interface, easy to operate;
3] With power-down protection test data;
4] Optional configuration of Rs232 computer communication interface;
5] Integrated thermal printer with module and complete and detailed test data report;
Standards:
ISO2759 cardboard - determination of burst resistance, GB1539 cardboard burst resistance determination method, ISO2758 paper - determination of burst resistance, GB454 paper burst resistance determination method
LABCHEN NPD-2D Cardboard Burst TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 250~5600Kpa |
| Clamping Force | >690Kpa |
| Chuck clamping method | Pneumatic |
| Oil delivery speed | 170±15mL/min |
| Machine Accuracy | Level 1 |
| Error of indication | ≤±0.5% |
| System sealing | At the upper limit of measurement, 1 minute pressure drop < 10% Pmax |
| Film resistance | Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa |
| Lower clamp ring aperture | Φ(31.5±0.05)mm |
| Concentricity of Upper/Lower plates | ≤0.25mm |
| Dimensions | 360*300*325mm |
| Power supply Voltage | 220V 50HZ |
| Power | Approx. 90W |
| test conditions | Temperature 10~30 ℃, Humidity not exceeding 85%, Stable table, Flat table without vibration |
| Net Weight | About 45kg |
| Standard configuration | host + micro printer + wrench + glycerin + film + power cord |
| Upper clamp ring aperture | Φ(31.5±0.05)mm |
LABCHEN NPD-2D Cardboard Burst Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
