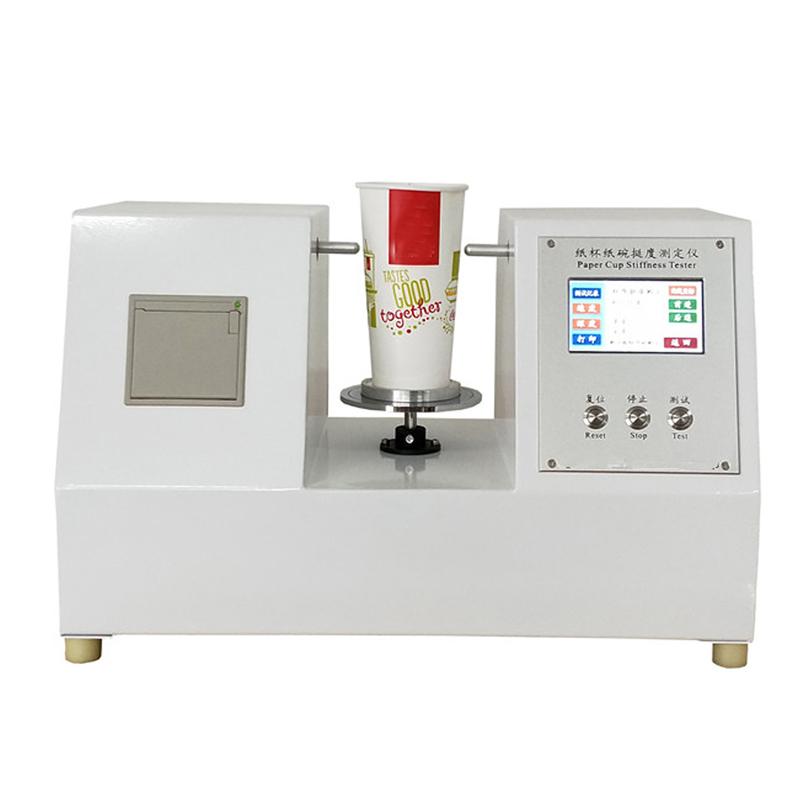

CHENCHI ZBT-10 Paper cup Stiffness meter

Brief introduction

ZBT-10 soybean milk paper cup body stiffness Tester is designed according to the People's Republic of CHINA light industry QB/T2294-1997 "paper cup" standard, mechanical paper cup body stiffness Tester principle requirements, the instrument contact forward and backward with motor drive, contact stroke with encoder measurement, cup body resistance force sensor measurement, all action control, data, measurement and calculation processing are completed by the computer, and displayed by the monitor, printer print test report. Soybean pulp paper cup body stiffness Tester.

Scope of application

Paper cup and paper bowl stiffness Tester is a special instrument for paper cup body stiffness testing. The instrument is designed according to the basic requirements of QB/T2294 (paper cup) and GB/T27590 (paper cup) standards and the general technical requirements of JJG157 "Non-metallic Tensile, Pressure and Multifunctional Testing Machine". It is an instrument required by paper cups and related scientific research and quality inspection departments.

Meets standards

QB/T 2294、JJG157、GB/T27590-2011等

Instrument characteristics

1. High-precision load sensor and chip processing system imported from the United States are used for high precision, and the measurement indication is accurate.

2. Good repeatability In the test system, the two measuring heads move relative to each other through the precision screw belt, and the test speed is high and constant. The test results are reproducible. The test speed and the relative moving distance of the probe can be set arbitrarily within a certain range, which improves the applicability of the instrument, and this function is of great significance to scientific research and testing institutions.

3. Easy to use and easy to operate Touch screen Chinese display, friendly man-machine interface operation. Fully automatic completion of the test, with test data statistical processing function, micro printer output, can also be optionally connected to the computer operation. When connected to a PC, in addition to automatically memorizing and storing results, it is also possible to display and save compression curves.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
