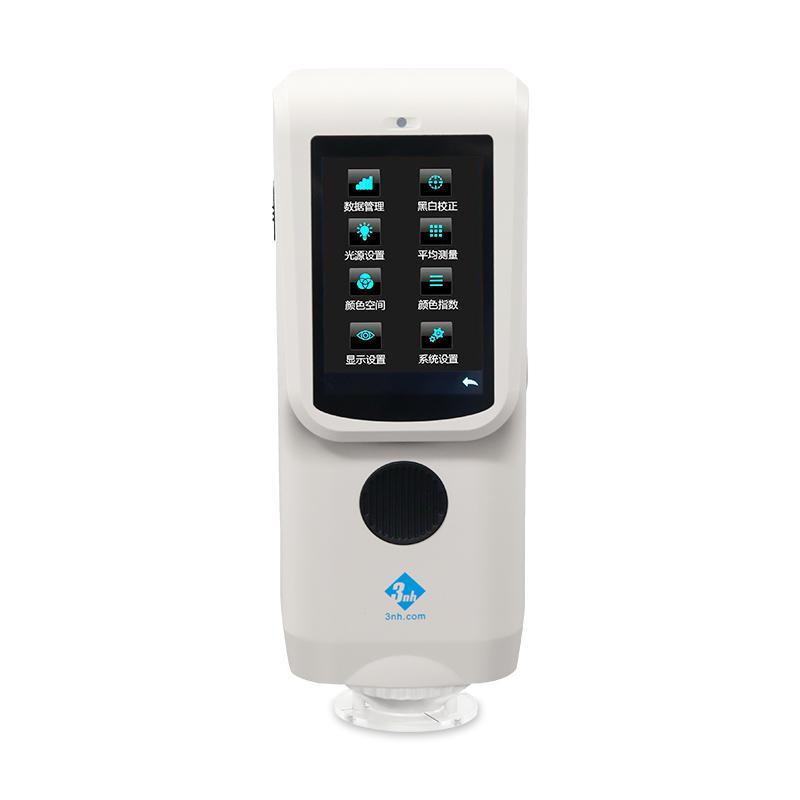

3NH TS7010 Portable Colorimeter 8mm

Introduction

TS7010 is a portable spectroscopic Colorimeter developed by 3nh using independent spectroscopic core technology. It is a high-level Colorimeter under the spectroscopic structure. In addition to ensuring the accurate relative value ΔE, it also ensures the long-term accuracy of the absolute value L, A, and B. It can pass the measurement of international standards and national standards anytime and anywhere. Using built-in silicon photodiode array (24 sets of dual columns) sensors and imported whiteboards, the repeatability ΔE*ab can be easily controlled within 0.1, while taking into account the measurement speed and the convenience of operation, and can quickly measure color difference without connecting to a computer or software It is judged that the 8mm measuring caliber meets the precise color difference control in the production and quality inspection of plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries.

Features

1. Φ8mm measuring aperture, 10°observer angle, which can meet the needs of customers in most industries;

2. Combining full-spectrum LED light source, planar grating light splitting, and true-color capacitive touch screen, the starting point for configuration is high;

3. Silicon photodiode array (two rows of 24 groups), the display accuracy is 0.1, and the repeatability is good;

4. The life of the light source is greater than 3 million measurements in 5 years, and the lithium battery can be measured 6,000 times within 8 hours, which can be recharged repeatedly and has a long battery life;

5. Data storage with 500 standard samples and 10,000 samples for fast data search, analysis and comparison.

Applications

TS7010 spectroColorimeter is equipped with 8mm measuring aperture, which can meet the precise color difference control in the production and quality inspection of plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries.

technical advantage

1. Ergonomic design

The TS7010 spectroColorimeter has a beautiful, smooth shape and a comfortable grip. The structural design conforms to the ergonomics and fits in the palm of your hand and is suitable for continuous testing work, allowing you to use it quickly and easily.

2. Adopt full-band balanced LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectrum loss of white LEDs in specific bands, and ensures the measurement speed of the instrument and the accuracy of measurement results.

3. Silicon photodiode array (double 24 array) sensor

Larger area double 24 array sensor, strong light will not be saturated, low light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

4. Measurement verification report

Each TS7010 Spectrophotometer has been verified and tested according to the measurement standards of the credible verification department, and the measurement data is traceable to the National Institute of Metrology to ensure the reliability of the instrument test data.

5. E TC real-time calibration technology

The TS7010 spectroColorimeter adopts imported standard white board, which is resistant to yellowing, dirt does not penetrate, and can be wiped to ensure the long-term accuracy of the instrument. At the same time, the innovative ETC real-time calibration technology (Every Test Calibration) is adopted. The optical system has a built-in standard whiteboard, and it has reliable accuracy and repeatability in each test.

host X1, power adapter X1, data cable X1, correction box X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
