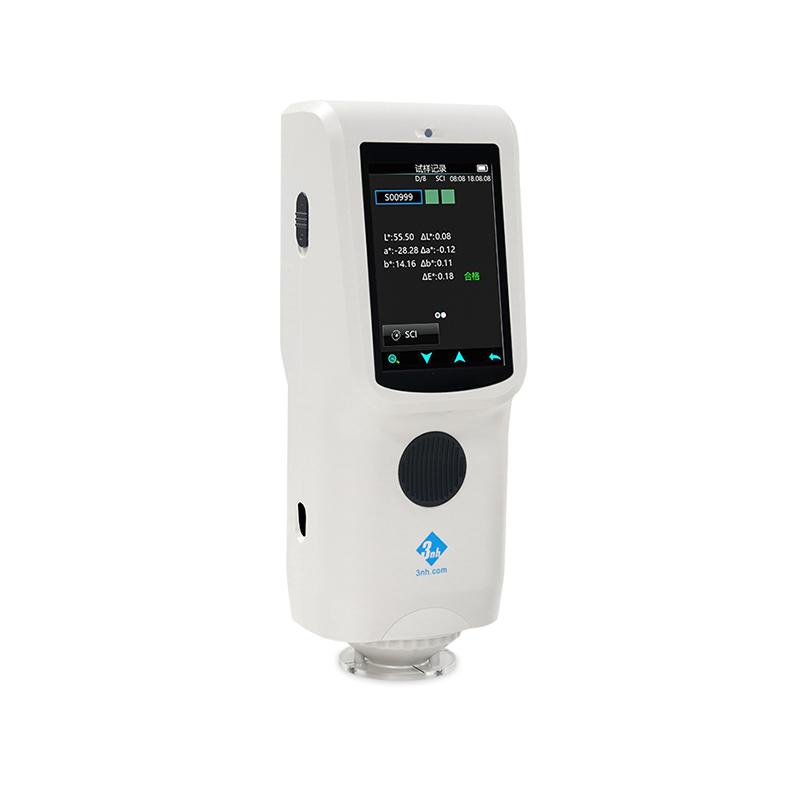

3NH TS7010A Colorimeter Stabilizer Positioning

Introduction

TS7010A is a portable Spectrophotometer developed by 3nh using independent spectroscopic core technology, which is a high-level Colorimeter under the spectroscopic architecture, which not only ensures the accurate relative value ΔE, but also ensures the accuracy of the absolute value L, A and B for a long time, and can pass the measurement of international standards and national standards anytime and anywhere. Using built-in silicon photodiode array (double row 24 groups) sensor, imported whiteboard, repeatability ΔE*ab is easily controlled within 0.1, while taking into account the measurement speed and convenience of operation, no need to connect to a computer or software can also quickly carry out color difference measurement judgment, 8mm measurement diameter to meet the plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries in the production and quality inspection of accurate color difference control.

Features

1. Φ8mm measuring aperture, 10° observer angle, can meet the needs of customers in most industries;

2. Combination of full-spectrum LED light source, planar grating splitting, and true color capacitive touch screen, with a high starting point;

3. Silicon photodiode array (double row 24 groups), display accuracy of 0.1, good repeatability;

4. The life of the light source is more than 3 million measurements in 5 years, and the lithium battery is measured 6000 times within 8 hours, which can be repeatedly charged and has a long battery life;

5. Data storage of 500 standard samples and 10,000 samples for rapid data search, analysis and comparison.

Applications

The TS7010A Spectrophotometer is equipped with an 8mm measuring aperture, which can meet the precise color difference control in the production and quality inspection of various industries such as plastics and electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, etc.

technologyadvantage

1. Ergonomic design

The TS7010A Spectrophotometer has a beautiful, smooth shape and comfortable grip, conforms to the structural design of ergonomics, fits the palm of the hand and is suitable for continuous detection work, so that you can use it quickly and easily.

2. Adopt full-band balanced LED light source

The all-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LEDs in a specific wavelength band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.

3. Silicon photodiode array (dual 24 array) sensor

The larger area of the dual 24 array sensor, strong light will not be saturated, low light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

4. Metrological verification report

Each TS7010A Spectrophotometer has been verified and tested according to the measurement standards of the credible verification department, and the measurement data can be traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.

5. ETC real-time calibration technology

The TS7010A Spectrophotometer adopts imported standard whiteboard, which is resistant to yellowing, dirt does not penetrate, and can be wiped, which ensures the long-term accuracy of the instrument. At the same time, it also adopts the innovative ETC real-time calibration technology (Every Test Calibration), and the optical system has a built-in standard whiteboard, which has reliable accuracy and repeatability in every test.

host X1, power adapter X1, data cable X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
