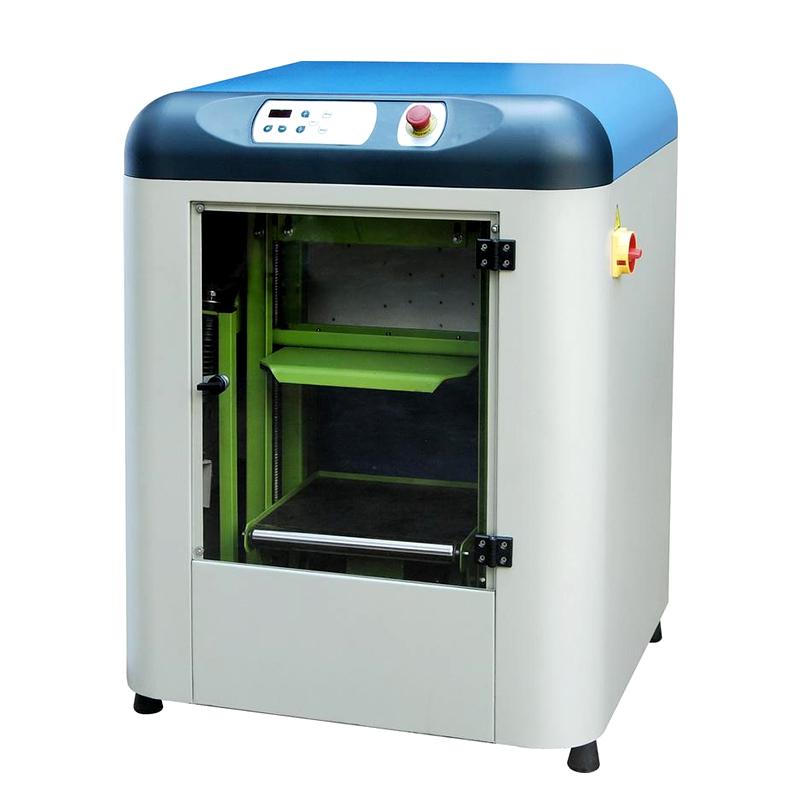

MODERNER HT-30C high-speed oscillator, automatic clamping
MODERNER HT-30C high-speed oscillator adopts automatic clamping, suitable for 0.5-20 liter barrels, Oscillation Frequency 680-710 times/min, HT-30C high-speed oscillator adopts up and down continuous multi-shake operation.
Moderner
HT-30C
-
CHINA NBC-YX-6050 Manual 2D Imager 600 × 500mm
$ 7051.00 -
Water circulation sheet reader ZY-CP-2 papermaking laboratory φ 200 pattern forming equipment
$ 1439.00 -
CHINA NBC-YX-2010 Manual two-dimensional image Measurement Instrument 200 × 100mm
$ 2640.00 -
WRS-01 heat shrinkage Tester, film and other heat shrinkage tests
$ 1454.00 -
Guohua DB-B2 baking machine, power: 200W
$ 368.00
Introduction
In the coating and ink industries, many aspects require dispersion testing under continuous controlled conditions. High-speed oil mixing vibrating machine is widely used in coating or ink systems to analyze the chromaticity of pigments, which is an important economic indicator for us to evaluate the performance of pigments; through dispersion, evaluate the cohesion of pigments; evaluate the dispersion effect of dispersants; Optimized grinding units for specific pigments and specified dispersions. The advantage of the high-speed oil mixing shaker is that multiple samples can be dispersed under the same conditions, thereby increasing the test speed and ensuring the reproducibility and repeatability of the test.
Characteristics
(1) Small size and small floor space.
(2) It is composed of main oscillator, container gland, PLC microcomputer and integrated circuit design. It is suitable for various tanks/barrels of 0.5-20 liters, with a maximum load weight of 30Kg.
(3) PLC microcomputer control is used - the mixing time can be selected and adjusted at will, and the service life is long.
(4) Automatic clamping. It can automatically apply different pressures according to the paint buckets of different specifications, and the paint buckets will not be crushed or deflated during the operation.
(5) High-speed and effective mixing---adopting up, down, front and back continuous multi-shaking operation
Comparison of parameters of HT series oil mixer
| name | Oscillation machine | Oscillation machine | Mixer | Mixer |
| model | HT-40A | HT-30C | HT-40C | HT-40A |
| Application | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel |
| Applicable paint | Height: 100-380mm | Height: 70-390mm | Height: 70-390mm | Height: 70-390mm |
| tank size | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm |
| revolution speed | N/A | N/A | 130/min | 60-200r/min |
| rotation speed | N/A | N/A | 260/min | 120-400r/min |
| Oscillation frequency | 710 times/min | 680-710 times/min | N/A | N/A |
| Clamping method | Manual clamping | Automatic clamping | Manual clamping | Automatic clamping |
| Operating Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| power | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw |
| net weight | 195kg | 210Kg | 200kg | 187Kg |
| gross weight | 240kg | 245kg | 240kg | 228Kg |
| Machine size (height*width*depth mm) | 1040Ã860Ã710 | 1060Ã760Ã825 | 1035Ã800Ã810 | 1010Ã860Ã710 |
| Packaging size (height*width*depth mm) | 1095Ã905Ã805 | 1125Ã800Ã830 | 1105Ã830Ã890 | 1095Ã900Ã800 |
Moderner HT-30C OscillatorSpecifications
| LIST | VALUE |
|---|---|
| Application | 0.5-20 liter barrels |
| Applicable paints can size | Height: 70-390mm; Diameter: 70-300mm |
| Oscillation Frequency | 680-710 times/min |
| clamping method | Automatic clamping |
| Operating Voltage | 220V 50Hz |
| Power | 0.75Kw |
| Net Weight | 210Kg |
| Gross Weight | 245Kg |
| Machine size (height * width * depth) | 1060×760×825mm |
| Packaging Dimensions (height * width * depth) | 1125×800×830mm |
Moderner HT-30C Oscillator Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
