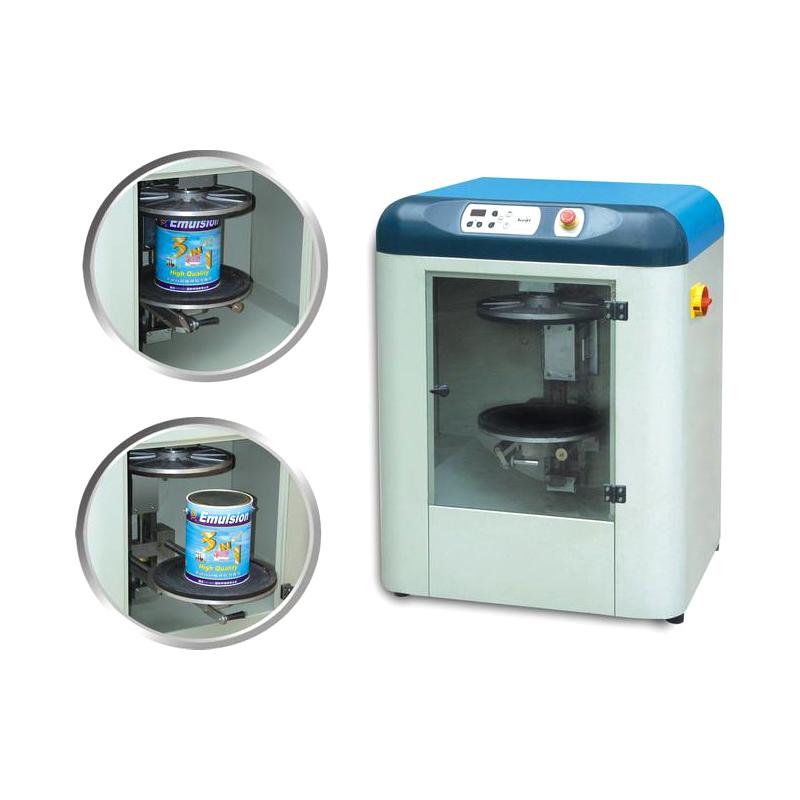

MODERNER HT-40C mixer, hand clamping
The MODERNER oil mixer HT-40C adopts manual clamping, and the revolution speed is 130/min. It is an automatic full and simultaneous oil mixer. The HT-40C is equipped with an aluminum alloy hand-pulled door and has the function of opening and stopping protection.
Moderner
HT-40C
-
SMART SENSOR AR6818 Cable Tester
$ 211.00 -
CHINA NBC-YX-2010 Manual two-dimensional image Measurement Instrument 200 × 100mm
$ 2640.00 -
YUZHOU ZDD-1 Automatic Dropper
Login -
LANDTEK GS-100DA Gaussian meter, Tesla meter, Gaussian meter
$ 262.00 -
Huicheng HC-3500 carbon black content Tester carbon black content, ash content determination
$ 2682.00
Introduction
In the coating and ink industries, many aspects require dispersion testing under continuous controlled conditions. High-speed oil mixing vibrating machine is widely used in coating or ink systems to analyze the chromaticity of pigments, which is an important economic indicator for us to evaluate the performance of pigments; through dispersion, evaluate the cohesion of pigments; evaluate the dispersion effect of dispersants; Optimized grinding units for specific pigments and specified dispersions. The advantage of the high-speed oil mixing shaker is that multiple samples can be dispersed under the same conditions, thereby increasing the test speed and ensuring the reproducibility and repeatability of the test.
Characteristics
(1) The container support table in the machine can be pulled out, rotated and fixed, saving time and effort during use.
(2) During mixing, chemical transformation and rotation are fully carried out simultaneously.
(3) The speed control output is just right during operation to ensure smooth operation.
(4) Door opening shutdown protection device, safe and reliable.
(5) Equipped with aluminum alloy hand-sliding door.
(6) Closed mixing, place various raw materials in closed containers and tanks, and then use this equipment to fully mix and stir.
(7) The Principle is to rotate and vibrate the closed container tank in two directions to achieve effective mixing.
(8) Practice shows that the stirring effect is very outstanding. After stirring, the material is not only uniform but also very fine.
(9) Compared with open-top mixing, it is not only more effective, but also has no leakage of volatile substances, no pollution, and improves the workshop production environment. The air also becomes fresher.
Comparison of parameters of HT series oil mixer
| name | Oscillation machine | Oscillation machine | Mixer | Mixer |
| model | HT-40A | HT-30C | HT-40C | HT-40A |
| Application | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel |
| Applicable paint | Height: 100-380mm | Height: 70-390mm | Height: 70-390mm | Height: 70-390mm |
| tank size | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm |
| revolution speed | N/A | N/A | 130/min | 60-200r/min |
| rotation speed | N/A | N/A | 260/min | 120-400r/min |
| Oscillation frequency | 710 times/min | 680-710 times/min | N/A | N/A |
| Clamping method | Manual clamping | Automatic clamping | Manual clamping | Automatic clamping |
| Operating Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| power | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw |
| net weight | 195kg | 210Kg | 200kg | 187Kg |
| gross weight | 240kg | 245kg | 240kg | 228Kg |
| Machine size (height*width*depth mm) | 1040Ã860Ã710 | 1060Ã760Ã825 | 1035Ã800Ã810 | 1010Ã860Ã710 |
| Packaging size (height*width*depth mm) | 1095Ã905Ã805 | 1125Ã800Ã830 | 1105Ã830Ã890 | 1095Ã900Ã800 |
Moderner HT-40C Oil mixerSpecifications
| LIST | VALUE |
|---|---|
| Application | 0.5-20 liter barrels |
| Applicable paints can size | Height: 100-380mm; Diameter: 70-300mm |
| clamping method | manual clamping |
| Operating Voltage | 220V 50Hz |
| Power | 0.75Kw |
| Net Weight | 200Kg |
| Gross Weight | 240Kg |
| Machine size (height * width * depth) | 1035×800×810mm |
| Packaging Dimensions (height * width * depth) | 1105×830×890mm |
| revolution speed | 130/min |
| Rotation speed | 260/min |
Moderner HT-40C Oil mixer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
