MODERNER HT-40A Automatic mixer, automatic clamping
The MODERNER automatic mixer HT-40A adopts automatic clamping, with an revolution speed of 60-200r/min. It is a fully automatic mixer. The HT-40A has a large door and a forward-extending roller barrel to facilitate the loading of the barrel.
Moderner
HT-40A
-
AMITTARI AT-136PC Multifunctional Rotation speed meter, photoelectric contact dual-use Rotation speed Measurement Instrument
$ 172.00 -
Jingyi JY-30A automatic swirling/spinning oil mixer, intelligent positive and negative two-way swirling/spinning vertical Stirrer
$ 2480.00 -
YUZHOU PG-2C metallographic sample polishing machine, double disc independent operation, large disc diameter
$ 549.00 -
Zibo Coulomb KRH-2 oil and synthetic liquid anti-emulsification performance Tester
$ 1314.00 -
SMART SENSOR AR944M Underground Metal Detector LED Light/Sound Prompt
$ 136.00
Introduction
In the coating and ink industries, many aspects require dispersion testing under continuous controlled conditions. High-speed oil mixing vibrating machine is widely used in coating or ink systems to analyze the chromaticity of pigments, which is an important economic indicator for us to evaluate the performance of pigments; through dispersion, evaluate the cohesion of pigments; evaluate the dispersion effect of dispersants; Optimized grinding units for specific pigments and specified dispersions. The advantage of the high-speed oil mixing shaker is that multiple samples can be dispersed under the same conditions, thereby increasing the test speed and ensuring the reproducibility and repeatability of the test.
Characteristics
(1) High-speed and effective mixing-the paint can be mixed evenly within 30 seconds at the fastest.
(2) Can mix 0.5L-20L barrel paint.
(3) It has low noise during operation and has a certain safety bar.
(4) Having a larger door and a forward-extending roller barrel facilitates barrel loading.
(5) Safety interlock-to prevent the door from being opened when the machine is running.
(6) Can be customized according to the appearance and size of the barrel .
Comparison of parameters of HT series oil mixer
| name | Oscillation machine | Oscillation machine | Mixer | Mixer |
| model | HT-40A | HT-30C | HT-40C | HT-40A |
| Application | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel | 0.5-20L barrel |
| Applicable paint | Height: 100-380mm | Height: 70-390mm | Height: 70-390mm | Height: 70-390mm |
| tank size | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm | Diameter: 70-300mm |
| revolution speed | N/A | N/A | 130/min | 60-200r/min |
| rotation speed | N/A | N/A | 260/min | 120-400r/min |
| Oscillation frequency | 710 times/min | 680-710 times/min | N/A | N/A |
| Clamping method | Manual clamping | Automatic clamping | Manual clamping | Automatic clamping |
| Operating Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| power | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw |
| net weight | 195kg | 210Kg | 200kg | 187Kg |
| gross weight | 240kg | 245kg | 240kg | 228Kg |
| Machine size (height*width*depth mm) | 1040Ã860Ã710 | 1060Ã760Ã825 | 1035Ã800Ã810 | 1010Ã860Ã710 |
| Packaging size (height*width*depth mm) | 1095Ã905Ã805 | 1125Ã800Ã830 | 1105Ã830Ã890 | 1095Ã900Ã800 |

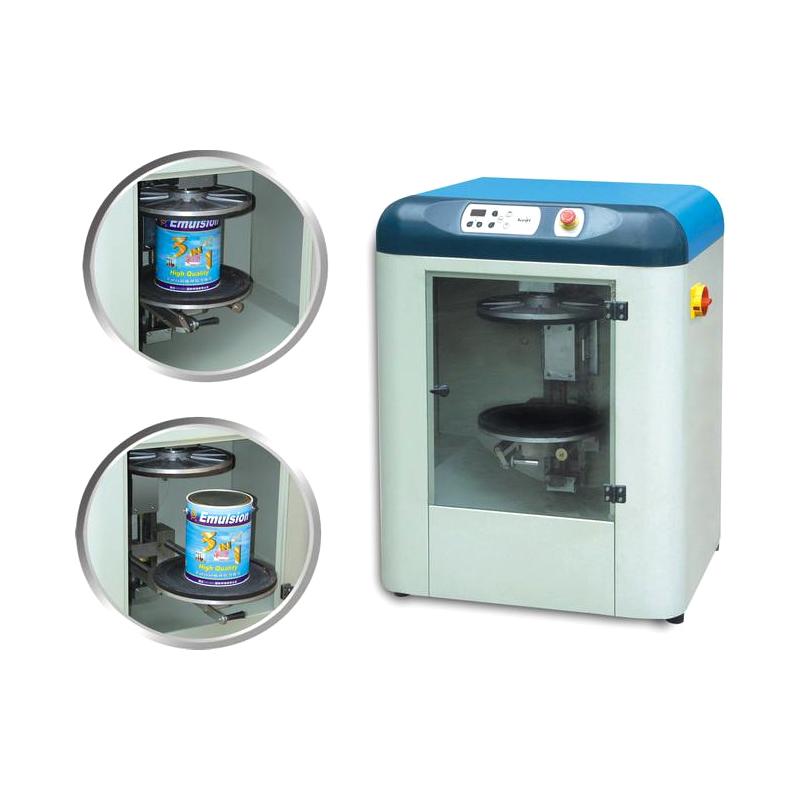

Moderner HT-40A Oil mixerSpecifications
| LIST | VALUE |
|---|---|
| Application | 0.5-20 liter barrels |
| Applicable paints can size | Height: 70-390mm; Diameter: 70-300mm |
| clamping method | Automatic clamping |
| Operating Voltage | 220V 50Hz |
| Power | 0.75Kw |
| Net Weight | 187Kg |
| Gross Weight | 228Kg |
| Machine size (height * width * depth) | 1010×860×710mm |
| Packaging Dimensions (height * width * depth) | 1095×900×800mm |
| revolution speed | 60-200r/min |
| Rotation speed | 120-400r/min |
Moderner HT-40A Oil mixer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
