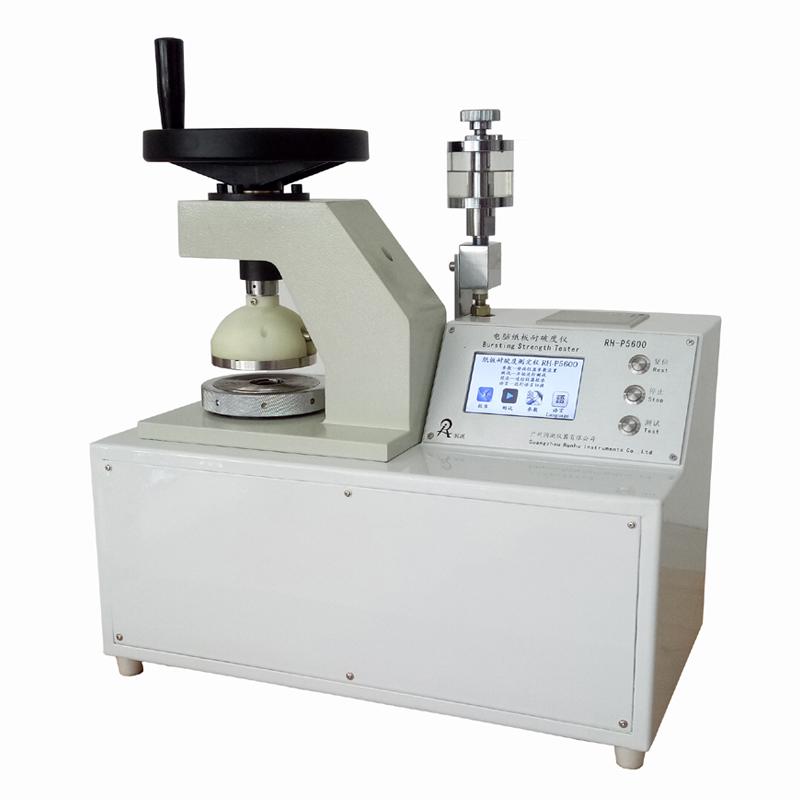

RUNHU RH-P5600 Computer Cardboard Burst Tester

Introduction

RH-P5600 computerized cardboard burst resistance Tester is the basic instrument for testing the burst strength of cardboard and corrugated cardboard, which is used to test the burst strength of various types of cardboard, and conforms to ISO2759, QB/T1057, GB/T1539 and TAPPI T807 standards.

Features

1. High precision

Using high-precision pressure sensor, the accuracy is controlled at <0.3% when leaving the factory, which is better than the ±0.5%FS specified in the standard.

2. Technical major

The company's professional design and programming team can upgrade the instrument to ensure the professional level of the instrument.

3. Good sealing and durability

Good copper cylinder and precision design processing make the test system have good sealing and durability, precision screw drive, aluminum alloy panel, good stainless steel measuring head and reasonable design to ensure that the instrument is durable.

4. Easy to use and easy to operate

Touch screen Chinese display (real-time curve), friendly man-machine interface operation. Automatic completion of the test, with test data statistical processing function, micro printer output, can also be connected to the computer operation. When connected to a PC, in addition to automatically memorizing and storing the results, it is also possible to display and save the blasting process curve during the test.

5. The test process is completed quickly and the results are accurate

The handwheel clamping device, double high-precision pressure sensor, and American chip control are adopted, so that the clamping force value and test results can be displayed in real time. The clamping force value can be preset, making the test faster and the results more accurate.

6. Easy to measure and calibrate

The calibration program is specially set up inside the instrument, which is convenient for the measurement and calibration department (third party) to calibrate the instrument. During calibration, enter the calibration test program, take the oil cup down, and replace its interface with a calibration sensor to easily calibrate the indication error.

7. Diversity of unit selection

Users can switch between kPa and psi and kgf as needed.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
