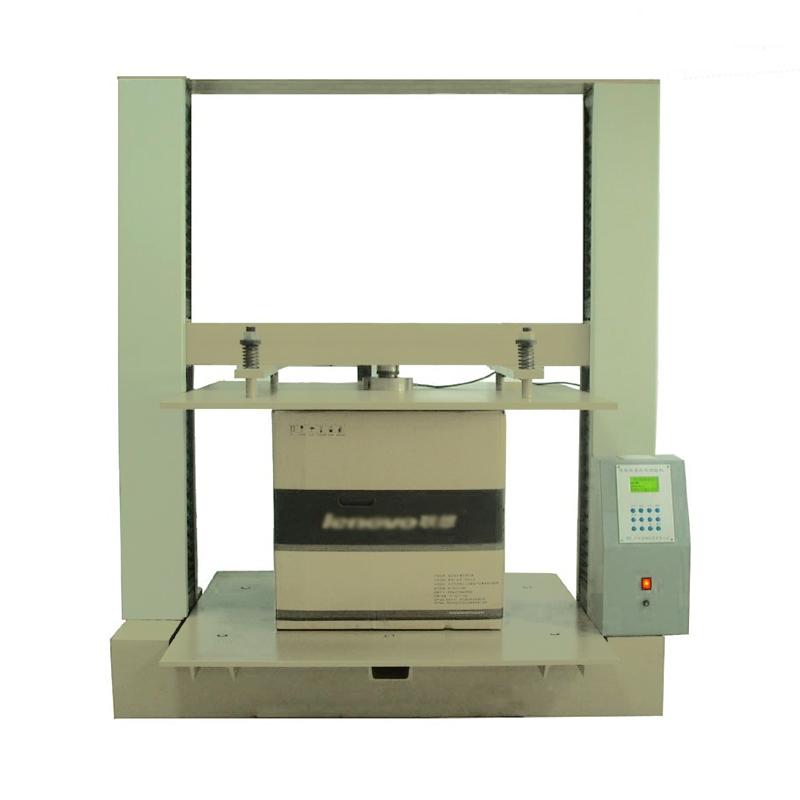

RUNHU RH-KY10 Computer Carton Compression Tester

Introduction

RH-KY10 computerized carton compression testing machine is a commonly used testing instrument for testing carton compression, which is widely used for testing cartons of various specifications and sizes. Its commonly used specifications are: 500×600×600mm, 800×800×800mm, 1000×1000×1000mm, 1200×1500×1500mm. The measuring range is 2t, 3t, 5t. The instrument has three basic tests for carton detection: compressive strength test, standard test, and stacking strength test. Comply with ISO2872, ISO2874, GB4857.4 and other standards.

(1) Compressive strength test: used to determine the ultimate compressive strength of the sample. The machine automatically records the peak downforce and the compressive deformation of the specimen.

(2) Standard test: the overall performance of the box can be tested according to the set pressure and deformation, and the necessary test data can be provided for the design and selection of the box;

(3) Stacking strength test: used to determine the pressure durability of the sample under simulated packaging and storage conditions. According to the requirements of national standards, stacking tests can be carried out under different conditions such as 12 hours and 24 hours.

Features

1. High precision and stable performance

Using high-precision load cell, the accuracy is controlled at <0.5% when leaving the factory, which is better than the ±1% of the ISO standard. Strong resolution: such as the measuring range of 20kN (2 tons), the resolution rate is up to 1N. Due to the use of stepper motor, precision ball screw transmission, coupled with reasonable design and precision machining, the high reliability and stability of the instrument are guaranteed.

2. Long life

Precision ball screw drive, aluminum alloy panel, good machining technology and reasonable design ensure that the instrument is durable. Our company's professional design and programming team can also upgrade the instrument to ensure that the instrument is at the top level.

3. Wide range of use

In addition to the compressive strength test, compliance test and stacking strength test of cartons, the instrument can also carry out pressure resistance tests on other packaging materials (cans, bottles, etc.).

4. Easy to use and easy to operate

LCD Chinese display, friendly man-machine interface operation. Fully automatic completion of the test, with test data statistical processing function, micro printer output, can also be connected to the computer operation. When connected to a PC, in addition to automatically memorizing and storing results, it is also possible to display and save compression curves.

5. Fast and effective in testing

The preset test speed and reverse travel speed as well as the free adjustment of the upper platen position make the test faster and more effective.

6. Easy to measure and calibrate

The load cell is located above and connected to the upper platen, and the user or the metrology and calibration department (third party) can easily calibrate the instrument by placing the standard sensor in the middle of the upper and lower platens for calibration.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
