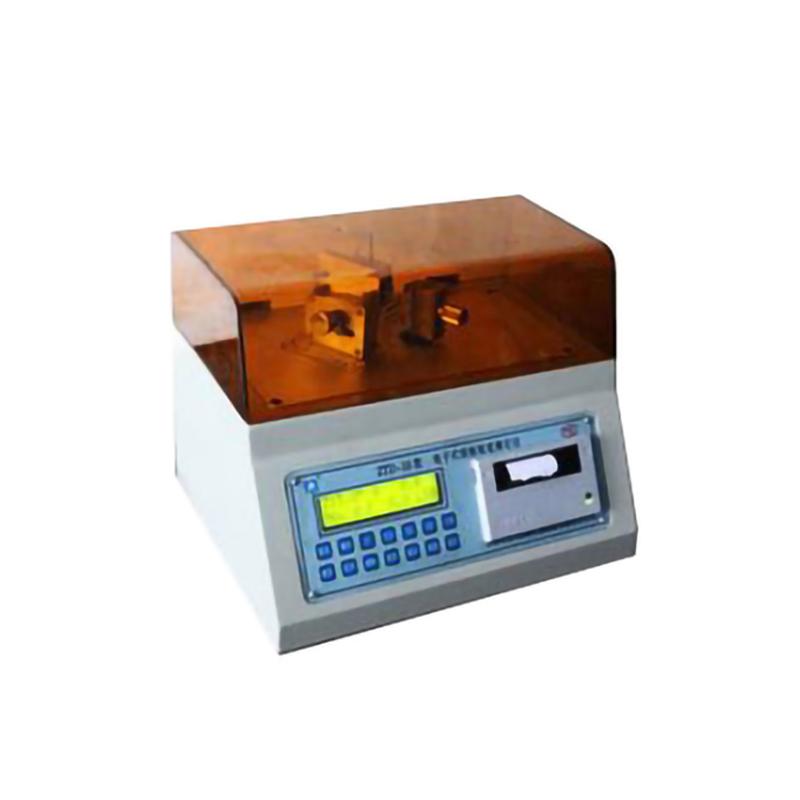

JINGJI ZTD-10A Cardboard Stiffness meter

JINGJI ZTD-10A Cardboard Stiffness meter is a special instrument for measuring the stiffness of paper and Cardboard, especially suitable for measuring the stiffness of paper and Cardboard with low quantification and thickness less than 1mm. ZTD-10A Cardboard Stiffness meter Measurement range 0-10000mN, error of indication +/- 1, test length 5, 10, 15, 20, 25, 50mm six kinds.

Brand

SKU: NB033374

jingji

Model

ZTD-10A

Get Quote

jingji

Information

Datasheet

What else did others buy

Puyun PY-J632 Cup body stiffness Tester 0-20N

$ 2216.00
LD-TD-A-01 Bending Stiffness Tester

$ 1678.00
CHINA BLD-TD17 Computer measurement and control Stiffness meter

$ 1636.00
YINUO YN-TDY01 Microcomputer Bending Stiffness Tester ≤ 500mN · m

$ 2612.00
CHENCHI ZTD-10A paper Cardboard Stiffness Meter 38 * 70mm

$ 2029.00

Genuinegoods

jingji ZTD-10A Cardboard Stiffness meterOverview
Specifications
Comments
FAQs

ZTD-10A

Cardboard Stiffness meter

Functional use

The cardboard stiffness Tester is an international standard Taber stiffness Tester, which is an index to measure the bending strength of paper and cardboard. This instrument is a special instrument used to determine the stiffness of paper and cardboard, and is especially suitable for measuring the stiffness of paper and cardboard with low weight and thickness less than 1mm. This instrument is designed according to the principle of static bending, that is, the free end of a vertically clamped specimen is bent, and the resistance when the specimen reaches a certain bending angle is the bending stiffness, and its unit is mN; or the product of resistance and test length, in mN.m. This instrument fully meets the requirements of the ISO5628 "Paper and Cardboard - General Principles for Static Flexural Stiffness Determination".

jingji ZTD-10A Cardboard Stiffness meterSpecifications

LIST	VALUE
Measurement range	0~10000mN
error of indication	±1
bending length	50mm、25mm、20mm、15mm、10mm、5mm
bending angle	5°~30°
Rotation speed of gripper	200 +/- 20 ° (degrees/min)
Specimen size	Specimen width 38 +/- 0.2mm Specimen length 70mm
Dimension	330340230mm
Weight	10.55Kg

jingji ZTD-10A Cardboard Stiffness meter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
