Introduction

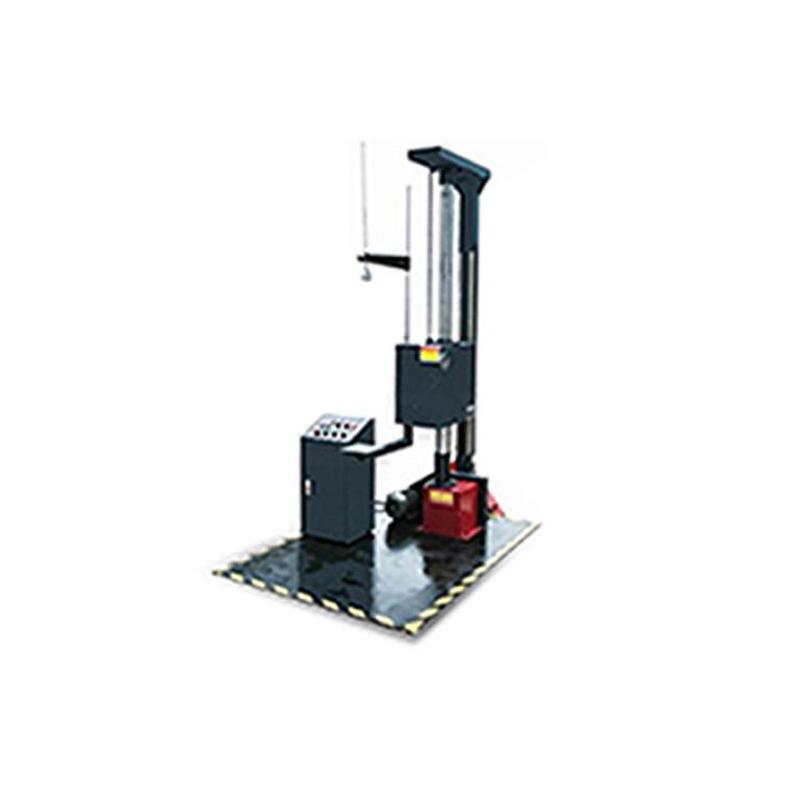

Carton Drop Tester DLJ-2000 is used to simulate the impact of cartons, wooden boxes, woven bags and other packaging parts in the process of transportation, loading and unloading, and to identify the impact resistance of packaging and the rationality of packaging design. The instrument can adjust a variety of test modes such as point, surface, flute, etc., to simulate various impact environments. Carton Drop Tester DLJ-2000 test height adjustable, to meet a variety of experimental conditions, is the quality inspection center, packaging manufacturing enterprises, the use of enterprises required by the test instrument.
Scope of application
| Product name | Scope of application |
| carton | It is used to simulate the impact of corrugated boxes, wooden boxes and other packages in the process of transportation, loading and unloading, and can be dropped from multiple angles such as point, surface and flute. |
| Woven bags | It is used to simulate the impact of drops on woven bags, liquid bags and other packaging parts during transportation, loading and unloading. |
Technical characteristics
★ It is used for test surface drops, corner drops, edge drops, and simulates various impact environments
★ The test height is adjustable and can be used in a wide range of applications
★ Electronic test mode, one-button operation
★ The height display of the carton drop testing machine adopts encoder induction, and the displacement is accurate
Standards
GB/T 4857.5
configuration
Standard configuration: carton Drop Tester host, controller
sumspring DLJ-2000 Carton Dropping TesterSpecifications
| LIST | VALUE |
|---|---|
| drop height | 300~1500mm |
| test load | 65Kg |
| Maximum size of specimen | 800*800*800mm |
| Baseplate size | 1700*1200mm |
| Drop height error | ±10mm |
| Drop plane error | <2° |
| Dimensions | 1700*1200*2300mm |
| Weight | 260kg |
| Environmental temperature | 15℃-35℃ |
| Relative Humidity | Up to 70RH% |
| Power Supply | 380V 50Hz |
| Baseplate thickness | 14mm |
sumspring DLJ-2000 Carton Dropping Tester Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
