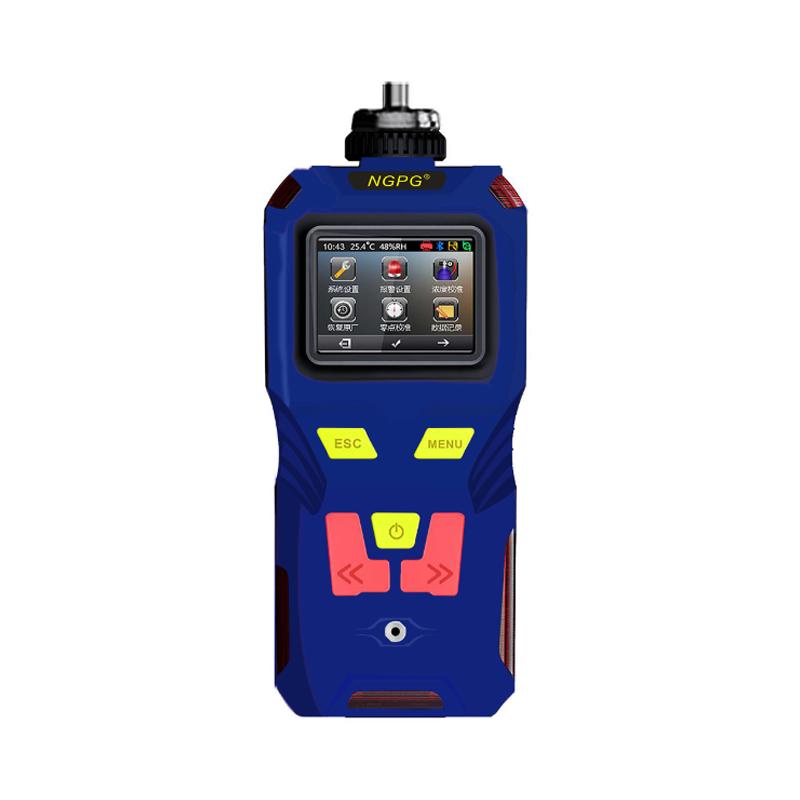

Gaopin NGP40-CO Portable Multifunctional Carbon Monoxide Detection Alarm Instrument

Introduction

NGP40-CO portable multi-function carbon monoxide gas detection and alarm instrument is used for portable and rapid detection of multiple gas concentration, temperature and humidity measurement and alarm exceeding the standard. NGP40-CO portable multi-function carbon monoxide gas detection and alarm instrument uses 2.4-inch high-definition color screen to display the concentration in real time, and uses a familiar brand of gas sensor, the main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoion. Professional circuit design, mature kernel algorithm processing, and obtained a number of software patents and appearance patents. NGP40-CO portable multi-function carbon monoxide Detector can detect the gas concentration in pipelines or confined spaces and atmospheric environments, and can detect gas leakage or high concentration single gas purity of various background gases as nitrogen or oxygen, and detect more than 1000 kinds of gases.

Features

● Waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference,

●IP65 protection level, built-in water vapor and dust filter, to prevent damage to sensors and instruments due to water vapor and dust

●Built-in pump-suction measurement, fast response, sampling distance greater than 10 meters, special gas path design, can directly detect negative pressure or positive pressure -0.5~2 kg of gas, no impact on the measurement results

●The 2.4-inch high-definition color screen displays real-time concentration, alarm, time, storage, communication, power, charging status and other information, and the menu interface uses high-definition simulation icons to display the function names of each menu

●Large-capacity data storage function, standard 100,000 pieces of data storage capacity, larger capacity can be customized. It supports real-time storage, timing storage, or only storage of alarm concentration data and time, supports local viewing, deletion of data, and can also upload data to the computer through the USB interface, and use the host computer software to analyze the data, store and print.

●USB charging interface, can be charged by computer or power bank, compatible with mobile phone charger, overcharge, overdischarge, overVoltage, short circuit, overheat protection, 5 levels of accurate power display, support USB hot swap, the Detector can work normally when charging, optional RS485 communication

●Using 4500mA large-capacity rechargeable polymer battery, it can work continuously for a long time

●Sound and light alarm, vibration alarm, visual alarm, under-Voltage alarm, fault alarm, multi-directional three-dimensional display alarm status during alarm.

●The alarm value can be set, and the alarm mode can be selected as low alarm, high alarm, interval alarm and weighted average alarm

●High-precision temperature and humidity measurement (optional), at the same time, the temperature compensation of the sensor, the temperature range of the instrument is -40~60 degrees,It can detect 400 degrees of gas, and higher temperature gas detection can be customized (optional high-temperature sampling cooling filter handle or high-temperature and high-humidity pretreatment system)

●All-in-one gas detection alarm instrument that can be equipped with any four (1-4 types) gas sensors at the same time.

●Three display modes can be switched: display four gas concentrations at the same time, large font cycle display of single-channel gas concentration, real-time curve, each channelYou can switch between automatic and manual cycles, and you can set whether to display the maximum value, minimum value, and gas name, and view the history curve graph.

●Chinese and English interface can be selected, default Chinese interface, concise Chinese or English operation tips

● Data recovery function, selective recovery or full recovery, free from worries caused by misoperation

●Zero point automatic tracking, long-term use is not affected by zero point drift.

●Three-level calibration of the target point to ensure the linearity and accuracy of the measurement, and can meet the national standards and the standards of the local metrology bureau at the same time.

●Concentration calibration misoperation is automatically identified and prevented, which can avoid defects caused by human factors.

●It can be detected in real time or at regular intervals (for the case that the amount of gas to be measured is relatively small), and the pump can be turned off when it is not detected to prolong the start-up time.

●It can record calibration logs, maintenance logs, fault solving countermeasures, sensor life expiration reminders, and next concentration calibration time reminders

Standard accessories

Manual, certificate, warranty card, USB charger (including data cable), high-grade aluminum alloy instrument case, crocodile clip,CD-ROM (upper computer communication software), humidity dust filter 1

Optional

Temperature and humidity measurement, 1.2 m retractable sampling handle (1-10 m hose, standard length 1 m),High temperature sampling and cooling filter handle, high temperature and high humidity pretreatment system, multiple humidity dust filters, lanyards

Applications

Chemical, petroleum, environmental protection flue gas analysis, pipeline, boiler gas analysis, air treatment and other occasions that need to detect gas concentration

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
