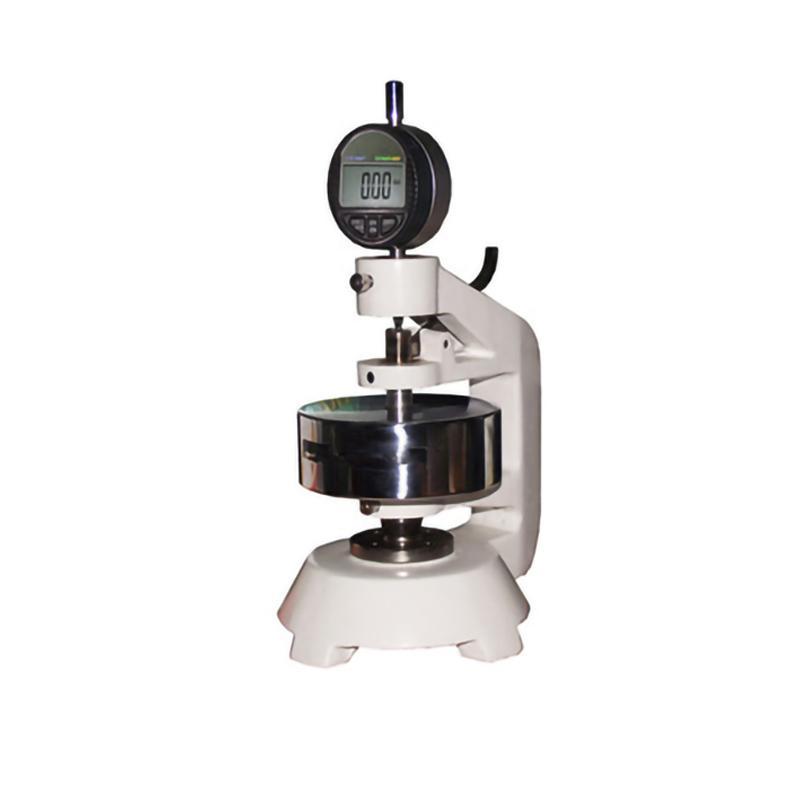

ZHONGNUO ZNHK-210A Paper thickness Tester
ZHONGNUO ZNHK-210A Paper thickness meter is a special instrument for measuring Paper thickness, widely used in paper, Cardboard and Miscellaneous sheet material thickness measurement, ZNHK-210A Paper thickness meter Measurement range 0-5mm, accuracy 0.001mm, error of indication 0.05%, contact area 1000 +/- 20 mm2, contact pressure 2 +/- 0.1kpa, parallelism ≤ 0.035mm.
zhongnuo
ZNHK-210A
-
JINGWEN JW105-3 Automatic paper Thickness Gauge
$ 2828.00 -
Puyun PY-H606D Automatic Film thickness Tester 6mm Automatic calculation of tightness
$ 1888.00 -
CCYONGXIN ZHD-4 Paper and Cardboard Electric Thickness Gauge
$ 818.00 -
YANTE YTH-4E Computer Thickness Gauge Digital display paper Cardboard Thickness Gauge 4mm/0.001mm
$ 2219.00 -
YANTE YTH-4A paper Thickness Gauge 4mm/0.01mm
$ 474.00
Applications
ZNHK-210A paper thickness Tester is a special instrument used to measure paper thickness. It is widely used for thickness determination of paper, cardboard and other sheet materials. The instrument is cardboard, which is an indispensable common instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.
Meets standards
GB/T 24328.2 Paper and Articles Thereof
ISO 438 "Paper – Determination of Lamination Thickness and Tightness".
ISO 534 "Paper and cardboard - Determination of the thickness of a single layer and calculation of the tightness of cardboard";
zhongnuo ZNHK-210A Paper thickness MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 0~5mm |
| Measurement Accuracy | 0.001mm |
| Error of indication | ±0.05% |
| Contact area | 1000±20mm² |
| Contact Pressure | 2±0.1kpa |
| Measurement plane parallelism | ≤0.035mm |
| Operating Environment | Temperature (20 +/- 10) ℃, Humidity < 85% |
| Dimensions | 100*150*200mm |
| Weight | 2kg |
zhongnuo ZNHK-210A Paper thickness Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
