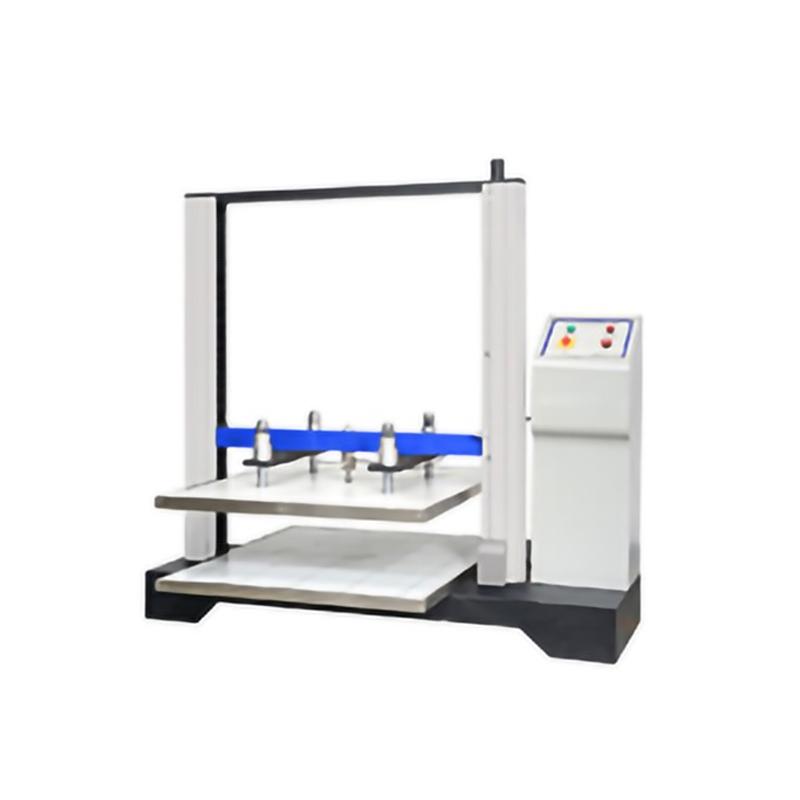

PINKE PK-501A Servo System Carton Compression Tester
The PINKE PK-501A servo system carton compression testing machine can perform four tests: constant pressure deformation, fixed deformation resistance pressure, maximum crushing force and stacking test. The accuracy level of the PK-501A servo system carton compression testing machine is level 1, the test force test range is 0.4%~ 100% FS, the force accuracy is within +/- 1%, and the force analysis degree is 1/200000.
pinke
PK-501A
-
YINUO YN-KY1000 Microcomputer compressire strength Tester 1.0 * 1.2 * 1.2 meters
$ 5139.00 -
HENGPIN HP-KYJ-03 Carton Compression Tester 50KN Test Size 300mm
$ 3195.00 -
CHINA BLD-600D paper tube compression machine 400mm
$ 1683.00 -
YANTE YT-NH23 gluing test stand
$ 240.00 -
PUYUN PY-H620-1200 Microcomputer compressire strength Tester 1.2 * 1.2 * 1.2 meters
$ 5045.00
Description
It is suitable for corrugated boxes, honeycomb boxes and other packaging parts to carry out pressure resistance (maximum crushing force), deformation, stacking test, the equipment adopts Intel central processing unit to control the test process, full digital circuit, professional measurement and control software support, the test function is powerful, can carry out constant pressure deformation, deformation measurement pressure, maximum crushing force and stacking test four tests, fully meet the test requirements of cartons.
Meet the criteria
ISO2874、TAPPIT804、JIS Z0212、ISO2872、NF H3 001、CNS 2236/3511、QB/T 1048
pinke PK-501A Servo system carton compression testing machineSpecifications
| LIST | VALUE |
|---|---|
| load cell | Level 0.5 high-precision Power Sensors |
| Maximum test force | 5000kg |
| Accuracy level | Level 1 |
| Test force test range | 0.4%~100%FS |
| Force Accuracy | +/- 1% or less |
| Analysis | 1/200000 |
| force magnification | full automatic |
| Displacement error of indication | +/- 1% of the indication |
| Displacement resolution | 0.005mm |
| Control mode | Fully computer controlled |
| Transmission mode | AC servo motor + driver |
| Motor function | 2.0Kw |
| Test speed range | 10~300min/mm |
| Speed Accuracy | +/- 1% of the indication |
| Test space | 1000 * 1000 * 1000 mm, 1200 * 1200 * 1200 mm, 1500 * 1500 * 1500mm optional, can also be customized according to customer requirements |
| display system | Special software for material testing machine developed by PK-2000 based on XP leveling |
| Automatic shutdown device | 1. Upper and lower limit travel protection device 2. Maximum Capacity overload protection 3. Leakage protection |
| Volume | 150×100×200cm |
| Weight | About 1000kg |
| Power supply Voltage | AC~220V 50Hz |
pinke PK-501A Servo system carton compression testing machine Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
