Germany erichsen 295/III Cross Hatch Cutter 1mm Pitch
The German Erichsen 295/III Cross Hatch Cutter is a 1mm pitch single-edged paint film cross-cutting instrument, and the Erichsen 295/III paint Cross Hatch Cutter comes with 10 1mm thick folds that can be swirl/spin mounted.
Erichsen
erichsen 295/III
-
HUITAO HT-430P electric cross-cut tester, desktop PLC control automatic cross-cut adhesion testing
$ 8912.00 -
JINGKELIAN SISI adhesion board, suitable for measuring the surface paint film of plastic and wood furniture
$ 174.00 -
QFH film cross-cutting instrument YONGLIDA Adhesion Tester comes standard with two knife heads
$ 132.00 -
Pushen HGQ 1mm Single Blade Cross Hatch Cutter for Determination of Adhesion by Coating Cross-cut Method
$ 182.00 -
QFH cross-cut Tester QFH-A600 JFL Adhesion Tester organic coating adhesion
$ 132.00
The Erichsen295 lacquered scratch cutter meets all mark test criteria. It consists of a plastic handle and a cutter head mounted on it, which can be adjusted to the most comfortable position for the operator. Different types of bits are available, and an EN ISO 2409 compliant tape is available.

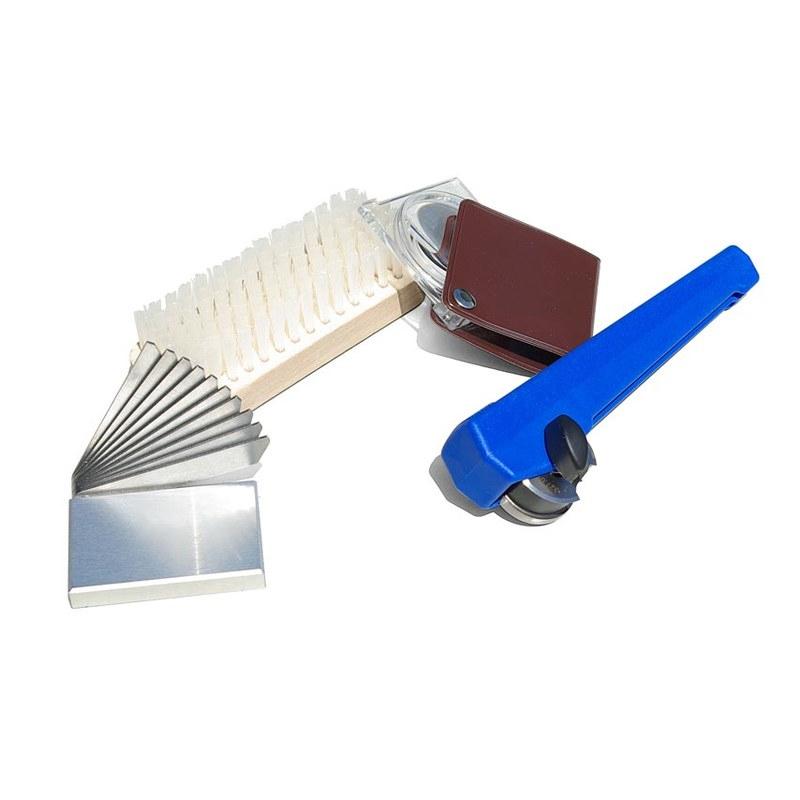

The Erichsen295 scratching instrument is supplied in a complete range of products, including a cutter head mounted on a plastic handle. It comes in a sturdy plastic carrying case, and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged bits, a folding ruler is also available. The instrument also comes with a manufacturer's certificate M.
Comparison of the parameters of the Erichsen griddle series
standard | Film thickness | Knife size x spacing(mm) | Model |
ISO 2409 EN ISO 2409 JIS K 5600-5-6 | Up to 60 μm 60~120μm 120~250μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 1 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
EN 13523-6 (formerly ECCA-T6) | Up to 60 μm 60μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
2 x 5 | 295/IV, 295/III, 295/XII, 295/XIII | ||
VDA 621-411 | Up to 60 μm 60~120μm >120 μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
ASTM D 3359 | Up to 50 μm 50μm~125μm | 11 x 1 | 295/V, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
DBL 5416 | It does not depend on the film thickness | 6 x 1.5 | 295/XII |
ISO 2409-1972 BS 3900:E NFT 30-038 | Conventions | 11x2 | 295/VI |
1. After 1994, the European standard ENISO2409 replaced the national standard DIN53151, BS3900:E6, NFT30-38, NEN5337 and SIS184172.
2. After the scratch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be performed with the following instruments:
ERICHSEN CUP-CONVEX TESTER, MODEL 200, 202, 202C OR 204
Complies with ASTMD3359 impact test set 304ECCA
3. on soft substrates.
4. on hard substrates.
Erichsen erichsen 295/III Cross-cut knifeSpecifications
| LIST | VALUE |
|---|---|
| Tooth spacing | 1mm |
| Instrument material | stainless steel |
| Handle material | plastic |
| Cutter head material | stainless steel |
| Application standard | VDA 621-411、EN ISO 2409、ASTM D 3359、JIS K 5600-5-6、EN 13523-6 |
| number of blades | 1 |
Erichsen erichsen 295/III Cross-cut knife Packing list
Cross Hatch Cutter × 1, Paper Encasement Box × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
