Germany erichsen 295/XIII Single Blade Cross Hatch Cutter 1mm/2mm/3mm Pitch
The German Erichsen single-blade Cross Hatch Cutter 295/XIII has only one blade and is equipped with a folding ruler to cross-cut. Five 1mm, 2mm, and 3mm thickness folding rulers are standard. The Erichsen 295/XIII meets ISO and ASTM standards.
Erichsen
erichsen 295/XIII
-
TRUIT TR 5006/3 cross-cut plate cross-cut number 6
$ 145.00 -
TQC SP1703 cross-cut cutter head 6 teeth, spacing 2mm for CC2000/CC3000 series
$ 346.00 -
TRUIT TR 5006A Multifunctional cross-cut board cross-cut 7, 11
$ 133.00 -
TRUIT TR 5006/1 coating cross-cut plate cross-cut number 11
$ 145.00 -
Shanghai PUSHEN 2mm * 6 Tooth Cross Hatch Cutter
$ 148.00
The Erichsen295 lacquered scratch cutter meets all mark test criteria. It consists of a plastic handle and a cutter head mounted on it, which can be adjusted to the most comfortable position for the operator. Different types of bits are available, and an EN ISO 2409 compliant tape is available.

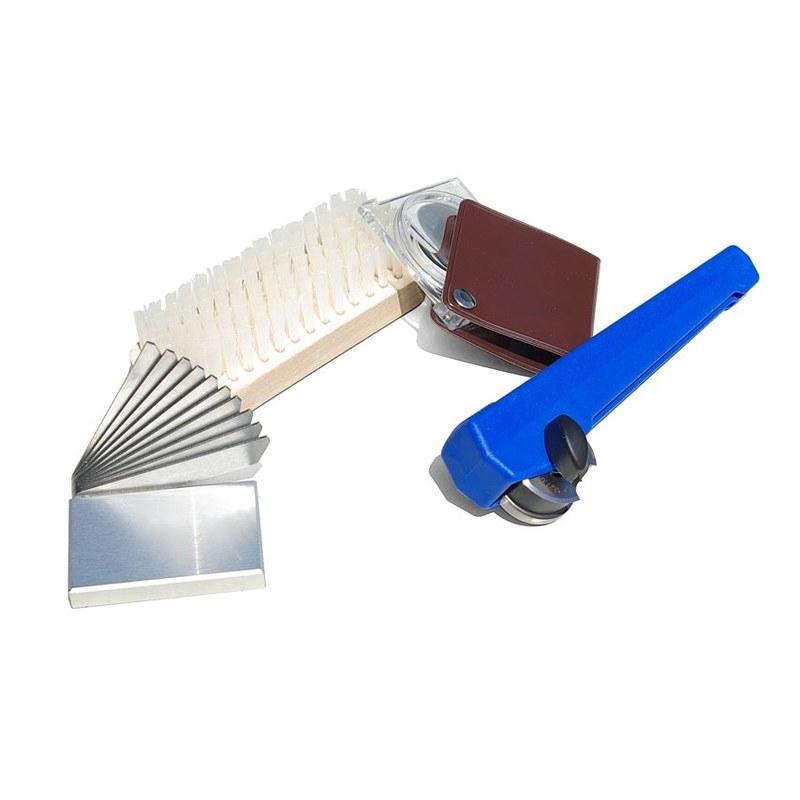

The Erichsen295 scratching instrument is supplied in a complete range of products, including a cutter head mounted on a plastic handle. It comes in a sturdy plastic carrying case, and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged bits, a folding ruler is also available. The instrument also comes with a manufacturer's certificate M.
Comparison of the parameters of the Erichsen griddle series
standard | Film thickness | Knife size x spacing(mm) | Model |
ISO 2409 EN ISO 2409 JIS K 5600-5-6 | Up to 60 μm 60~120μm 120~250μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 1 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
EN 13523-6 (formerly ECCA-T6) | Up to 60 μm 60μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
2 x 5 | 295/IV, 295/III, 295/XII, 295/XIII | ||
VDA 621-411 | Up to 60 μm 60~120μm >120 μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
ASTM D 3359 | Up to 50 μm 50μm~125μm | 11 x 1 | 295/V, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
DBL 5416 | It does not depend on the film thickness | 6 x 1.5 | 295/XII |
ISO 2409-1972 BS 3900:E NFT 30-038 | Conventions | 11x2 | 295/VI |
1. After 1994, the European standard ENISO2409 replaced the national standard DIN53151, BS3900:E6, NFT30-38, NEN5337 and SIS184172.
2. After the scratch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be performed with the following instruments:
ERICHSEN CUP-CONVEX TESTER, MODEL 200, 202, 202C OR 204
Complies with ASTMD3359 impact test set 304ECCA
3. on soft substrates.
4. on hard substrates.
Erichsen erichsen 295/XIII Cross-cut knifeSpecifications
| LIST | VALUE |
|---|---|
| Tooth spacing | 1mm、2mm、3mm |
| Instrument material | stainless steel |
| Handle material | plastic |
| Cutter head material | stainless steel |
| Application standard | VDA 621-411、EN ISO 2409、ASTM D 3359、JIS K 5600-5-6、EN 13523-6 |
| number of blades | 1 |
Erichsen erichsen 295/XIII Cross-cut knife Packing list
Cross Hatch Cutter × 1, Paper Encasement Box × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
