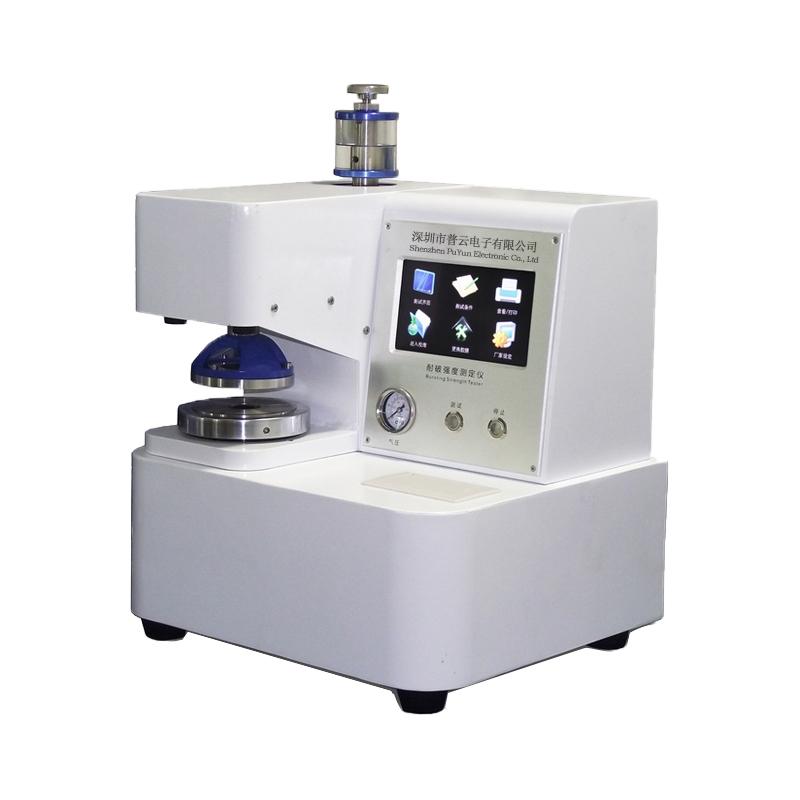

PUYUN PY-H602 Computer paper Burst Tester

PUYUN PY-H602 computer paper bursting instrument is suitable for box Cardboard, kraft paper, cardboard, corrugated paper, gray board paper and so on, PY-H602 computer paper bursting instrument Measurement range 50~1600kpa, force resolution 1/100000, Data analysis sampling Frequency 400 times/second, Precision ≤ +/- 0.5%, resolution 0.01kpa.

Brand

SKU: NB033484

PuYun

Model

PY-H602

Get Quote

PuYun shop

Information

Datasheet

What else did others buy

CHINA ZY-NP-1 paper Burst Tester

$ 1371.00
HUIDA HD-6006 Automatic Break Tester, Cloth Carton Leather Tester

$ 1309.00
HUIDA HD-6006-A Breaking strength Tester, carton compression Tester

$ 1262.00
Essence LD - NP-CMP Cardboard Burst Strength Tester, Vertical Touch Screen Version

$ 1069.00
Essence LD-NP-01 Burst Strength Tester Cardboard Classic, Horizontal Button Version

$ 1069.00

Genuinegoods

PuYun PY-H602 Computer paper Burst TesterOverview
Specifications
Comments
FAQs

PY-H602

Computer paper Burst Tester

Introduction

Computerized paper burst resistance Tester, also known as burst Strength Tester, burst resistance testing machine is used to detect the breaking strength and burst resistance index of paper, suitable for cardboard, kraft paper, cardboard, corrugated paper, gray board paper and other papers.

Standard basis

GB/T454 Determination of paper burstability, QB/T 1057 paper and cardboard burstability Tester, ISO 2758 paper burstability determination

Gift: 2 rolls of thermal printing paper, 1 bottle of silicone oil, 2 pieces of low-pressure rubber film, 5 pieces of low-pressure correction sheet imported from Japan, and 1 special wrench for burst-resistant instrument.

PuYun PY-H602 Computer paper Burst TesterSpecifications

LIST	VALUE
Measurement range	50~1600kpa
Analysis	1/100000
Data analysis sampling	Sampling Frequency 400 times/second
Precision	≤±0.5%
Resolution	0.01kpa
deformation error	≤1mm
Concentricity of Upper/Lower plates	≤0.25mm
Film resistance	Resistance range (30 +/- 5) kPa at raised height (9 +/- 0.2) mm
Oil delivery speed	95±5mL/min
platen diameter	Upper plate diameter: 30.5 +/- 0.1mm, lower plate diameter: 33.1 +/- 0.1mm
drive structure	All-steel chain drive to prevent compression deviation from detection deviation and improve detection stability
deformation monitoring	Chord length 41mm three-dimensional semi-circular full-view Viewing Window, with protective cover Safety Devices
clamping positioning	360 ° free orientation positioning test head
circuit board chip protection	Comes with water vapor filtrating device to protect the stability of the circuit device.
System Power Supply	Fully enclosed solid state Power Supply
Hydraulic system	Fully Enclosed, Anti-Loss and Anti-Collision, High Stability.
Body structure	The two wings of the fuselage are reinforced with thickened steel plates to prevent the displacement and deformation of the Upper/Lower clamps during testing
Display	7In liquid crystal display, real-time display of test data, the replacement film adopts a separate three-station program control, that is, the cylinder program interface, the pressure control interface, the pressure control interface, the three interface switching, the replacement film is convenient and simple.
Clamping Force	100~1200Kpa
unit conversion	Kg/cm2、kpa、lbf/in2
language switch	Free switching of Chinese and English bilingual languages
printout	modular integrated thermal printer
Operating Environment	Temperature (20 +/- 10) ℃, Humidity < 85%
Dimensions	430410650mm
Weight	About 55Kg
gas source	Customer provided

PuYun PY-H602 Computer paper Burst Tester Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
