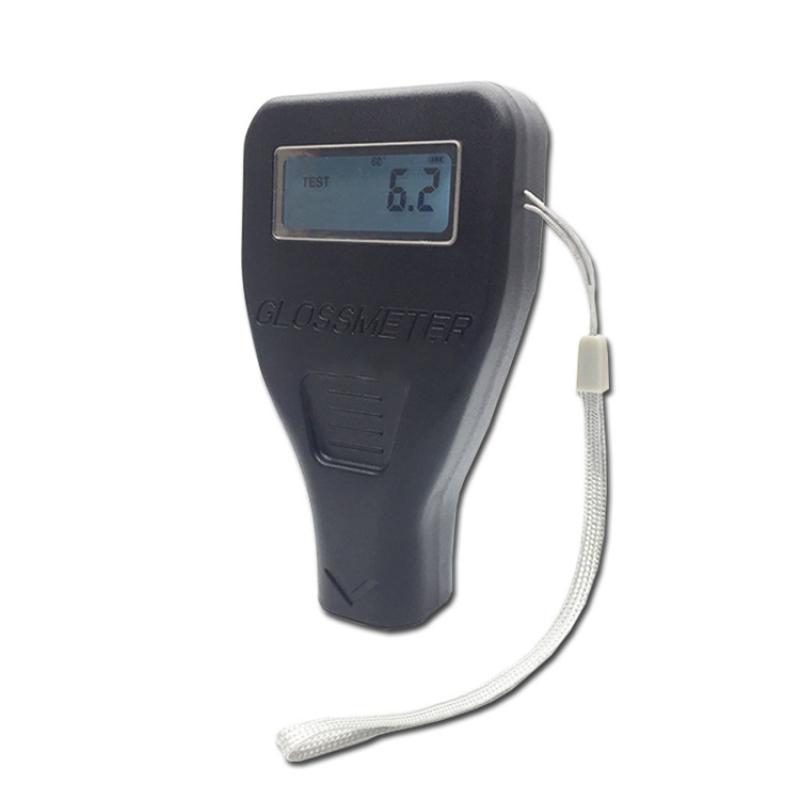

DOHO YMG60 60 ° high-precision Miniature Glossiness Meter
DOHO YMG60 60 ° high-precision miniature Glossiness Meter adopts vertical Measurement mode, compact shape, easy to carry, can test arc sample Glossiness, YMG60 60 ° high-precision miniature Glossiness Meter Measurement angle 60 °, Measuring Area (mm) 60 °: 4mm, measurement range 60 °: 0~1000GU, Graduation 0.1GU.
DOHO
YMG60
-
Intelligent Glossmeter JFL-BZ60 (smart) JFL coating, printing and other gloss Measurement Instrument
$ 301.00 -
KSJ MG6-S1 Glossiness Meter Gloss range 0~150GU
Login -
QILI MN60-H (for metal and platings) Glossmeter Gloss range 0~1999GU
$ 376.00 -
Hypertherm GZ-268 Glossiness Meter 20 °/60 °/85 ° Three Angle Gloss Meter
$ 329.00 -
LANDTEK GM-268 Glossmeter 20 °/60 °/85 ° Suitable for paints inks, floors, plastics, automobiles, tiles, etc
$ 299.00
Introduction
YMG60 60° high-precision micro gloss meter adopts vertical measurement method, small size, easy to carry, can test the gloss of curved samples (concave and convex), and is mainly used for gloss measurement and quality inspection in paint ink, coatings, plastic electronics, furniture, ceramics, electroplating, hardware and other industries.
Features
1. Smaller contact area is convenient for measuring convex surfaces and small area objects;
2. It can measure certain concave objects that are impossible to measure by traditional gloss meters, such as the inside of pipes and so on.
3. The control method is more conducive to the ergonomic design of the control of the measurement position;
4. The display screen has a 10° inclination angle, which is easy to view
DOHO YMG60 60 ° high-precision Miniature Glossiness MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement angle | 60° |
| Measuring Area | 60°:4mm |
| Measurement range | 0~1000GU |
| Graduation | 0.1GU |
| Measurement mode | Basic mode, statistical mode, continuous mode, quality control mode |
| Measurement time | 0.5s |
| Repeatability | 0~100GU:±0.5GU ; 100~1000GU:±0.4%GU |
| Accuracy | Meet JJG 696 secondary glossmeter requirements |
| Automatic shutdown time | 180 seconds |
| Long time calibrated | Function with automatic check calibration standard board/Manual calibration |
| language | Simplified Chinese, English, Traditional Chinese |
| store data | 20,000 items (10,000 items in basic mode and continuous mode, 5,000 items in quality management mode, and 5,000 items in statistical mode) |
| Display | 2.3 inch black and white display |
| Dimension | 67X46X13mm |
| Weight | About 90g (without battery) |
| Power Supply | 1 AA alkaline battery (AA alkaline battery or NiMH rechargeable battery), can be measured more than 10,000 times; or use USB port |
| Interface | USB/Bluetooth |
| PC software | GQC6 quality management software, Quality control report printing, more function expansion |
| Temperature range | 0~40℃（32~104°F） |
| Storage temperature | -20~50℃ |
| Relative Humidity | < 85% RH, no condensation |
| Standard Accessories | USB data cable, manual, GQC quality management software (official website download or after-sales service), Calibration plate |
| Optional Accessories | micro printer |
DOHO YMG60 60 ° high-precision Miniature Glossiness Meter Packing list
host X1, manual x1, certificate of conformity x1, warranty card x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
