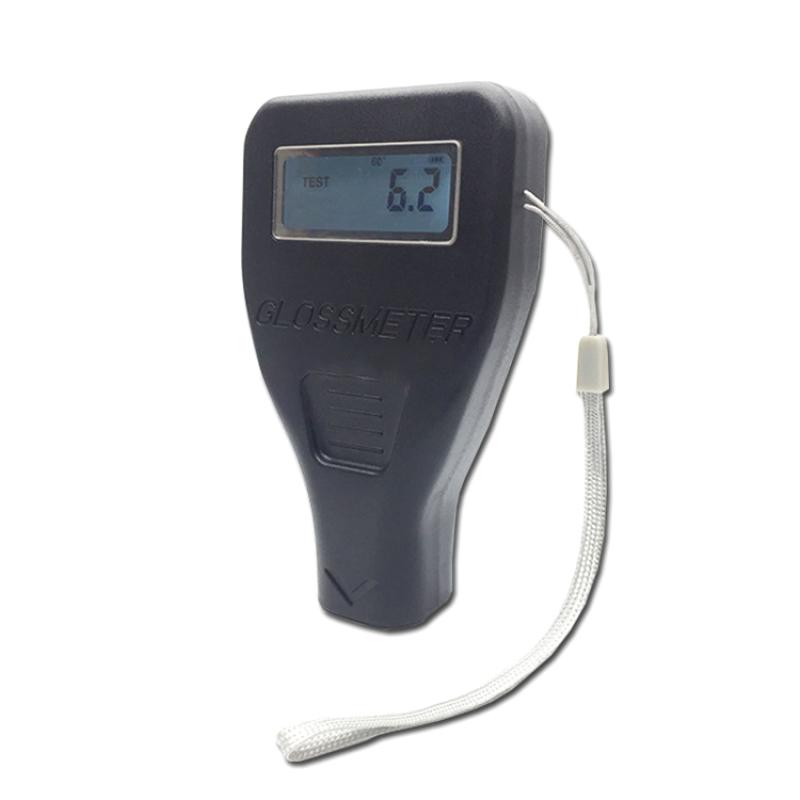

DOHO YMG60S 60 ° Miniature Glossiness Meter
DOHO YMG60S 60 ° Miniature Glossiness Meter uses a smaller bottom contact area to facilitate the measurement of convex curved surfaces and small area objects, YMG60S 60 ° Miniature Glossiness Meter Measurement angle 60 °, Measuring Area (mm) 60 °: 4mm, measurement range 60 °: 0~1000GU, Graduation 0.1GU.
DOHO
YMG60S
-
Ceramic Glossmeter JFL-B45 (Ceramic, Plastic film common type) JFL
$ 400.00 -
Netherlands TQC GL0030 Gloss Meter 20 °/60 °/85 ° Three-angle high-precision Glossiness Testing Instrument
$ 5625.00 -
KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth
Login -
AMITTARI AG-2000 Glossmeter Gloss Measurement Instrument
$ 663.00 -
Junengda WGG60-E4 Glossiness Meter
$ 242.00
Introduction
YMG60S 60° micro gloss meter uses a smaller bottom contact area to facilitate the measurement of convex surfaces and small area objects, which can be used for gloss measurement and quality inspection in paint ink, coatings, plastic electronics, furniture, ceramics, electroplating, hardware and other industries.
Features
1. Smaller contact area is convenient for measuring convex surfaces and small area objects;
2. It can measure certain concave objects that are impossible to measure by traditional gloss meters, such as the inside of pipes and so on.
3. The control method is more conducive to the ergonomic design of the control of the measurement position;
4. The display screen has a 10° inclination angle, which is easy to view
DOHO YMG60S 60 ° Miniature Glossiness MeterSpecifications
| LIST | VALUE |
|---|---|
| Product model | YMG60S 60 ° Economy Miniature Glossiness Meter |
| Measurement angle | 60° |
| Measuring Area | 60°:4mm |
| Measurement range | 0~200GU |
| Graduation | 0.1GU |
| Measurement mode | Basic mode |
| Measurement time | 0.5s |
| Repeatability | 0~100GU:±1GU ; 100~200GU:±0.5%GU |
| Accuracy | Meet JJG 696 secondary glossmeter requirements |
| Automatic shutdown time | 180 seconds |
| Long time calibrated | Manual calibration |
| language | Simplified Chinese |
| store data | none |
| Display | 2.3 inch black and white display |
| Dimension | 67X46X13mm |
| Weight | About 90g (without battery) |
| Power Supply | 1 AA alkaline battery (AA alkaline battery or nickel-metal hydride rechargeable battery), can be measured more than 10,000 times |
| Interface | / |
| PC software | none |
| Temperature range | 0~40℃（32~104°F） |
| Storage temperature | -20~50℃ |
| Relative Humidity | < 85% RH, no condensation |
| Standard Accessories | Calibration plate |
| Optional Accessories | micro printer |
DOHO YMG60S 60 ° Miniature Glossiness Meter Packing list
host X1, manual x1, certificate of conformity x1, warranty card x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
