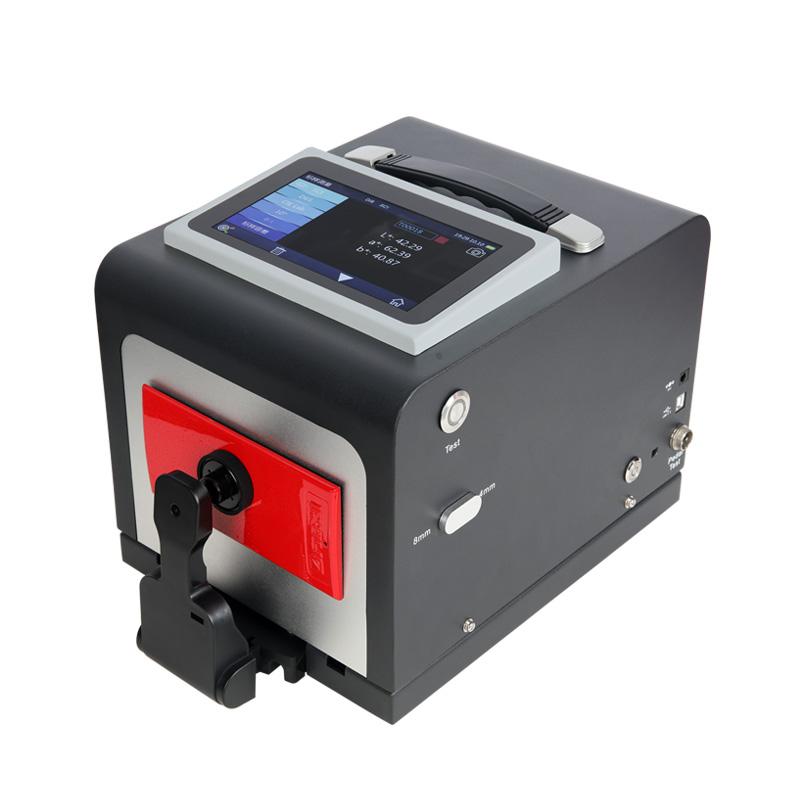

3NH TS8280 Portable Desktop Colorimeter

Introduction

The portable desktop Spectrophotometer TS8280 is a Spectrophotometer developed by 3nh using its own spectrometric core technology. It uses a built-in silicon photodiode array (dual rows of 40 groups) sensor and imported whiteboard, taking into account both measurement speed and convenience of operation. It rotates Push-type structure makes testing more convenient. The repeatability ΔE*ab of the TS8280 portable desktop Spectrophotometer is easily controlled within 0.05, and the inter-stage difference ΔE*ab is controlled within 0.15. The accurate measurement can be used for accurate analysis and transmission of laboratory color.

Applications

The TS8280 portable desktop Spectrophotometer is equipped with a Φ30mm measurement aperture, which is suitable for measuring large-area samples and meets the needs of accurate color measurement and quality control in textile and clothing printing and dyeing, plastic electronics, ceramics and other industries; it can be used for fluorescence sample measurement.

Features

1. Adopts the internationally accepted D/8 structure, is compatible with SCI/SCE measurement, and supports simultaneous rapid measurement of SCI+SCE.

The TS82 80 portable desktop Spectrophotometer adopts the internationally applicable D/8 lighting observation conditions and SCI/SCE (specular reflection included/excluding specular reflection) synthesis technology. It supports SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds.

2. Silicon photodiode array (dual 40 array) sensor

The larger area dual 40-array sensor does not saturate in strong light, has higher low-light sensitivity and a wide spectral response range, ensuring the instrument's measurement speed, accuracy, stability and consistency.

3. Multiple color measurement spaces and multiple observation light sources

TS8280 portable desktop Spectrophotometer provides CIE LAB, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) various observation light sources, which can meet different needs Special measurement requirements under measurement conditions.

4. Use a combination of full-spectrum LED light source and UV light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral loss of white LEDs in specific bands, ensuring the measurement speed of the instrument and the accuracy of the measurement results. The professional UV light source ensures more reliable UV testing.

5. Metrology verification report

Each TS8280 portable desktop Spectrophotometer has been calibrated and tested. The instruments are calibrated according to the measurement standards of the trusted calibration department before leaving the factory. The measurement data are traceable to the National Institute of Metrology to ensure the credibility of the instrument test data.

6. Camera framing and positioning can clearly observe the measured area

The TS8280 portable desktop Spectrophotometer has a built-in camera for viewfinding and positioning. Through the real-time viewfinder of the camera, it can accurately determine whether the measured part of the object is the center of the target, improving measurement efficiency and accuracy.

7. Industrial-grade high-definition touch screen, simple and easy-to-use user interface

Using a 7-inch industrial-grade high-definition touch screen, the control is smooth, and the simple and easy-to-use user interface makes operation comfortable, convenient, and easier to use.

8. Color management software

The SQCX quality management software provided with the TS8280 portable desktop Spectrophotometer is suitable for quality monitoring and color data management in various industries. Digitize users' color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize customers' color management work.

9. Practical optional accessories

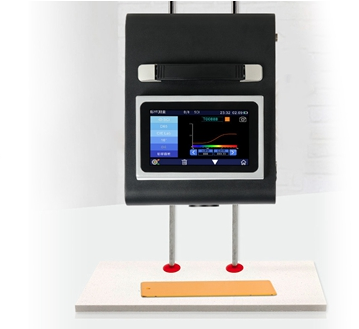

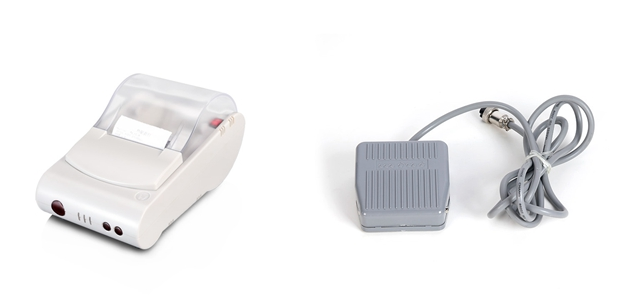

Micro printer, foot switch, and rotating bracket can be freely selected according to needs

host X1, power adapter X1, data cable X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
