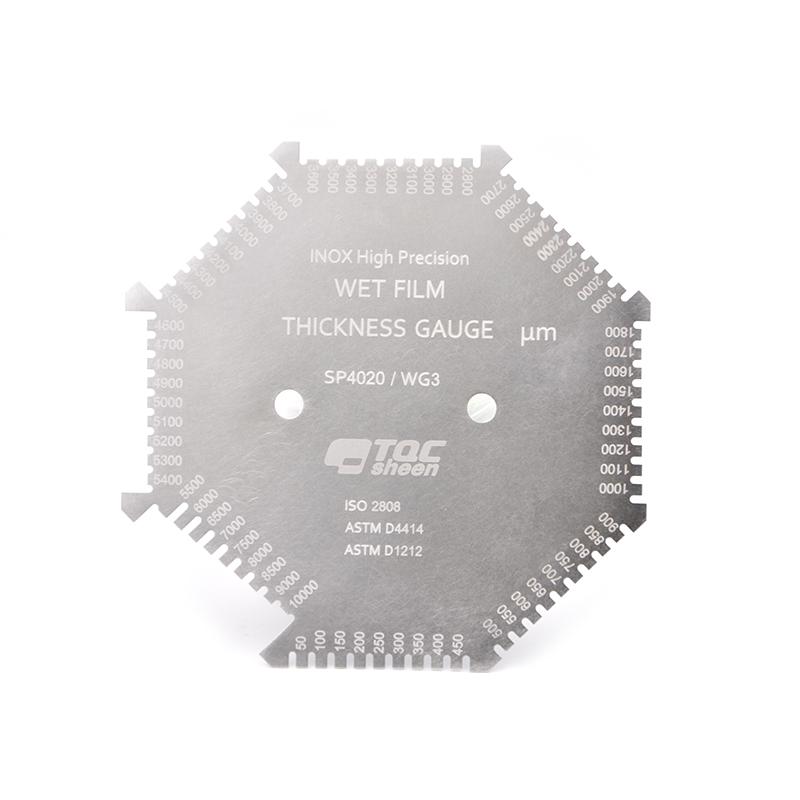

TQC sheen SP4020 Wet Film Thickness Gauge

TQC SP4020 octagonal WFT gauge wet-film card 10mm

Range 50~10000 μm, sub-scale 50/100/500 μm, accuracy +/- 50 μm, material stainless steel, measurement disc diameter 50mm.

Brand

SKU: NB000336

TQC sheen

Model

SP4020

Get Quote

TQC sheen shopSE

Information

Datasheet Video Manual

What else did others buy

Genuinegoods

TQC sheen SP4020 Wet Film Thickness GaugeOverview
Specifications
Comments
FAQs

SP4020

Wet Film Thickness Gauge

Range 50~10000 μm, sub-scale 50/100/500 μm, accuracy +/- 50 μm, material stainless steel, measurement disc diameter 50mm.

Introduction

TQC SP4020 wet Film Thickness Gauge is an octagonal wet film gauge. The octagonal wet film gauge is different from the hexagonal wet film gauge. It is not widely used in CHINA, but it has gradually become prominent due to its low price and good measurement effect. This wet film gauge is an octagonal type of TQC brand, which can measure a larger range, much larger than the hexagonal wet film gauge, and is suitable for thicker wet film coating thickness measurement experiments.

TQC SP4020 octagonal wet film comb is made of high-quality stainless steel material, which will not be affected by the corrosion of acid and alkali components. It is high-precision and durable.

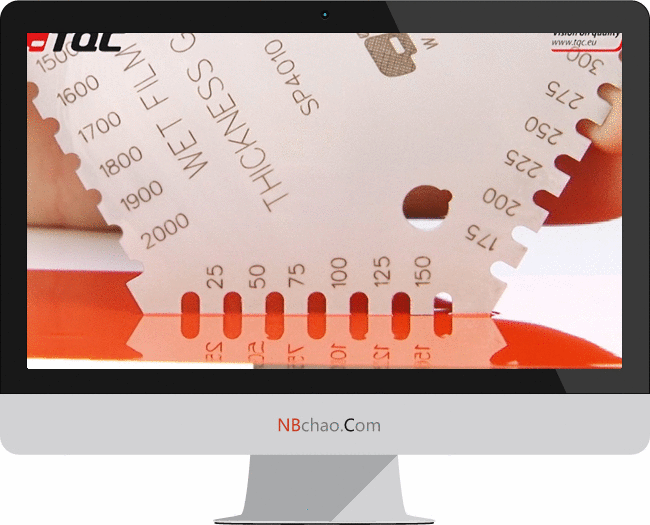

TQC SP4020 wet Film Thickness Gauge animation operation video

Specifications

model	Measuring range	diameter	Material	Accuracy
SP4020	50-10000 micron	50mm	Stainless steel	50 micron

Applicable scope of wet film thickness measuring gauge

20-370 microns for decorative coatings and primers.

25-2000 micron for protective coatings, high solids adhesive with corner radius calibration (2mm).

50-10,000 microns, used for thicker coatings like floor coatings, fillers, fireproofing treatments, gypsum plasters, adhesives, etc.

Product details

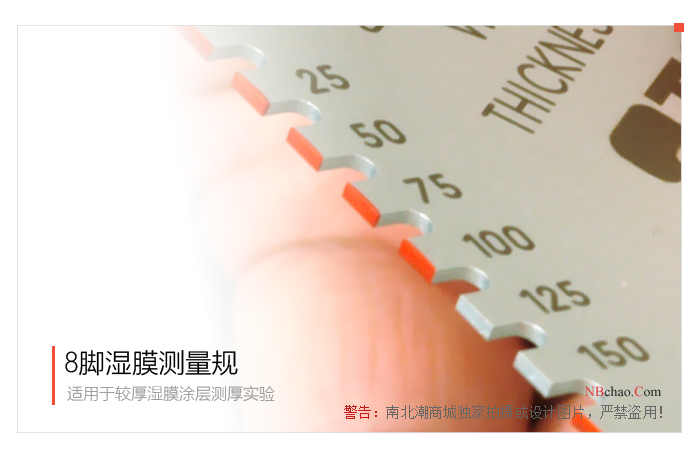

Actual photo of Dutch TQCSP4020 octagonal wet Film Thickness Gauge 1

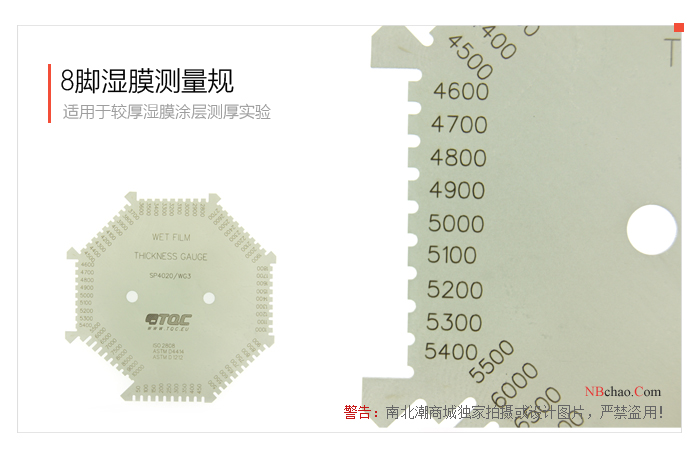

Dutch TQCSP4020 Octagonal Wet Film Thickness Gauge Actual Photo 2

Series models of wet Film Thickness Gauges

model	Measuring range	series	Accuracy	diameter	Material
SP4000	20-370Âµm	24 (6Ã4) hexagons	10Âµm	50mm	Stainless steel
SP4010	25-2000Âµm	36 (6Ã6) hexagons	25Âµm	50mm	Stainless steel
SP4020	50-10000Âµm	71 (8Ã9) octagon	50Âµm	50mm	Stainless steel

Wet Film Thickness Gauge Specification Details

|| SP4000

WG-I wet Film Thickness Gauge 20-370 microns, 24 scales (hexagonal, 4 scales on each side)

|| SP4010

WG-II wet film thickness measuring gauge 2000 microns, 36 scales (hexagonal, 6 scales on each side), engraved with 2mm scale lines

|| SP4020

WG-III Wet Film Thickness Gauge 50-10000 microns, 71 scales (octagonal, 9 scales on each side)

Graduation: 0-900 range is 50Âµm; 900-5500 range is 100Âµm; 5500-9000 range is 500Âµm.

Measuring range	series	Accuracy	diameter	model
20-370Î¼m	24(6Ã4)	side 1:20 30 40 50 side 2:60 70 80 90 side 3:100 110 120 130 side 4:150 170 190 210 side 5:230 250 270 290 side 6:310 330 350 370	50mm	SP4000
25-2000Î¼m	36(6Ã6)	side 1:25 50 75 100 125 150 side 2:175 200 225 250 275 300 side 3:350 400 450 500 550 600 side 4:650 700 750 800 850 900 side 5:950 1000 1100 1200 1300 1400 side 6:1500 1600 1700 1800 1900 2000	50mm	SP4010
50-10000Î¼m	71(8Ã9)	side 1:50 100 150 200 250 300 350 400 450 side 2:500 550 600 650 700 750 800 850 900 side 3:1000 1100 1200 1300 1400 1500 1600 1700 1800 side 4:1900 2000 2100 2200 2300 2400 2500 2600 2700 side 5:2800 2900 3000 3100 3200 3300 3400 3500 3600 side 6:3700 3800 3900 4000 4100 4200 4300 4400 4500 side 7:4600 4700 4800 4900 5000 5100 5200 5300 5400 side 8:5500 6000 6500 7000 7500 8000 8500 9000 10000	50mm	SP4020

Take you into the Dutch TQC

TQC introduction

TQC introduction 2

TQC introduction 3

TQC sheen SP4020 Wet Film Thickness GaugeSpecifications

LIST	VALUE
Range	50~10000μm
Graduation	50\|100\|500μm
Accuracy	±50μm
material	stainless steel
Measurement disk diameter	50mm

TQC sheen SP4020 Wet Film Thickness Gauge Packing list

Wet-film gauge x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Do you have the wet film thickness gauge involved in JJF1484?

[A]

The SP4020 wet film thickness gauge can be

[Q]

What kind of coating is this SP4020 Octagonal Wet film instrument mainly used for?

[A]

Hello, this octagonal Wet film instrument has a relatively large range and is mainly used to test thicker coatings such as floor coating, fire protection treatment, and plaster plaster.
