QXD0-150 single-channe Fineness Gauge YONGLIDA 0-150μm detection range Cr12 molybdenum vanadium material

Single-channe, range 0~150μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 155 * 50 * 13mm, applicable standard GB/T1724, Graduation 10μm.

Brand

SKU: NB003367

YongLiDa

Model

QXD0-150

Price

$ 127.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

YongLiDa shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

MODERNER QXD-50 small double-channel qxd Fineness gauge 50 micron Coating Fineness gauge

Login
JINGKELIAN QXP 0-100um double-channel Fineness of Grind Gauge 0~100μm

$ 185.00
TQC VF2111 double-channel Grindometer 0-25 µm with calibrated certificate

$ 1062.00
TQC VF2118 double-channel fineness grindometer 0-250 µm with calibrated certificate

$ 1354.00
TRUIT TR 1201/015 single-channe Coating Fineness gauge 0~15μm

$ 168.00

Genuinegoods

YongLiDa QXD0-150 GrindoMeterOverview
Specifications
Comments
FAQs

QXD0-150

GrindoMeter

Single-channe, range 0~150μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 155 * 50 * 13mm, applicable standard GB/T1724, Graduation 10μm.

Introduction of QXD0-150 single channel Fineness gauge

Yonglida single-slot fineness plate QXD0-150 is a single-slot Fineness of Grind Gauge with a detection fineness range of 0~150 μm, a graduation value of 10 μm, and a groove number of 1, which is made of Cr12 molybdenum vanadium material specified by the state. The specifications and dimensions of the QXD0-150 single-slot fineness plate are designed according to the special verification regulations of the Ministry of Chemical Industry "Grindometer", and it is a single-slot fineness plate that meets the national standard.

QXD0-150 single channel Fineness gauge display

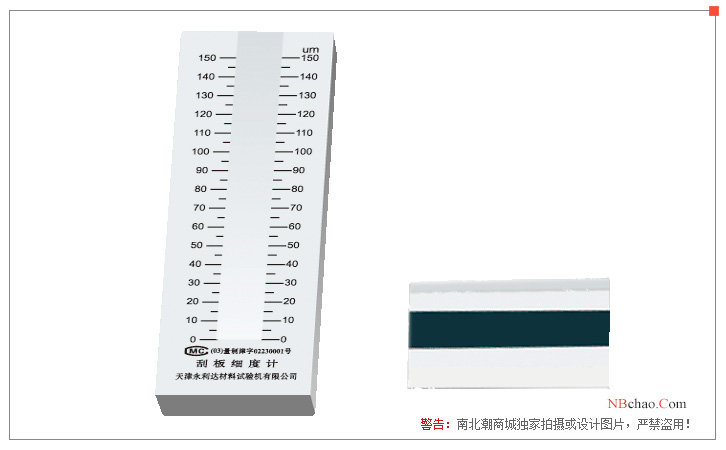

Yonglida single channel Fineness gauge QXD0-150 display picture

Application standard of QXD0-150 single channel Fineness gauge

Conform to GB/T1724 "Determination of Coating Fineness" standard.

YongLiDa QXD0-150 GrindoMeterSpecifications

LIST	VALUE
Scraper type	Single-channe
Number of grooves	1
range	0 ~ 150μ m
Scale unit	mm
Scraper material	Cr12 molybdenum vanadium
Scraper size	1555013mm
Applicable standard	GB/T1724
Graduation	10µm

YongLiDa QXD0-150 GrindoMeter Packing list

Fineness Gauge x1 drawdown blade x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What is the minimum scale interval of this model? And how to see the inclination of the groove?

[A]

Fineness gauge mainly depends on the range, scale value, and meets the standard, and the slope generally does not have special standards

[Q]

Coating is about 80um. Is this Fineness gauge appropriate?

[A]

Hello, suitable, the range of this one path Fineness gauge is 0~ 150μm.

[Q]

Help me find a Fineness gauge that meets the ASTMD1316 standard

[A]

This QXD0-150 Fineness gauge is fine!

[Q]

Can the QXD150 Fineness gauge detect paint up to 120 microns?

[A]

In line with the scraper fineness Measurement can scrape the sample fineness below 0~ 150 μ m.
