RDS8 Mayer Rods 18.3μm experimental Film Applicator

The production process is formed, the wet film thickness is 18.3μm, the diameter is 9.52mm, the Total length is 400mm, the Spreader width is 300mm, and the material is stainless steel.

Brand

SKU: NB033701

RDS

Model

Price

$ 162.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

RDS shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Japan OSP-120/250 inks bar WFT 120μm length 250mm

$ 153.00
RDS 75 #1/2 "Steel Wire Drawdown Rod film thickness 171.5μm Wire diameter 1.91mm

$ 181.00
RK K101.10.3 coater special rod No. 3 WFT 24μm

$ 178.00
Japan OSP-50/250 scraping reticulated stick WFT 50μm length 250mm

$ 153.00
UK RK KHC.10.3 coating rod WFT 24μm green rubber head No. 3 rod

$ 153.00

Genuinegoods

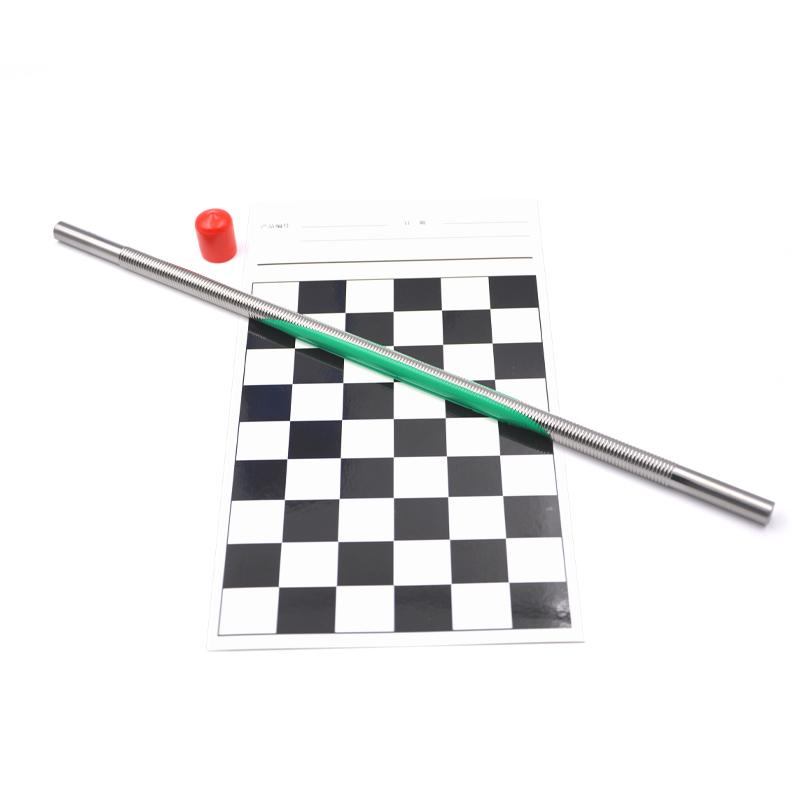

RDS 8# 3/8" Applicator rod 3/8 "Overview
Specifications
Comments
FAQs

8# 3/8"

Applicator rod 3/8 "

The production process is formed, the wet film thickness is 18.3μm, the diameter is 9.52mm, the Total length is 400mm, the Spreader width is 300mm, and the material is stainless steel.

Product description

The RDS wire rod coater is a common rod coater in experimental coating experiments. It is a consumable product. The familiarity of rds coaters in domestic (CN) industry users is relatively high, and there are currently 80 Many years of historical technical experience. rds 8# 3/8'' is the bar size of the molding process, using 304 wear-resistant stainless steel, the effective coating film width is 30cm, and the coating film thickness is 18.3μm. It is suitable for coating films of many fluid samples such as paints, inks, varnishes, and polymers.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

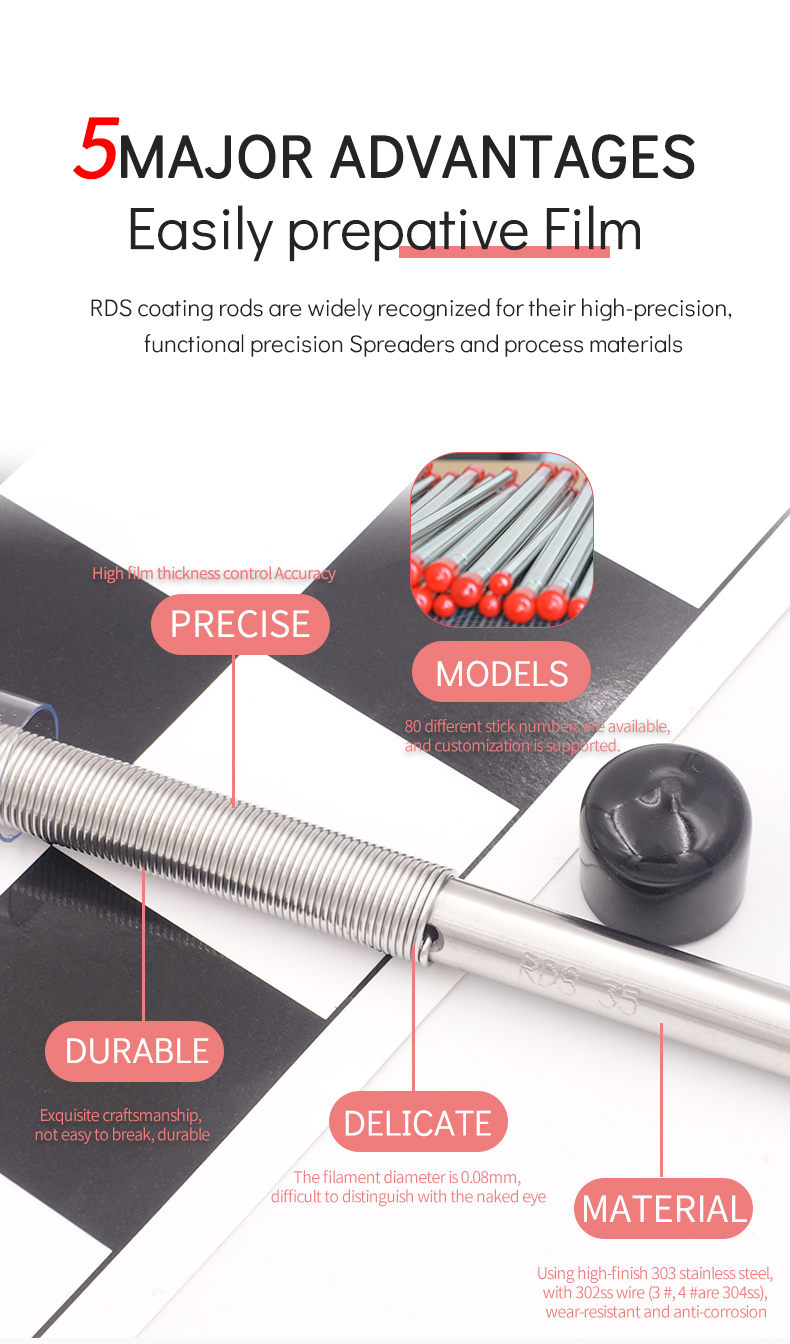

RDS coating Rods Figure 3

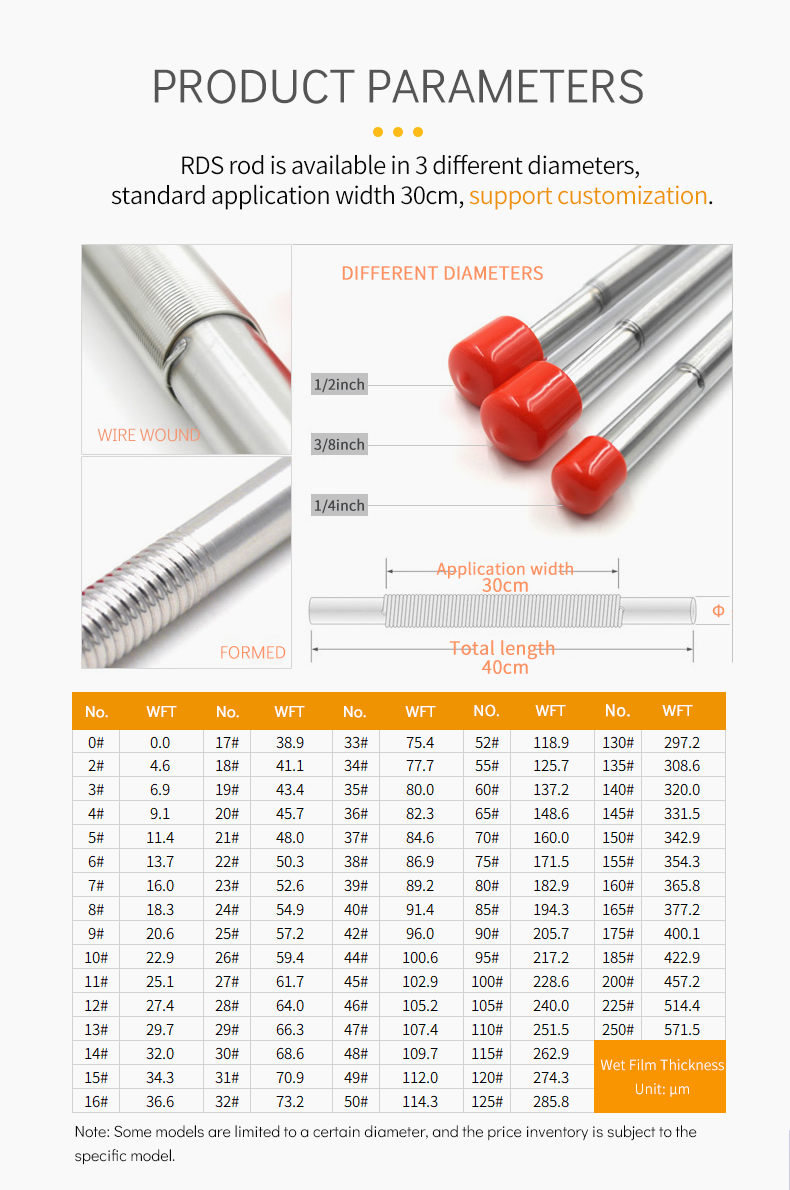

RDS coating Rods Figure 4

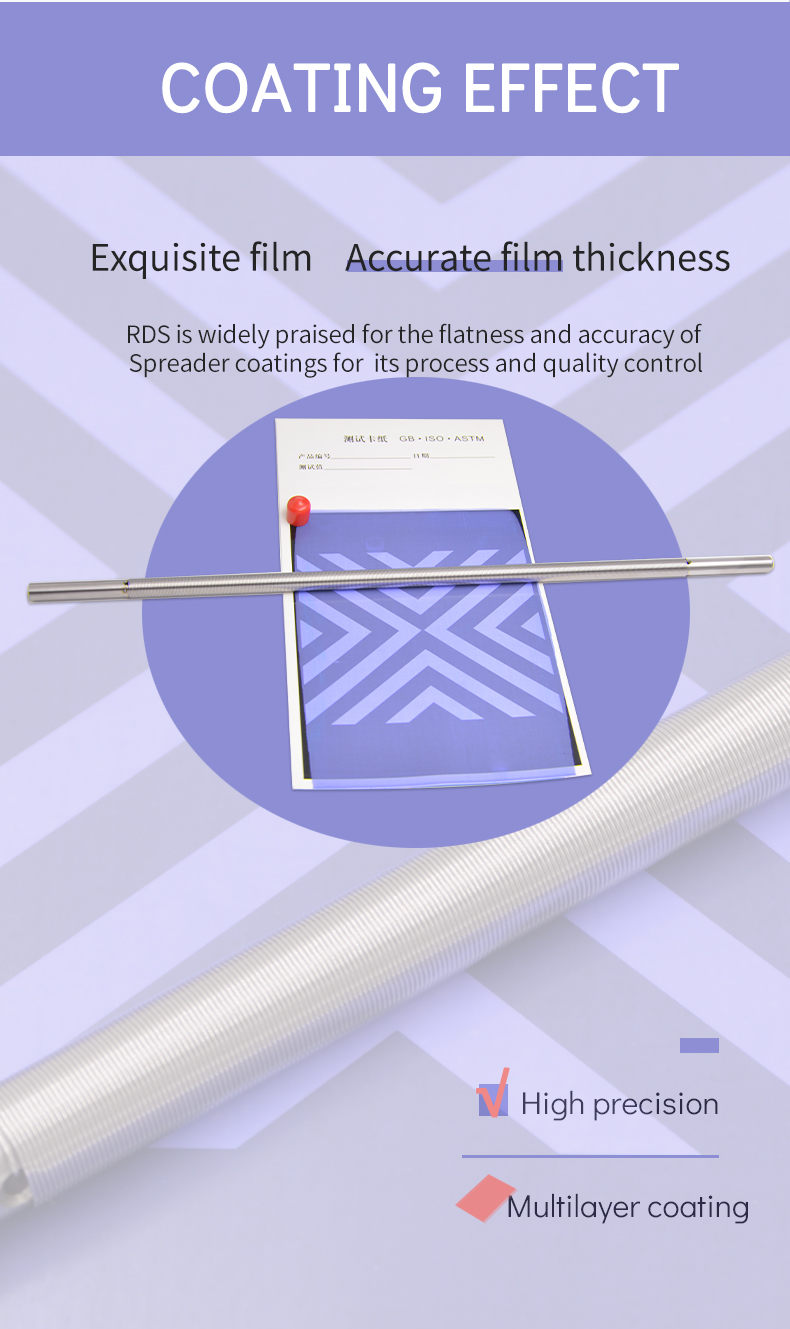

RDS coating Rods Figure 5

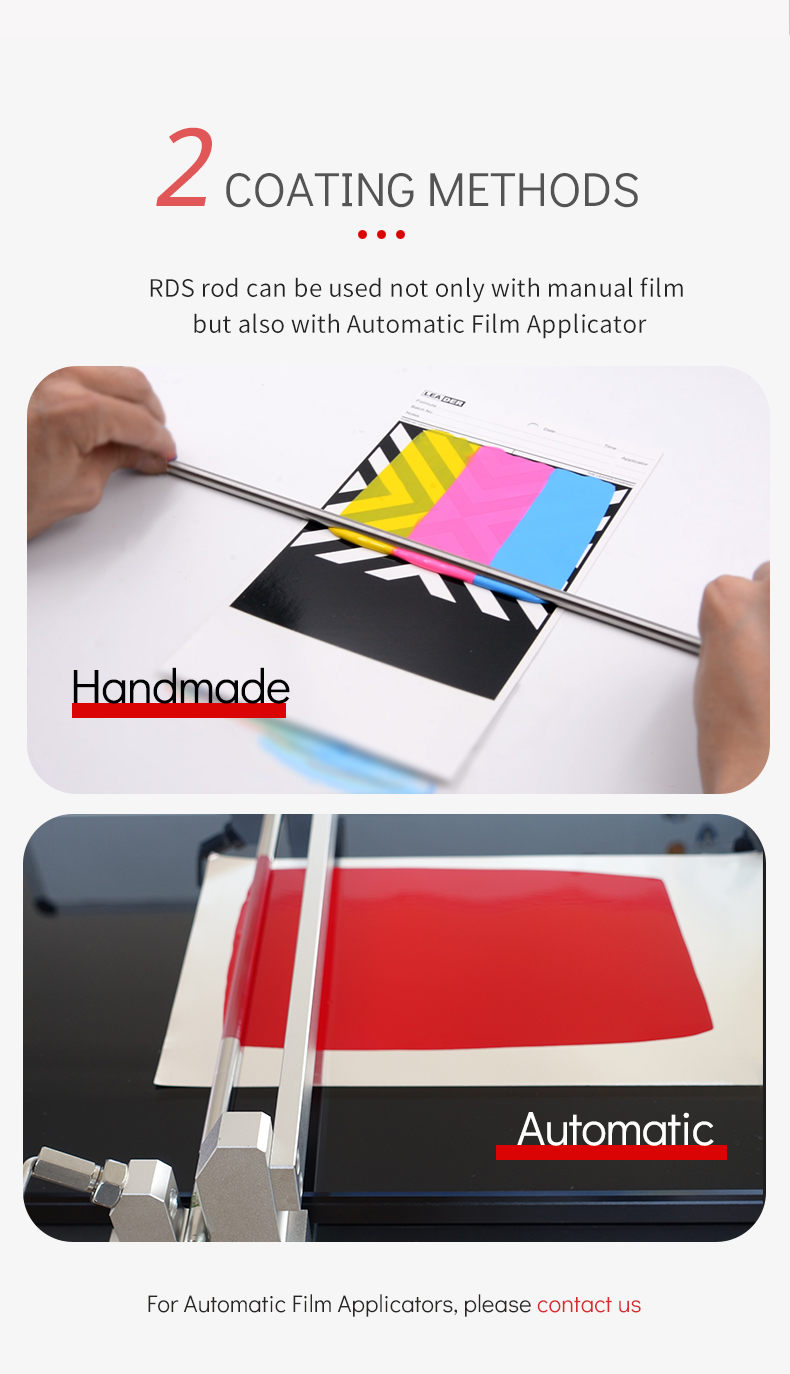

RDS coating Rods Figure 6

RDS coating Rods Figure 7

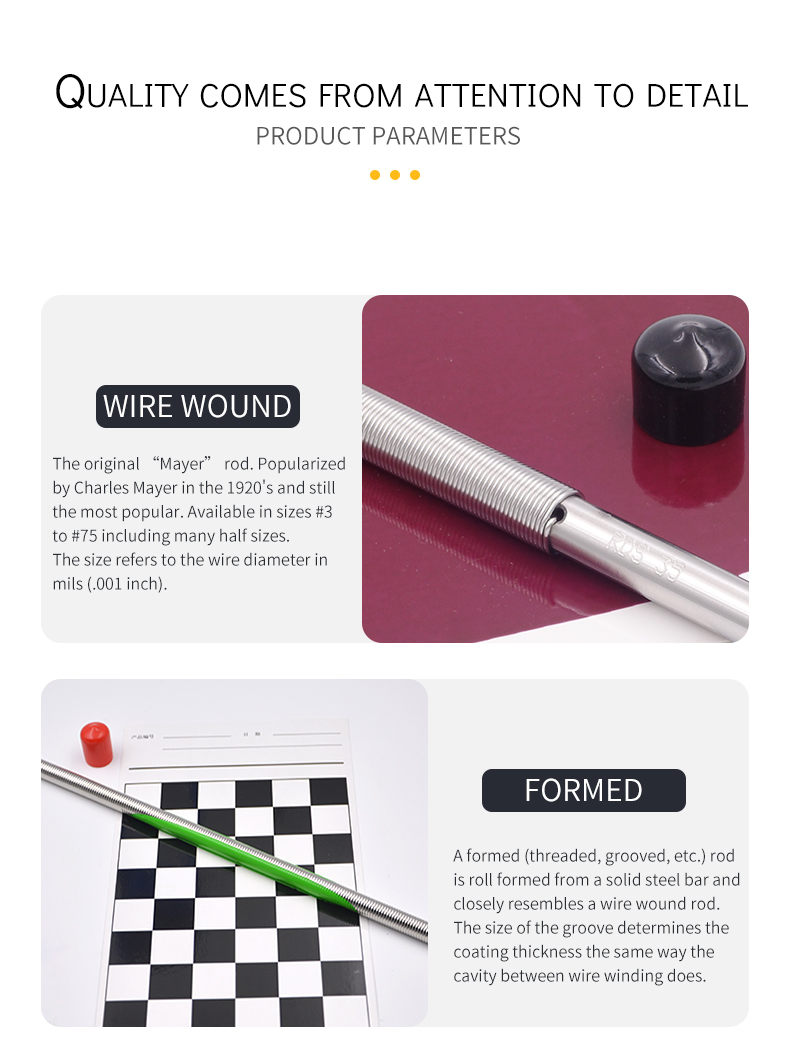

RDS coating Rods Figure 8

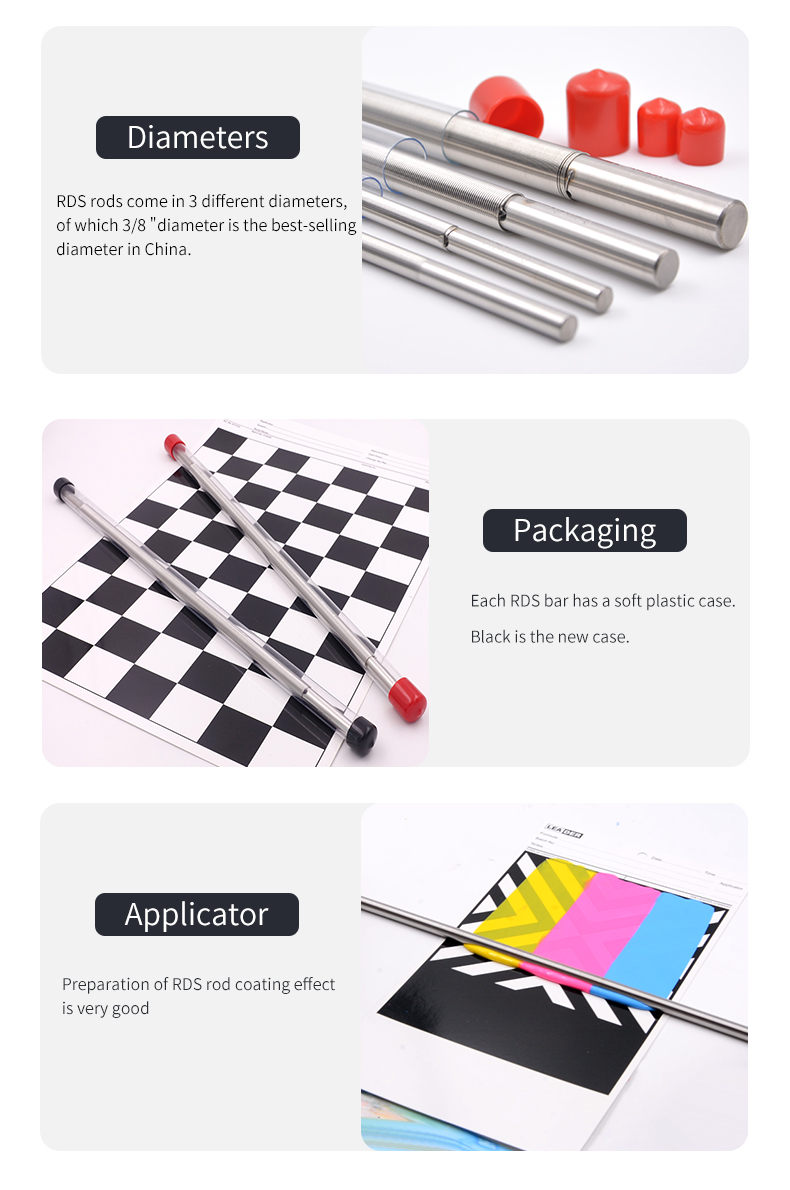

RDS coating Rods Figure 9

RDS coating Rods Figure 10

RDS 8# 3/8" Applicator rod 3/8 "Specifications

LIST	VALUE
Production process	Formed
WFT	18.3µm
diameter	9.52mm
Total length	400mm
Application width	300mm
material	stainless steel

RDS 8# 3/8" Applicator rod 3/8 " Packing list

Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What is the thickness of rds8? how many μm

[A]

18.3μm

[Q]

What is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?

[A]

The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.

[Q]

Moulding rod is better for winding or extrusion?

[A]

In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.

[Q]

Can this cable stick be matched with a Film Applicator?

[A]

Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.

[Q]

Can this scraper be coated with UV Gloss oil?

[A]
