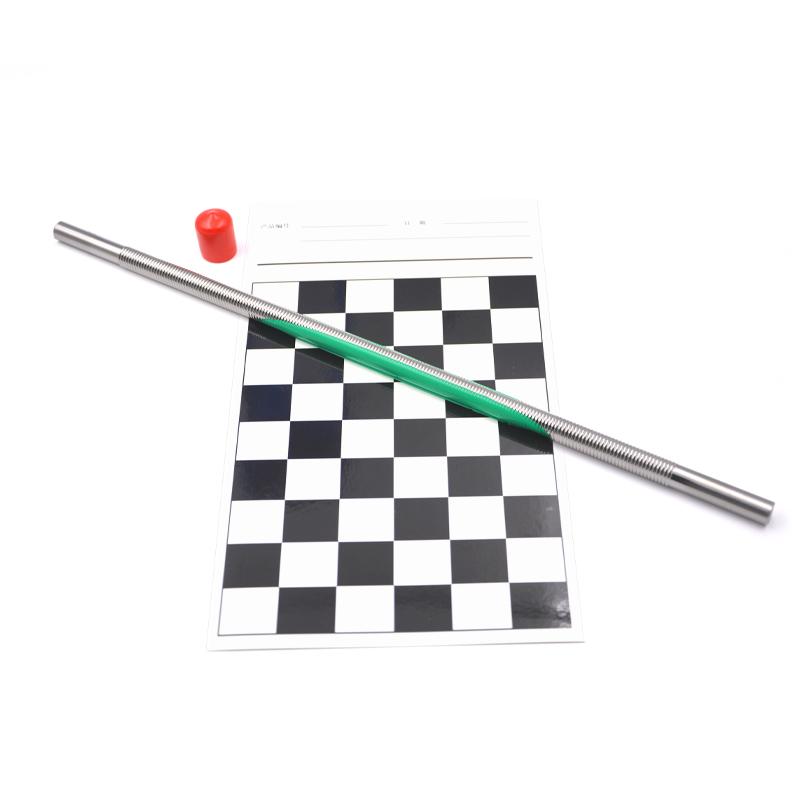

        RDS 60# 3/8" Applicator rod 3/8 "

        RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater

        Production process is formed, wet film thickness 137.2μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.

        Brand
        SKU: NB033729
        United States RDS
        Stock
        Loading…
        Price
        $ 162.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          RDSLOGO

          RDS shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • RDS 60# 3/8" Applicator rod 3/8 "Overview

          • Specifications
          • Comments
          • FAQs
          60# 3/8"
          Applicator rod 3/8 "
          • RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater
          • RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater Figure 1
          • RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater Figure 2
          Production process is formed, wet film thickness 137.2μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.

          The RDS 60# 3/8" wire Bar Coater can coat a wet film thickness of 137.2μm, which is suitable for experimental coating in coatings, color steel paints, inks, magnetic paints, coil coatings, water-based latex, wood coatings, automotive coatings and other coating segments. This RDS60 rod adopts a molding process, which has the advantages of easy cleaning and continuous filament, and is a well-known wire rod coater brand.

          RDS coating Rods Figure 1

          RDS coating Rods Figure 2

          RDS coating Rods Figure 3

          RDS coating Rods Figure 4

          RDS coating Rods Figure 5

          RDS coating Rods Figure 6

          RDS coating Rods Figure 7

          RDS coating Rods Figure 8

          RDS coating Rods Figure 9

          RDS coating Rods Figure 10


          VS

          RDS 60# 3/8" Applicator rod 3/8 "Specifications

          LIST VALUE
          Production process Formed
          WFT 137.2μm
          diameter 9.52mm
          Total length 400mm
          Application width 300mm
          material stainless steel

          RDS 60# 3/8" Applicator rod 3/8 " Packing list

          Stainless Steel Rod X1 Transparent Encasement Hose X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          I use the coating applicator film and then there are scratches after drying. How to solve it? It is estimated that the viscosity of Resin is a bit large and it is not easy to levelling.
          [A]
          Applicators are recommended for products with viscosity greater than 1000cp
          [Q]
          What is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
          [A]
          The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
          [Q]
          Moulding rod is better for winding or extrusion?
          [A]
          In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
          [Q]
          Can this cable stick be matched with a Film Applicator?
          [A]
          Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
          [Q]
          Do you support customization? Such as wet film thickness and length?
          [A]
          Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
