RDS 45 #3/8 "Applicator rod 102.9μm stainless steel Film Applicator

The production process is formed, the wet film thickness is 102.9μm, the diameter is 9.52mm, the Total length is 400mm, the Spreader width is 300mm, and the material is stainless steel.

Brand

SKU: NB033735

RDS

Model

Price

$ 162.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

RDS shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

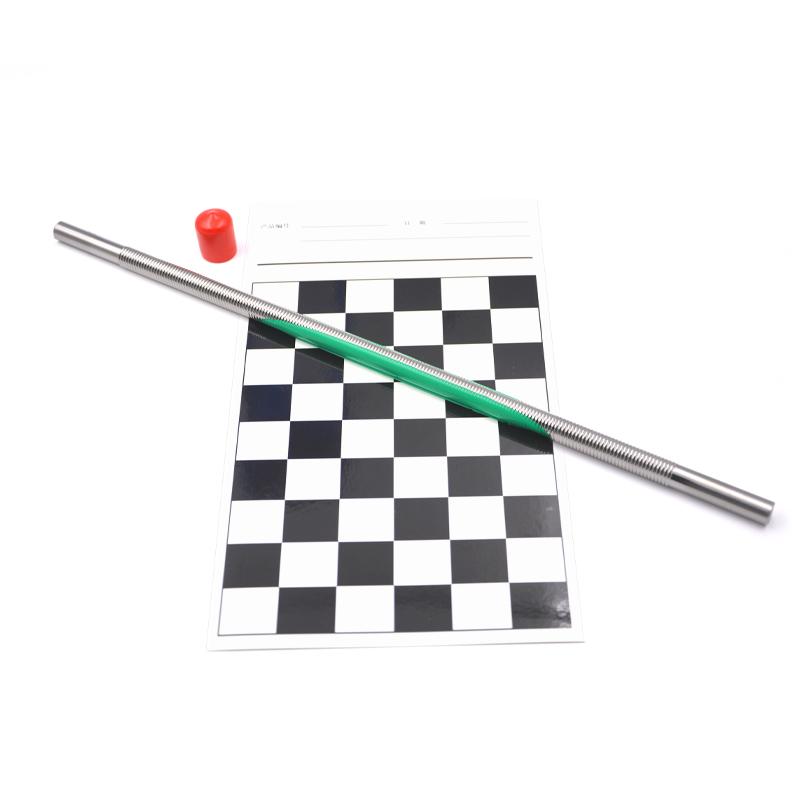

RDS 45# 3/8" Applicator rod 3/8 "Overview
Specifications
Comments
FAQs

45# 3/8"

Applicator rod 3/8 "

The production process is formed, the wet film thickness is 102.9μm, the diameter is 9.52mm, the Total length is 400mm, the Spreader width is 300mm, and the material is stainless steel.

product description

RDS 45# 3/8" forming film coating rod is a Film Applicator for coating 102.9 micron thickness film. RDS film coating rod can be divided into two different methods: wire winding type and forming type (ie extrusion type). It is used to prepare samples in thin film plastics, paint ink, resin and other industries. It is very suitable for measuring the hiding power, color and other properties of the coating film. The material of the RDS stainless steel Film Applicator is 303 stainless steel. The RDS Film Applicator is suitable for high wear and high viscosity. The experiment is also applicable, easy to operate, uniform coating.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

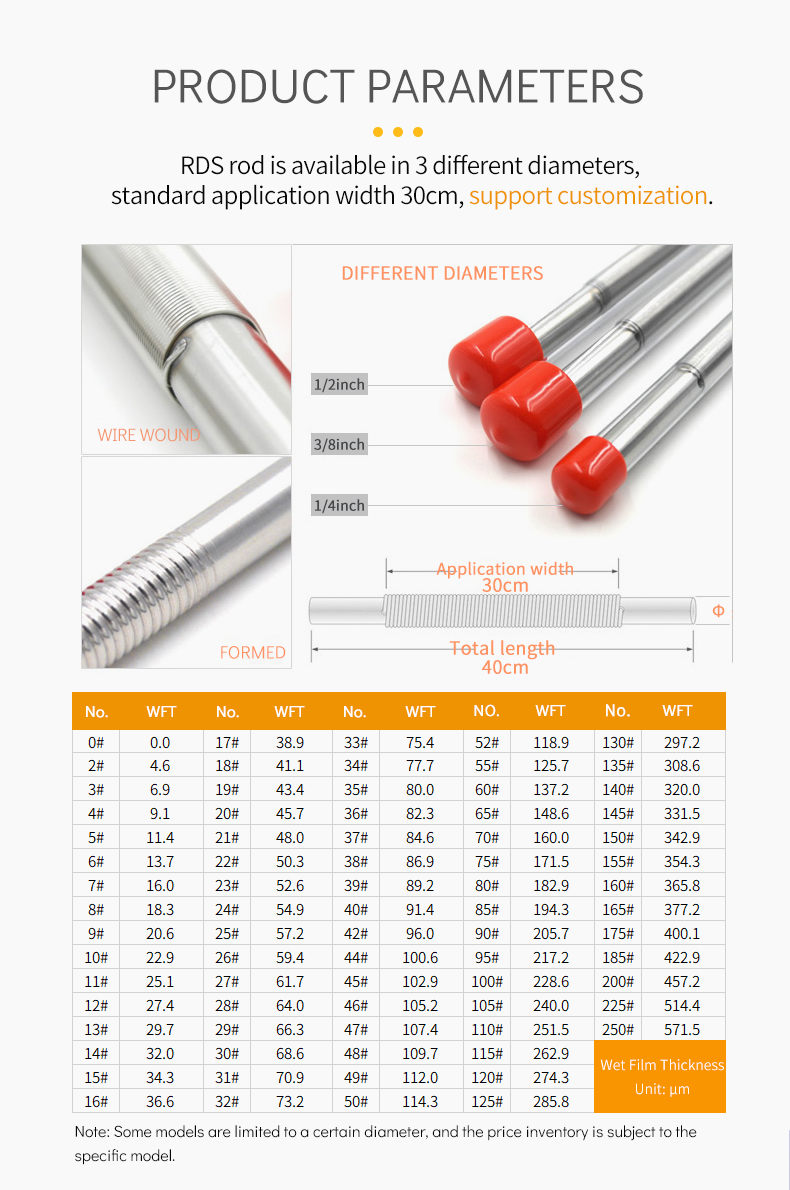

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

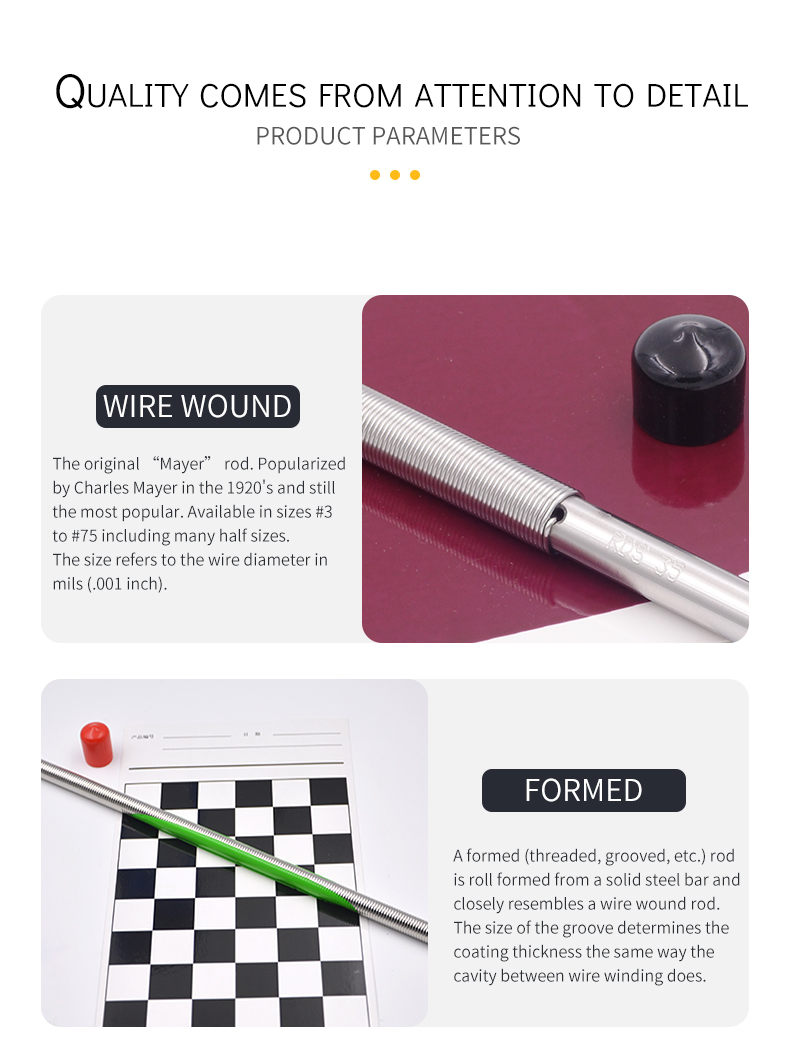

RDS coating Rods Figure 8

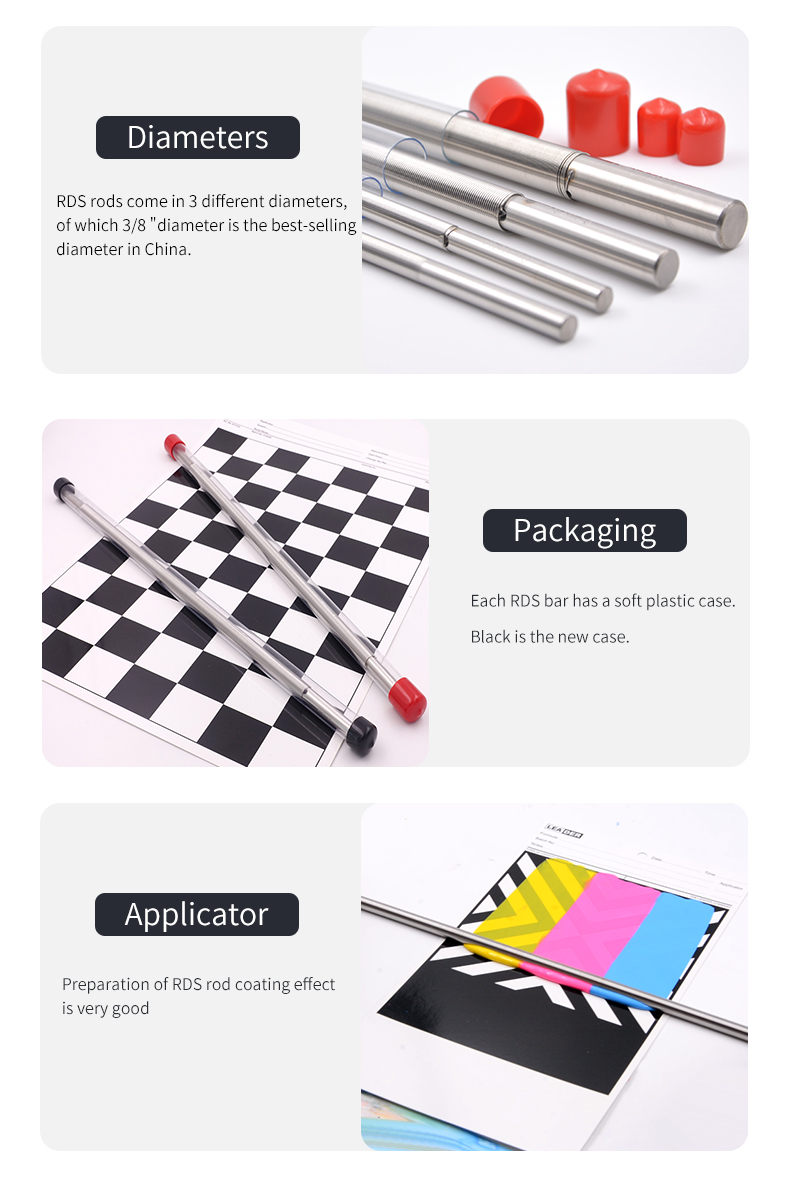

RDS coating Rods Figure 9

RDS coating Rods Figure 10

RDS 45# 3/8" Applicator rod 3/8 "Specifications

LIST	VALUE
Production process	Formed
WFT	102.9µm
diameter	9.52mm
Total length	400mm
Application width	300mm
material	stainless steel

RDS 45# 3/8" Applicator rod 3/8 " Packing list

Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Does the choice of model have a lot to do with the material, such as the viscosity?

[A]

The choice is related to the material. As long as the viscosity is not greater than 1000cp, it can be scratched. Beyond this viscosity range, it is recommended to use Film Applicator. In addition, the Fineness relationship is also very large. If you use a 10um rod for 50um particles, you will definitely not be able to apply it. There will be scratches. The principle is simple and not detailed. In addition, volatile fluids will affect the conversion of dry wet-film, and Solid content will also be affected. If you need assistance, you can seek NBchao customer service staff.

[Q]

What is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?

[A]

The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.

[Q]

Moulding rod is better for winding or extrusion?

[A]

In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.

[Q]

Can this cable stick be matched with a Film Applicator?

[A]

Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.

[Q]

Do you support customization? Such as wet film thickness and length?

[A]

Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
