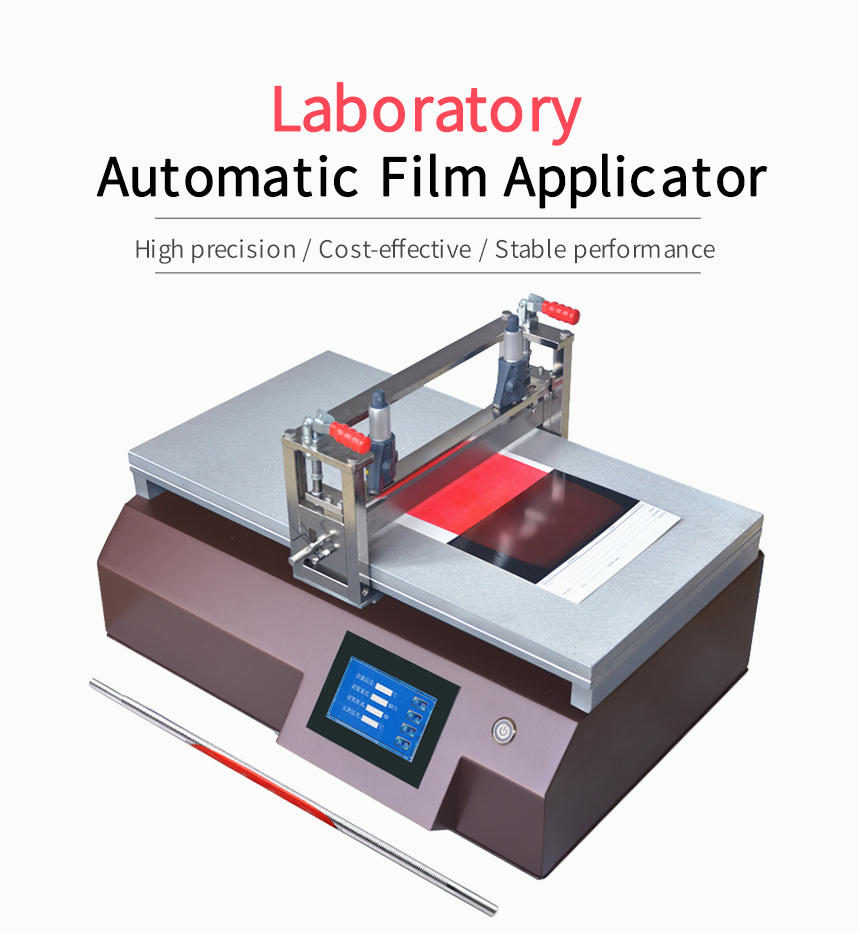

China Heating Wire Drawdown blade Automatic Scraping Machine TBJ-B4-XB with imported bar Coating Machine
Bar + Heating + Drawdown blade three-in-one coater, suitable for hot-melt adhesive, battery diaphragm and other samples that need to be heated and dried Spreader; standard imported bar, accuracy up to 1μm; aluminum alloy baseplate, width 300mm, heating temperature up to 200 ℃; touch screen operation.
zy
TBJ-B4-XB
TBJ-B4-DJ8
TBJ-GDH-JKXB
TBJ-B4-DJ10
TBJ-B3-DJ9
TBJ-GDH-GCXB
TBJ-B4-DJ1
TBJ-B4
-
HuiNuo TM3300/21 drawdown Bar & Blade vacuum adsorption coater (upper cover heating) Effective area 120cm * 30cm
Login -
China bar Vacuum chuck coater TBJ-A3-DJ3 Wire-wound drawdown Bar Moulding machine
$ 3674.00 -
HuiNuo TM3300Pro/40 Automatic Film Applicator Effective area 80cm * 30cm, drawdown Bar & Blade Vacuum chuck baseplate heating + upper cover heating (servo motor)
$ 10252.00 -
CHINA TBJ-X1-DJ9 Automatic drawdown blade vacuum adsorption Film Applicator with feeding system, width 300 * 600mm
$ 6650.00 -
CHINA TBJ-A1-DJ13 bar Film Applicator (with automatic feeding system) automatic ink filling, effective area 300 * 1000mm
$ 5083.00
product description
TBJ-B experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
This automatic coating machine comes standard with one domestic (CN) wire rod and one imported wire rod with a precision up to 1μm.
Optional
|
|
|
zy TBJ-B4-XB Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|

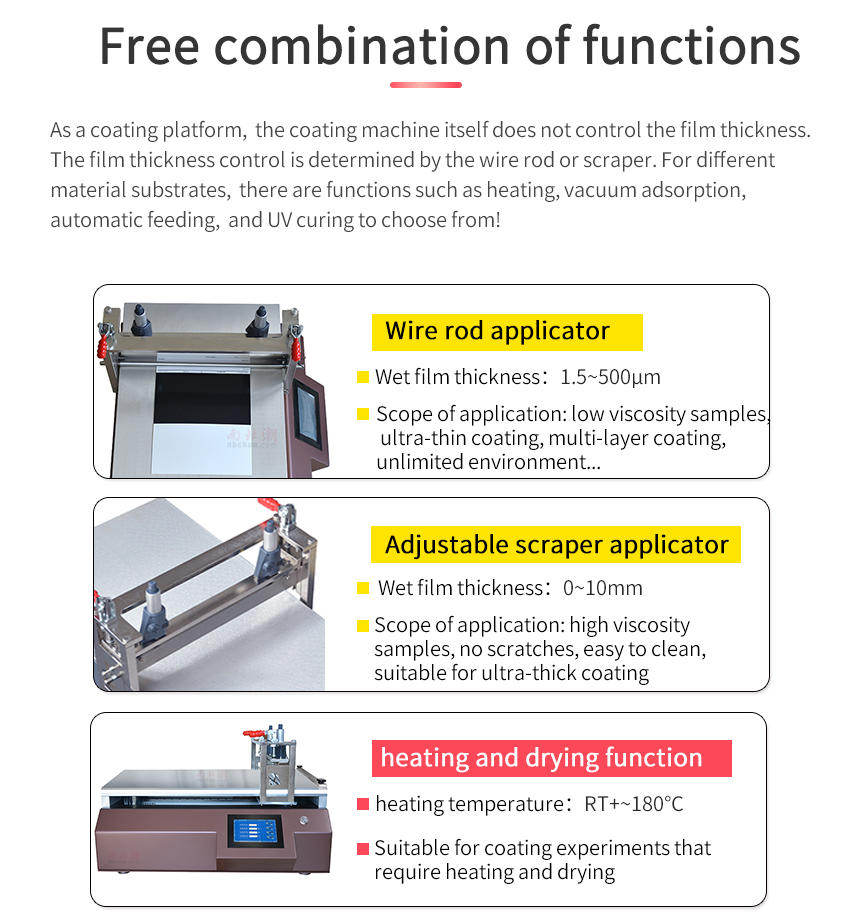

| Coating method | Wire rod + adjustable drawdown blade |
| Drawdown blade type | Integrated drawdown blade |
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0.001-10Mm adjustable |
| Drawdown blade length | 400mm |
| Drawdown blade material | 304 stainless steel |
| Wire Rod Coating Thickness Range | 1-571.5 μm (Spreader thickness determined according to rod model) |
| Spreader Accuracy | ±0.001mm |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 300 * 400Mm (Miscellaneous size can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-400mm |
| Heating Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Heating mode | Baseplate heating |
| Substrate clamping method | Mechanical fixture |
| Control mode | Touch screen control |
| Power Supply | Voltage 220V 50HZ 1700W |
| Dimension | 626*410*520mm |
| Net Weight | 65KG |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |

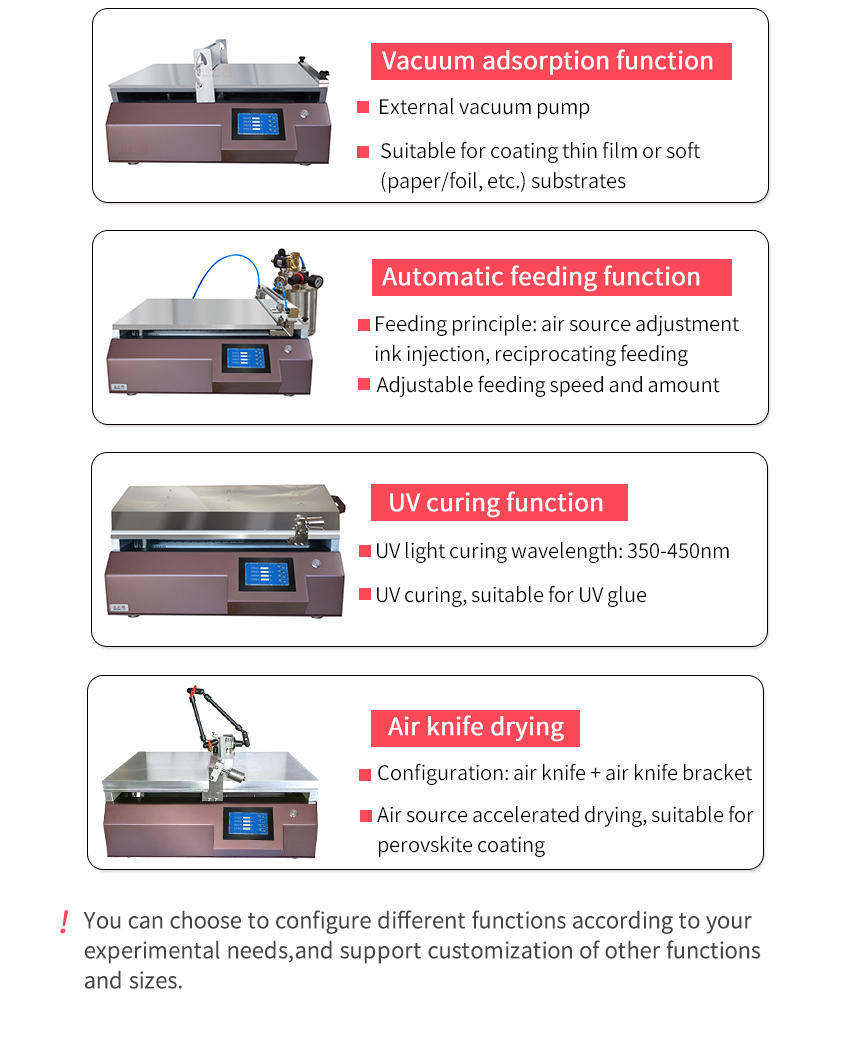

| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
zy TBJ-B4-XB Automatic Film Applicator Packing list
Film Applicator X1, Imported bar X1, China bar X1, Drawdown blade X1, Product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
